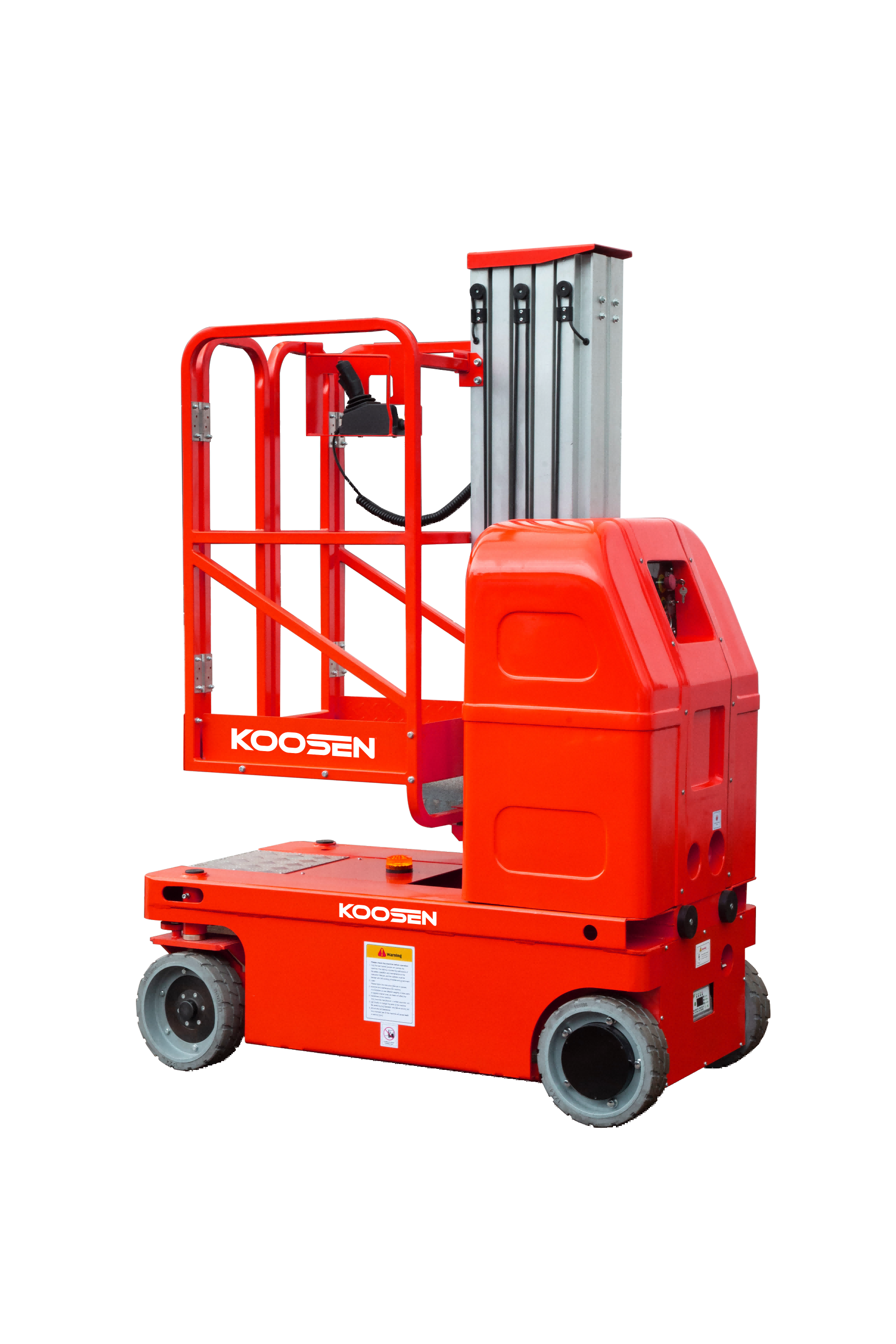

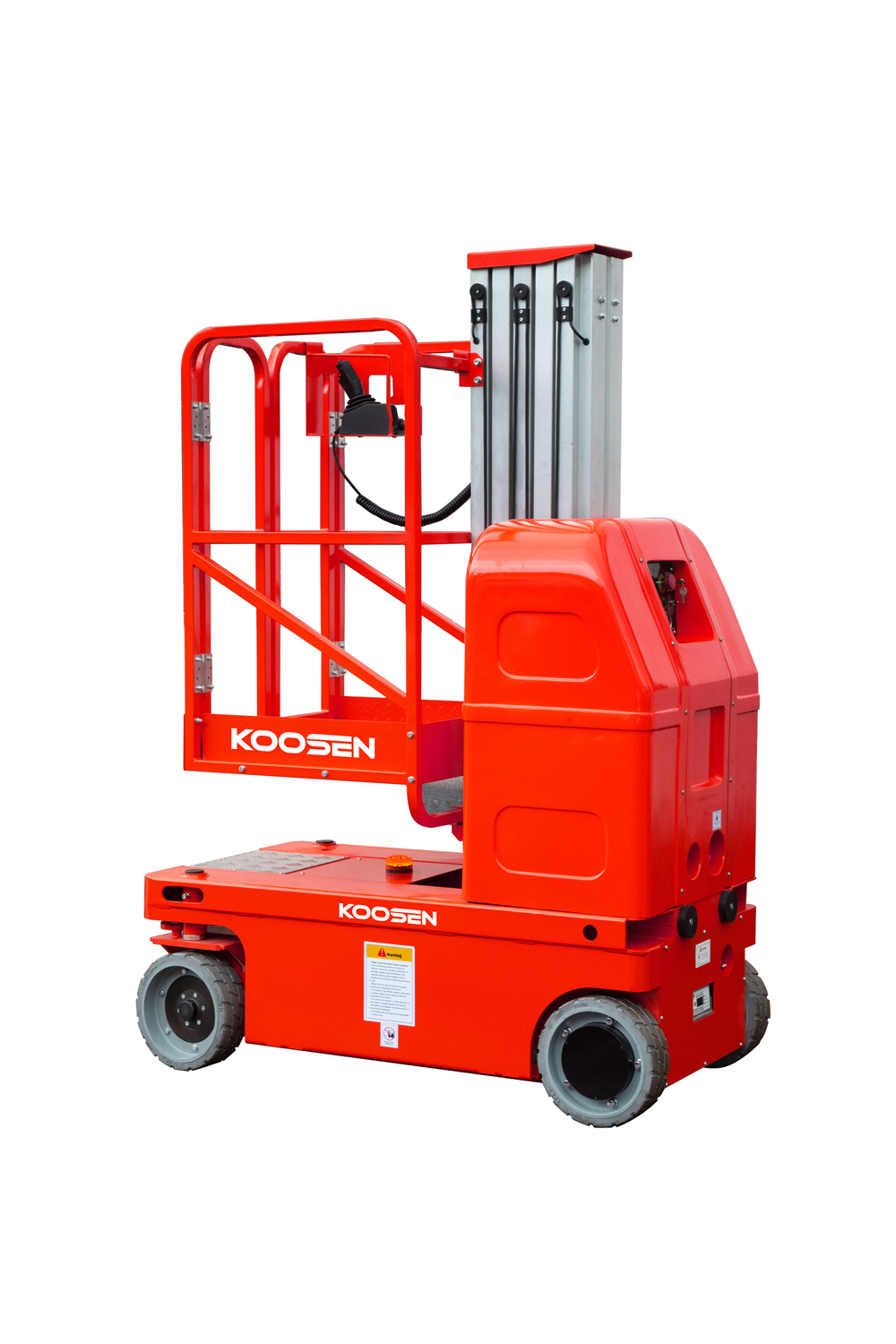

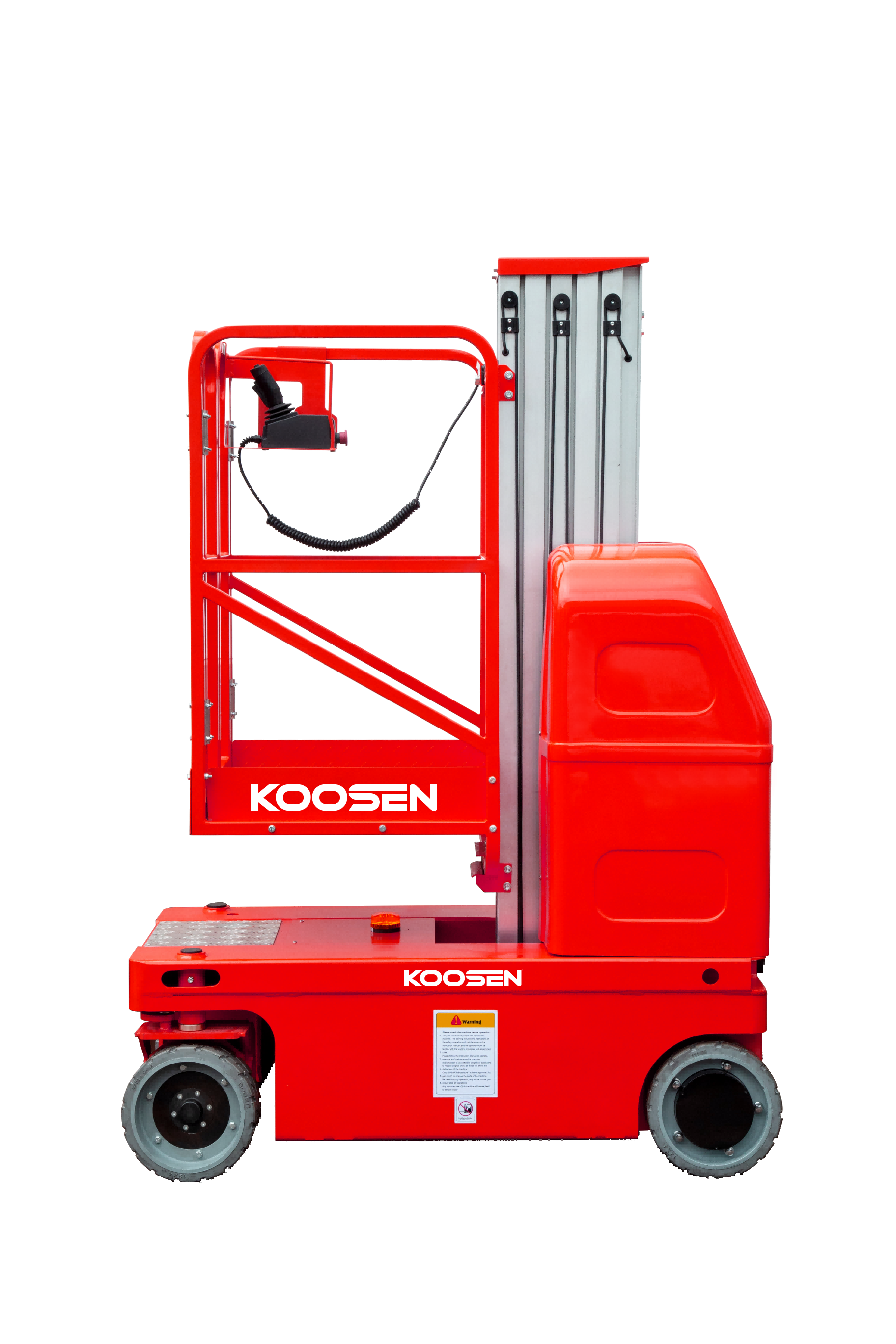

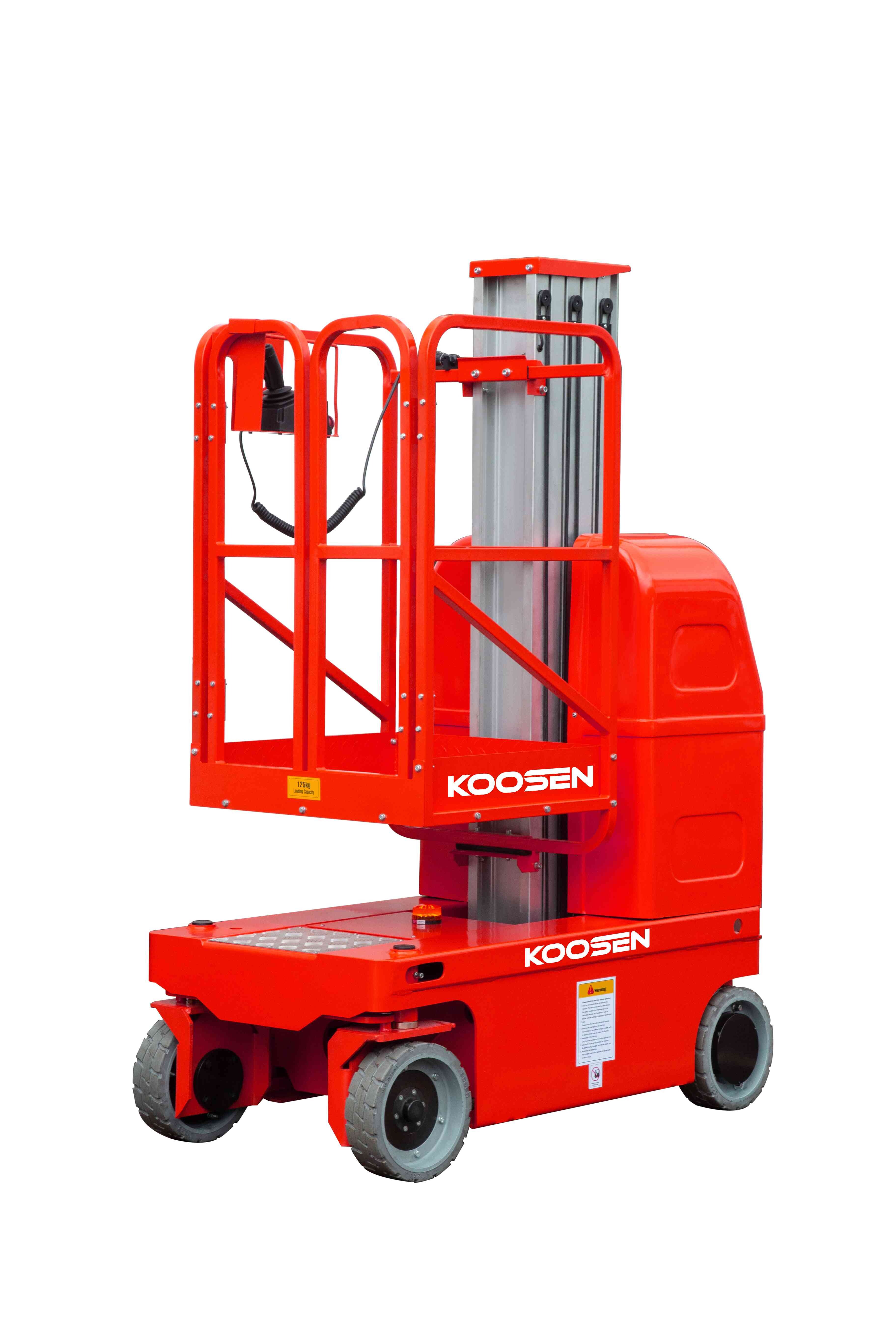

Self Propelled Telescopic lift AMWP-1000

For product pricing, customization, or other inquiries:

CONTACT US

Share to:

Description
Download






Self-Propelled Telescopic Lift - Hydraulic Steering


The Self-Propelled Telescopic Lift with Hydraulic Steering is an advanced and versatile solution designed for efficient access to elevated work areas in construction, maintenance, and industrial applications. Combining the convenience of self-propulsion with precise hydraulic steering, this lift offers exceptional maneuverability and operational control.


Key Features:

Hydraulic Steering: Advanced hydraulic steering system allows for smooth and precise maneuvering, enhancing operator control and safety.

Self-Propelled Design: Powered by a robust engine or electric motor, the lift can move independently, reducing reliance on external towing or positioning equipment.

Stable Platform: Equipped with stabilizing outriggers or leveling systems, ensuring stability and safety while working at height.

Safety Features: Includes safety rails, emergency lowering system, and intuitive controls for enhanced operator safety and comfort.

Versatile Applications: Suitable for a variety of tasks including construction, maintenance, installation, and repair work in both indoor and outdoor environments.


Applications:


Construction Sites

Building Maintenance

Industrial Facilities

Facility Management

Utility and Telecom Infrastructure


The Self-Propelled Telescopic Lift with Hydraulic Steering combines robust construction with advanced steering and safety features, making it an indispensable tool for accessing elevated work areas with efficiency and safety.



Specification

Size


ModelAMWP5.0-1000AMWP6.0-1000AMWP7.5-1000
Working Height7.00m8.00m9.50m
Platform Floor Height5.00m6.00m7.50m
Overall Length1.45m1.50m1.50m
Overall Width0.76m0.76m0.76m
Overall Height1.98m2.10m2.10m
Platform Size0.76m×0.70m0.76m×0.70m0.76m×0.70m
Ground Clearance(Stowed/Raised)0.05m/0.019m0.06m/0.019m0.06m/0.019m
Wheel Base1.19m1.19m1.19m
Performance


ModelAMWP5.0-1000AMWP7.5-1000AMWP7.5-1000
S.W.L125kg125kg125kg
Max. Occupants111
Turning Radius000
Travel Speed(Stowed)3km/h3km/h3km/h
Travel Speed(Raised)0.5km/h0.5km/h0.5km/h
Up/Down Speed28/27sec32/27sec40/32sec
Gradeability25%25%25%
Maximum Slope1.5°/2.5°1.5°/2.5°1.5°/3°
Tyres(Drive Motors )Φ230×80mmΦ230×80mmΦ305×100mm
Tyres(Front Wheels)Φ230×80mmΦ230×80mmΦ305×100mm
Power


ModelAMWP5.0-1000AMWP7.5-1000AMWP7.5-1000
Drive Motors2×24VDC/0.5kW2×24VDC/0.5kW2×24VDC/0.5kW
Lifting Motor24VDC/0.8kW24VDC/0.8kW24VDC/0.8kW
Betteries2×12V/100Ah2×12V/100Ah2×12V/100Ah
Integrated Charger24V/20A24V/20A24V/20A
Weight


ModelAMWP5.0-1000AMWP7.5-1000AMWP7.5-1000
Weight Standard Platform1050kg1080kg1180kg
