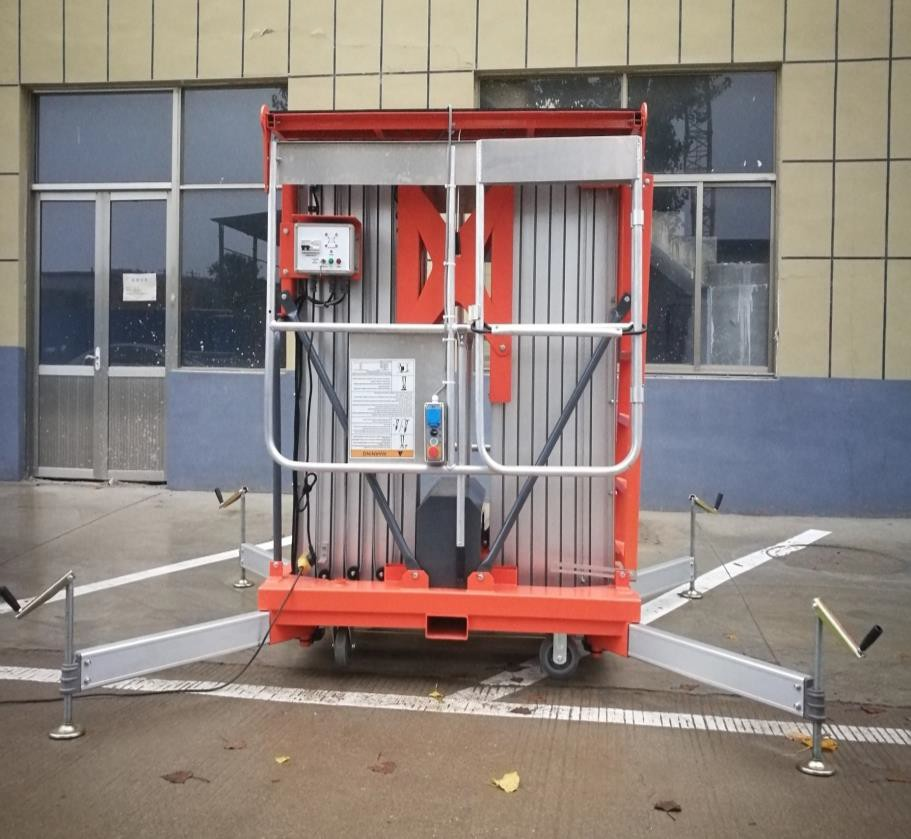

Double Masts Vertical Lift GTWY-2000

For product pricing, customization, or other inquiries:

CONTACT US

Share to：

Description




Specification



GTWY-2000
Double Masts Vertical lift(Pin Outrigger)
ModelGTWY6-2000GTWY8-2000GTWY10-2000GTWY12-2000GTWY14-2000GTWY16-2000
Platform
Max. Working Height8m10m12.4m14m16m18m
Max. Platform Height6m8m10.4m12m14m16m
Loading Capacity250kg250kg250kg200kg200kg150kg
Platform Dimension1.45m x 0.7m1.45m x 0.7m1.45m x 0.7m1.45m x 0.7m1.8m x 0.7m1.8m x 0.7m
Overall Dimension
Overall Height1.99m1.99m1.99m1.99m2.68m2.68m
Overall Width0.81m0.81m0.81m0.81m0.81m0.81m
Overall Length1.45m1.45m1.45m1.45m1.88m1.88m
Outrigger coverage2.45m x 1.75m2.45m x 1.75m2.45m x 2.1m2.45m x 2.1m2.7m x2.8m2.7m x2.8m
Weight
AC610kg645kg715kg750kg892kg996kg
DC660kg695kg765kg800kg942kg1046kg
Power
AC380V/220V/110V380V/220V/110V380V/220V/110V380V/220V/110V380V/220V/110V380V/220V/110V
AC Motor1.5KW1.5KW1.5KW1.5KW1.5KW1.5KW
DC2x12V2x12V2x12V2x12V2x12V2x12V
DC motor2.2KW2.2KW2.2KW2.2KW2.2KW2.2KW
Charger12V/15A12V/15A12V/15A12V/15A12V/15A12V/15A
