Self Propelled

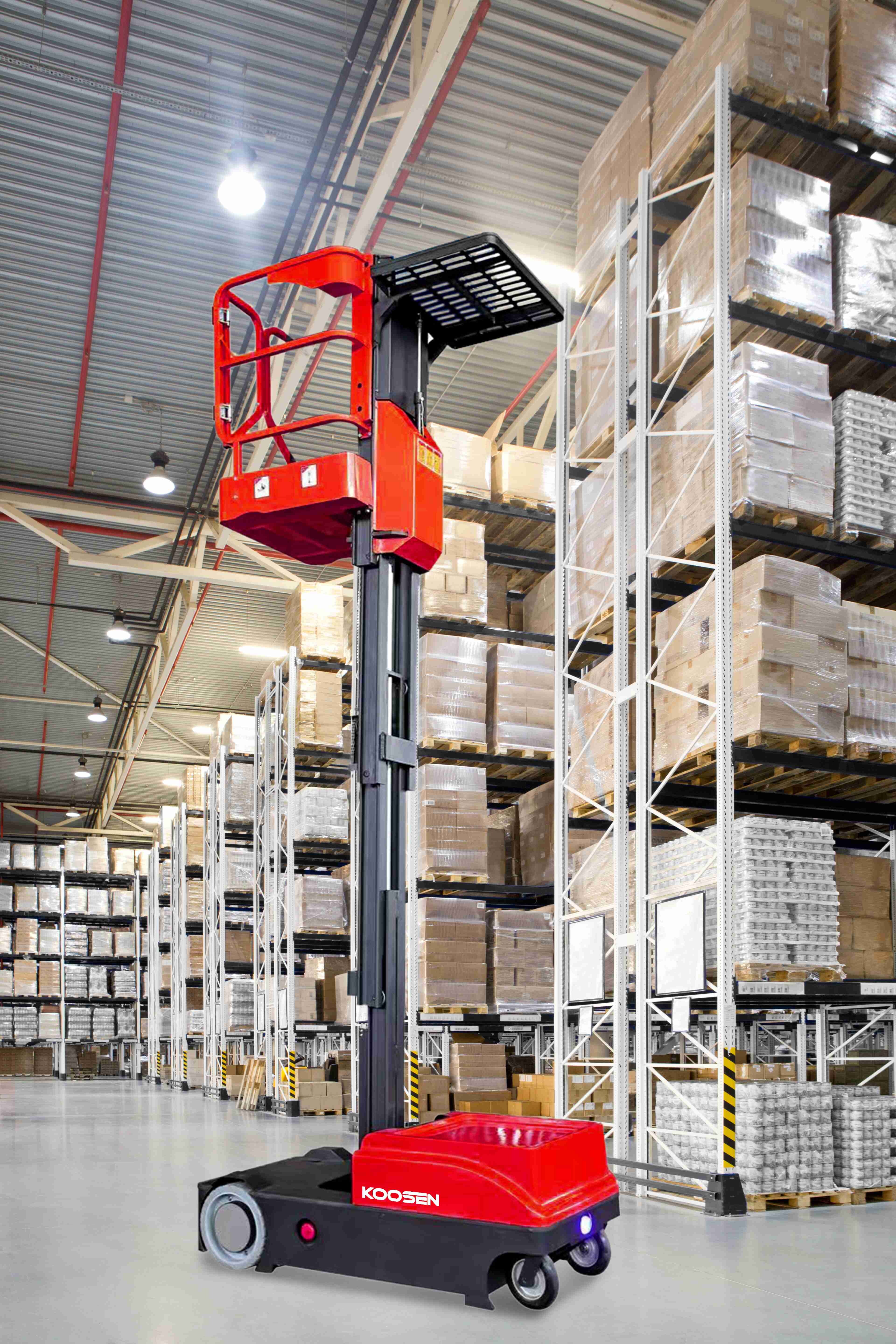

Material aerial order picker

For product pricing, customization, or other inquiries:

CONTACT US

Share to:

Description

套筒升降机 (4).jpg

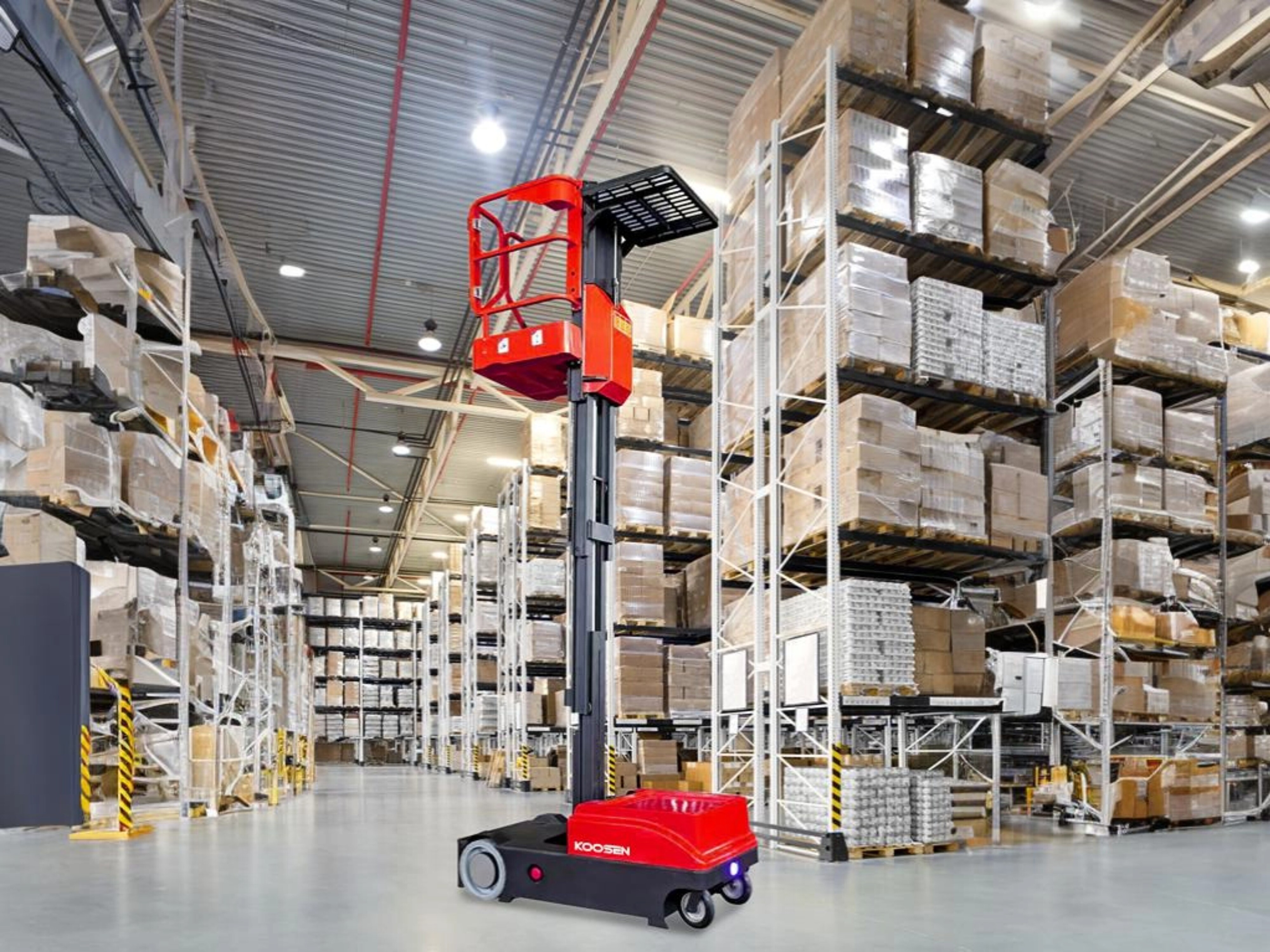

Self-Propelled Electric Order Picker


The Self-Propelled Electric Order Picker is a versatile and efficient solution designed to streamline order picking and inventory management operations in warehouses and distribution centers. With its advanced electric propulsion system, this order picker enhances productivity while ensuring operator comfort and safety.


Key Features:


Efficient Electric Propulsion: Powered by a reliable electric motor, the order picker offers quiet operation and zero emissions, making it suitable for indoor use without compromising environmental standards.

Enhanced Maneuverability: Self-propelled design allows for easy navigation through aisles and storage areas, maximizing efficiency and reducing picking time.

Versatile Lifting Capabilities: Adjustable lift height enables operators to access items stored at various levels, improving accessibility and optimizing storage space utilization.

Safety and Stability: Equipped with safety features such as non-slip platform, guardrails, and emergency stop buttons, ensuring a secure working environment at elevated heights.

User-Friendly Controls: Intuitive control interface facilitates precise positioning and smooth operation, reducing operator fatigue and enhancing workflow efficiency.

Durable Construction: Built with robust materials and components, the order picker is designed for durability and minimal maintenance, ensuring long-term reliability and cost-effectiveness.


Applications:


Order Picking and Fulfillment

Inventory Management

Retail and Wholesale Distribution Centers

E-commerce Fulfillment Facilities

Manufacturing and Production Environments


The Self-Propelled Electric Order Picker combines advanced technology with ergonomic design, providing a versatile and efficient solution for optimizing warehouse logistics and enhancing overall operational efficiency.



Specification



Size

ModelAWPM3.0-4000AWPM4.0-4000
Working Height5.00m6.00m
Platform Floor Heigh3.00m4.00m
Load Tray Lifting Height0.48m0.48m
Mini platform Height0.36m0.36m
Overall Length1.48m1.48m
Overall Width0.75m0.75m
Overall Height1.46m1.78m
Platform Size0.50m×0.73m0.50m×0.73m
Load Tray0.55m*0.62m0.55m*0.62m
Load Deck0.55m*0.73m0.55m*0.73m
Ground Clearance0.05m0.05m
Ground Clearance
(Pothole Protection)
0.015m0.015m
Performance

S.W.L (Platform) 136kg 136kg
S.W.L(Load Tray)90kg90kg
S.W.L(Load Deck)110kg110kg
Max. Occupants11
Turning Radius0-1500mm0-1500mm
Travel Speed(Stowed)4.0km/h4.0km/h
Travel Speed(Raised)0.8km/h0.8km/h
Up/Down Speed 20/17 sec 22/19 sec
Gradeability15-20%15-20%
Tyres(Drive Motors)305×100mm305×100mm
Tyres(Front Wheels)200×50mm200×50mm
Power

Drive Motors2×24VDC/0.3kw2×24VDC/0.3kw
Lifting Motor24VDC/0.5kw24VDC/0.5kw
Betteries2×12V/100Ah2×12V/100Ah
Integrated Charger24V/15A24V/15A
Weight

Weight790kg930kg


套筒升降机 (4)_副本w.jpg


Standard equipment

● Proportional controls

● Self-closing gate on platform

● Drivable at full height

● Non-marking tyre

● 2WD

● Automatic brake system

● Emergency lowering system

● Emergency stop button

● Cylinder holding valve

● Onboard diagnostic system

● Tilt sensor with alarm

● All motion alarm

● Horn

● Hour meter

● Forklift pockets

● Charger protection

● Flashing beacon

● Automatic Pothole protecton

Options

● Overload sensor

● Platform working lights

● Chassis protect cover
