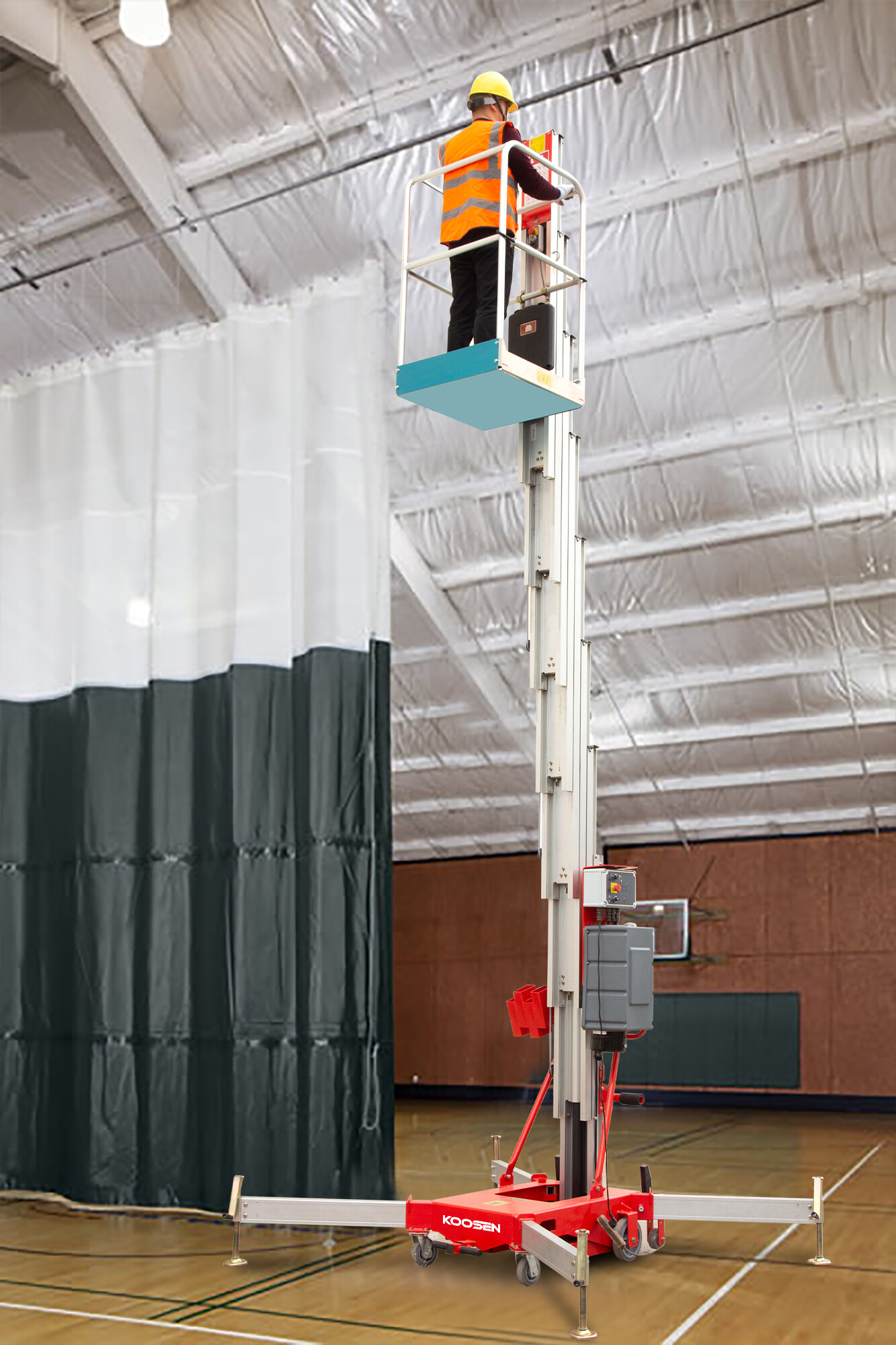

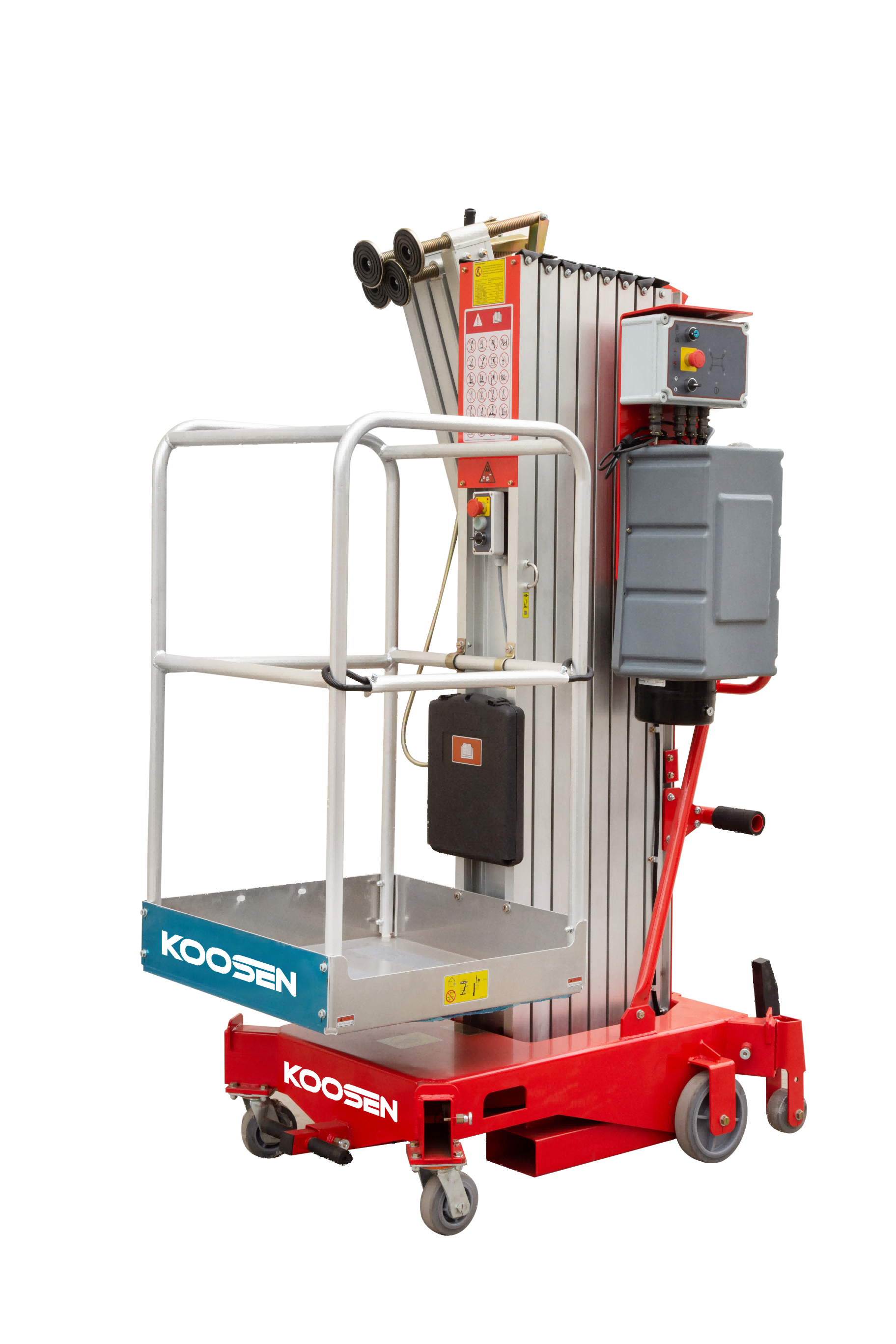

Single Mast Vertical Lift GTWY-1000

Single Mast Vertical Lift GTWY-1000

For product pricing, customization, or other inquiries:

CONTACT US

Share to:

Description



Specification



Single Mast Vertical Lift(Pin Outrigger)
ModelGTWY5-1000GTWY6-1000GTWY8-1000GTWY9-1000GTWY10-1000GTWY12-1000
Platform
Max. Working Height6.7m8.2m9.8m11.2m12.4m14m
Max. Platform Height4.7m6.2m7.8m9.2m10.4m12m
Loading Capacity150kg150kg150kg150kg136kg120kg
Platform Dimension0.67m x 0.66m0.67m x 0.66m0.67m x 0.66m0.67m x 0.66m0.67m x 0.66m0.67m x 0.66m
Overall Dimension
Overall Height1.99m1.99m1.99m1.99m1.99m2.68m
Overall Width0.74m0.74m0.74m0.74m0.74m0.81m
Overall Length1.24m1.24m1.36m1.4m1.42m1.46m
Outrigger coverage1.7m x 1.7m1.7m x 1.7m1.6m x 1.6m1.7m x 1.7m1.9m x1.7m2.3m*1.9m
Weight
AC300kg320kg345kg365kg385kg460kg
DC335kg355kg380kg400kg420kg495kg
Power
AC380V/220V/110V380V/220V/110V380V/220V/110V380V/220V/110V380V/220V/110V380V/220V/110V
AC Motor0.75KW0.75KW0.75KW0.75KW0.75KW0.75KW
DC12V12V12V12V12V12V
DC motor1.5KW1.5KW1.5KW1.5KW1.5KW1.5KW
Charger12V/15A12V/15A12V/15A12V/15A12V/15A12V/15A

Parts:

Power Unit: Jiangsu Vibo

Masts: 6063 T6 Aviation Aluminium,thickness:6.5mm

Cable: Durable cable, acid-resisting,alkali- resisting,mechanical resisting

Electric parts: Schneider Outrigger: T6005 T5 Chassis: 6mm Q235 Steel Cylinder seal: NOK

Conduction parts in masts: self-lubrication PTFE

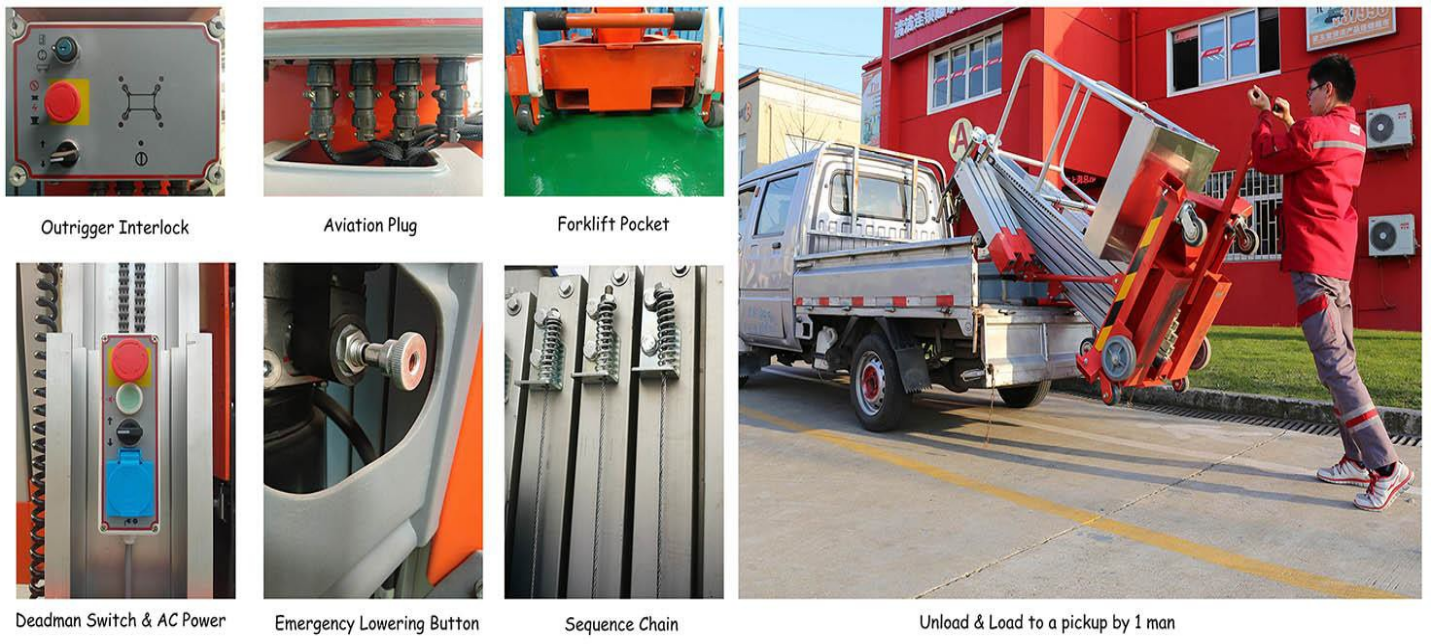

Features:

Outrigger interlock: Platform will not raise until

outriggers are installed, 4 LED lights turn on.

i Deadman switch: need to operate by 2 hand to avoid ncorrect operation.

Cylinder holding valve

AC power on platform

Truck loading system: Machine can be load onto/off trucks by 1 man.

Forklift socket

Aluminium inserting outriggers Emergency lowering system Emergency stop button

Leveling bubble



Lighting point for Sales( European and USA standard)
