Self-propelled lift Platform

Self Propelled Telescopic lift AMWP-2000

For product pricing, customization, or other inquiries:

CONTACT US

Share to:

Description

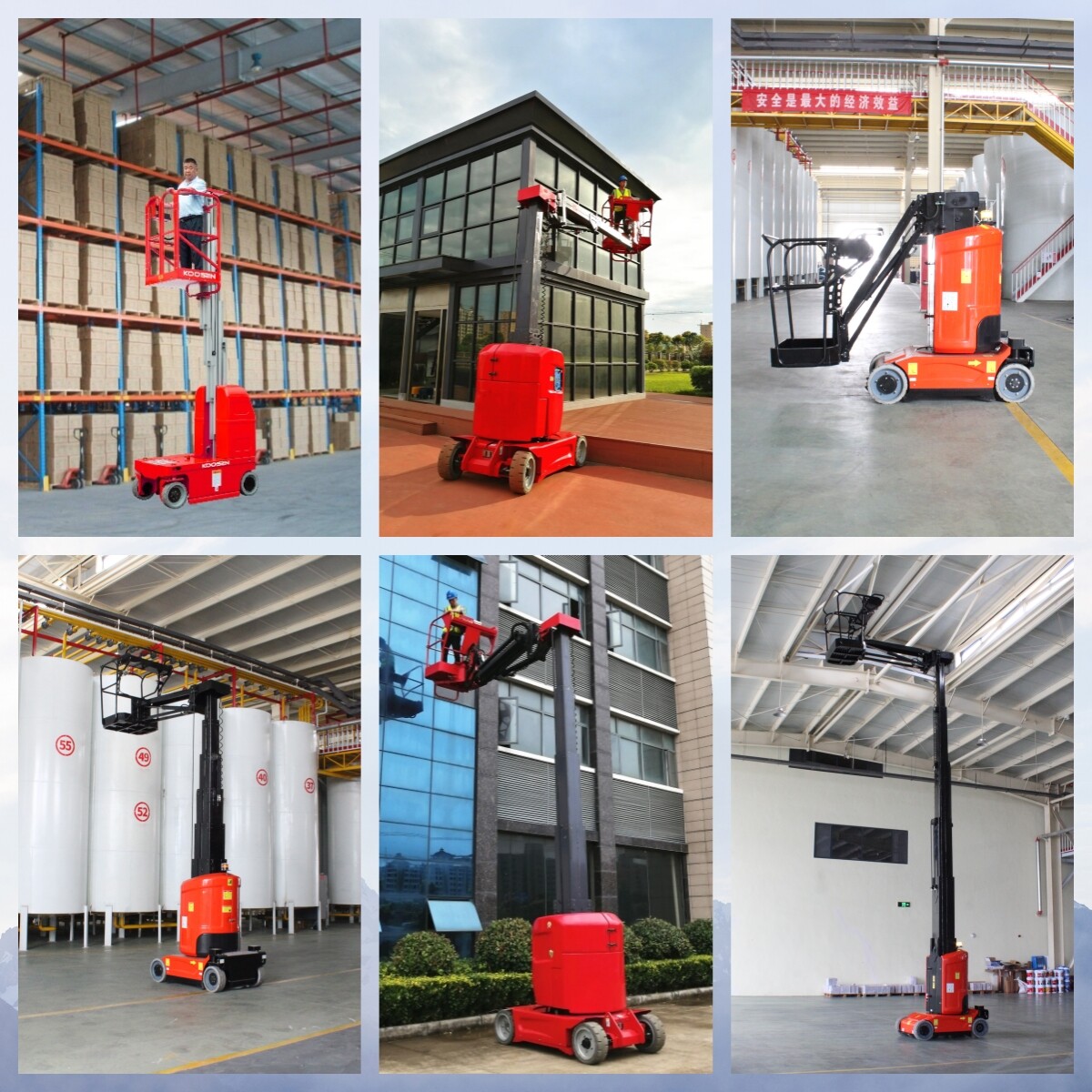

Self-Propelled Telescopic Lift - Hydraulic Steering


The Self-Propelled Telescopic Lift with Hydraulic Steering is an advanced and versatile solution designed for efficient access to elevated work areas in construction, maintenance, and industrial applications. Combining the convenience of self-propulsion with precise hydraulic steering, this lift offers exceptional maneuverability and operational control.


Key Features:

Hydraulic Steering: Advanced hydraulic steering system allows for smooth and precise maneuvering, enhancing operator control and safety.

Self-Propelled Design: Powered by a robust engine or electric motor, the lift can move independently, reducing reliance on external towing or positioning equipment.

Stable Platform: Equipped with stabilizing outriggers or leveling systems, ensuring stability and safety while working at height.

Safety Features: Includes safety rails, emergency lowering system, and intuitive controls for enhanced operator safety and comfort.

Versatile Applications: Suitable for a variety of tasks including construction, maintenance, installation, and repair work in both indoor and outdoor environments.


Applications:


Construction Sites

Building Maintenance

Industrial Facilities

Facility Management

Utility and Telecom Infrastructure


The Self-Propelled Telescopic Lift with Hydraulic Steering combines robust construction with advanced steering and safety features, making it an indispensable tool for accessing elevated work areas with efficiency and safety.



Specification



Size

ModelAMWP7.5-2000AMWP9.0-2000
Working Height9.50m11.00m
Platform Floor Height7.50m9.00m
Overall Length1.56m1.56m
Overall Width1.0m1.0m
Overall Height2.15m2.15m
Platform Size1.00m×0.70m1.00m×0.70m
Ground Clearance(Stowed/Raised)0.06m/0.019m0.06m/0.019m
Wheel Base1.25m1.25m
Performance

ModelAMWP7.5-2000AMWP9.0-2000
S.W.L150kg150kg
Max. Occupants11
Turning Radius00
Travel Speed(Stowed)3km/h3km/h
Travel Speed(Raised)0.5km/h0.5km/h
Up/Down Speed40/32sec49/38sec
Gradeability15%15%
Maximum Slope1.5°/3°1.5°/3°
Tyres(Drive Motors )Φ305×100mmΦ305×100mm
Tyres(Front Wheels)Φ305×100mmΦ305×100mm
Power

ModelAMWP7.5-2000AMWP9.0-2000
Drive Motors2×34VDC/0.5kW2×34VDC/0.5kW
Lifting Motor24VDC/2kW24VDC/2kW
Betteries2×12V/100Ah2×12V/100Ah
Integrated Charger24V/20A24V/20A
Weight

ModelAMWP7.5-2000AMWP9.0-2000
Weight Standard Platform1260kg1500kg
