Self-propelled lift Platform

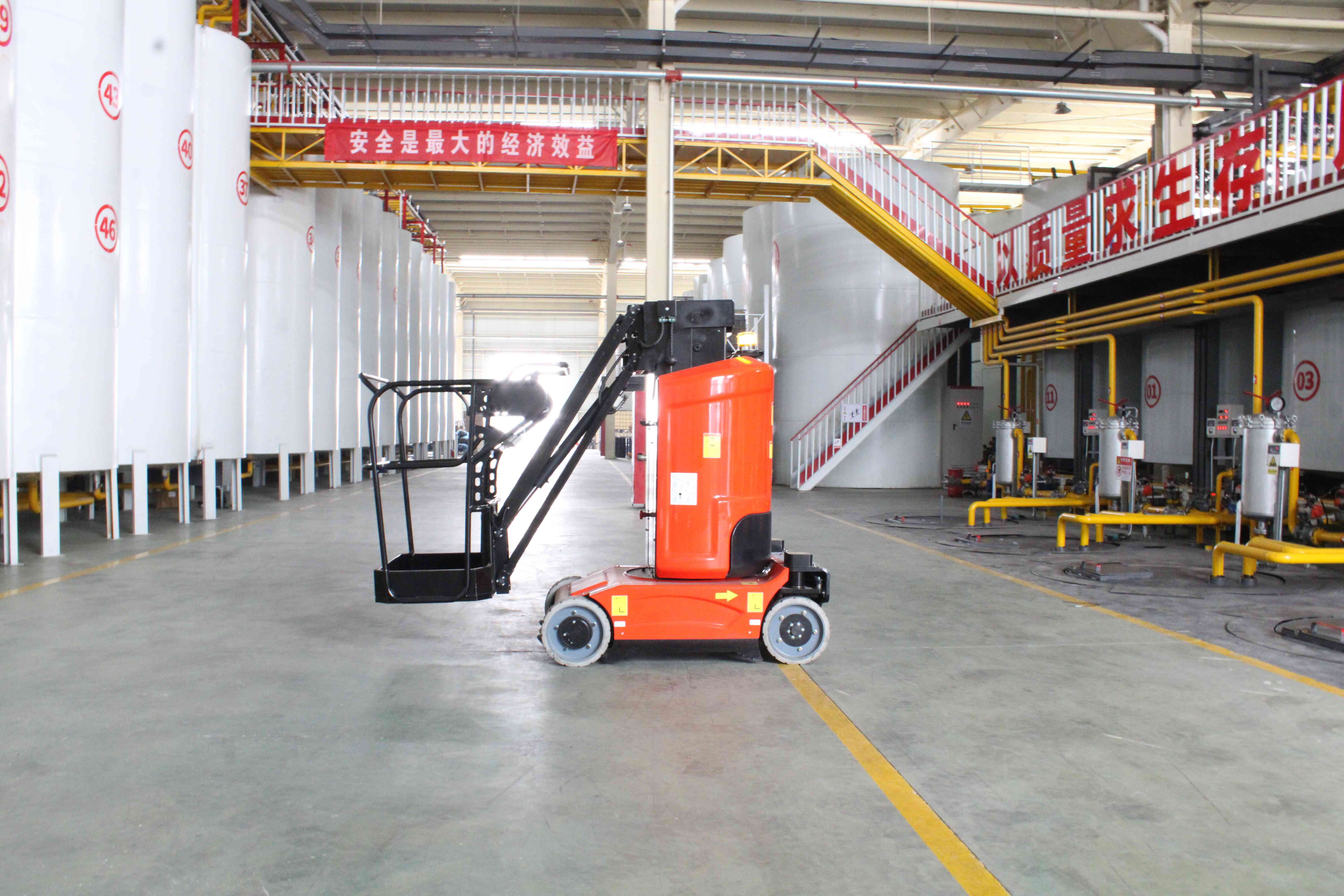

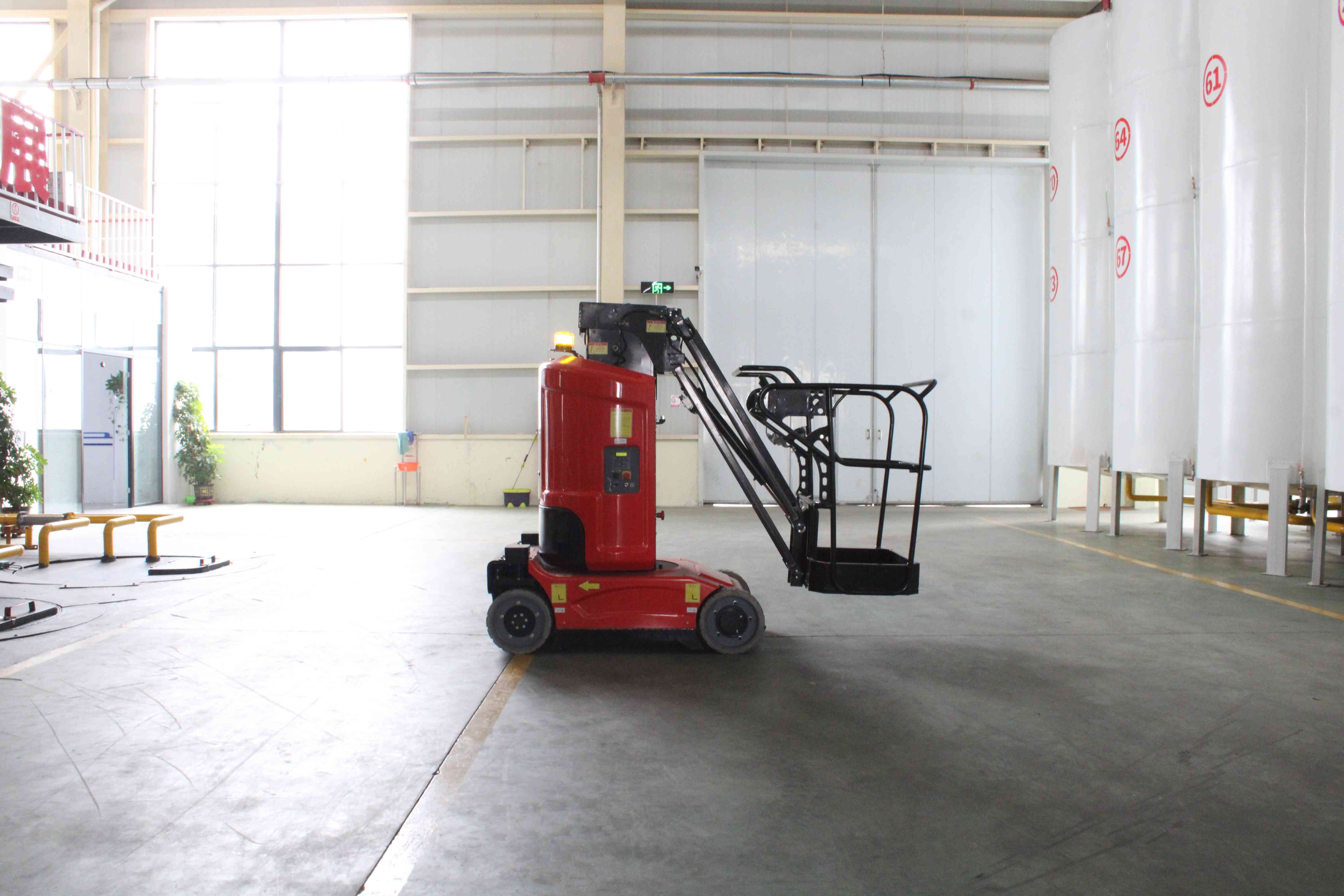

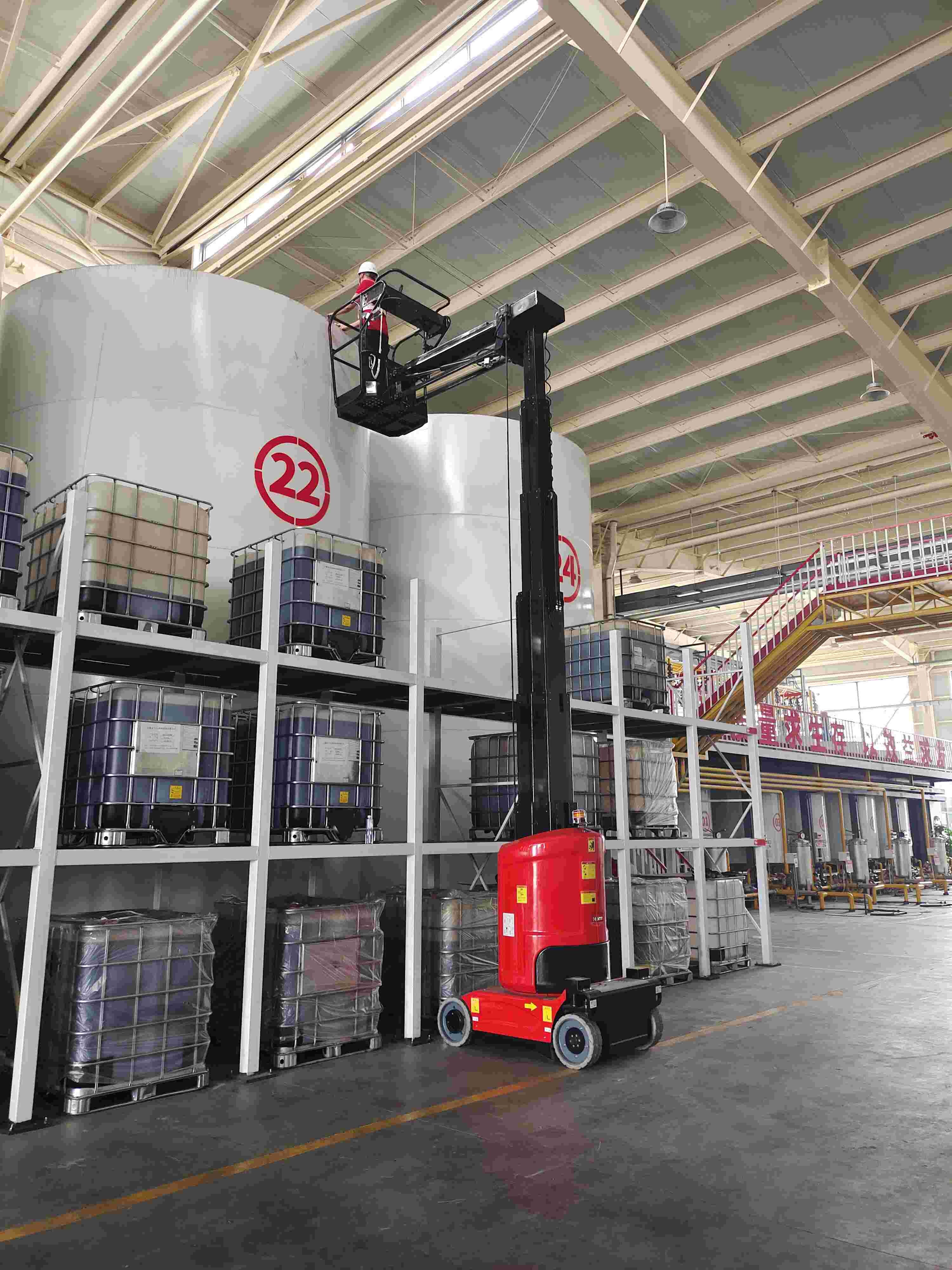

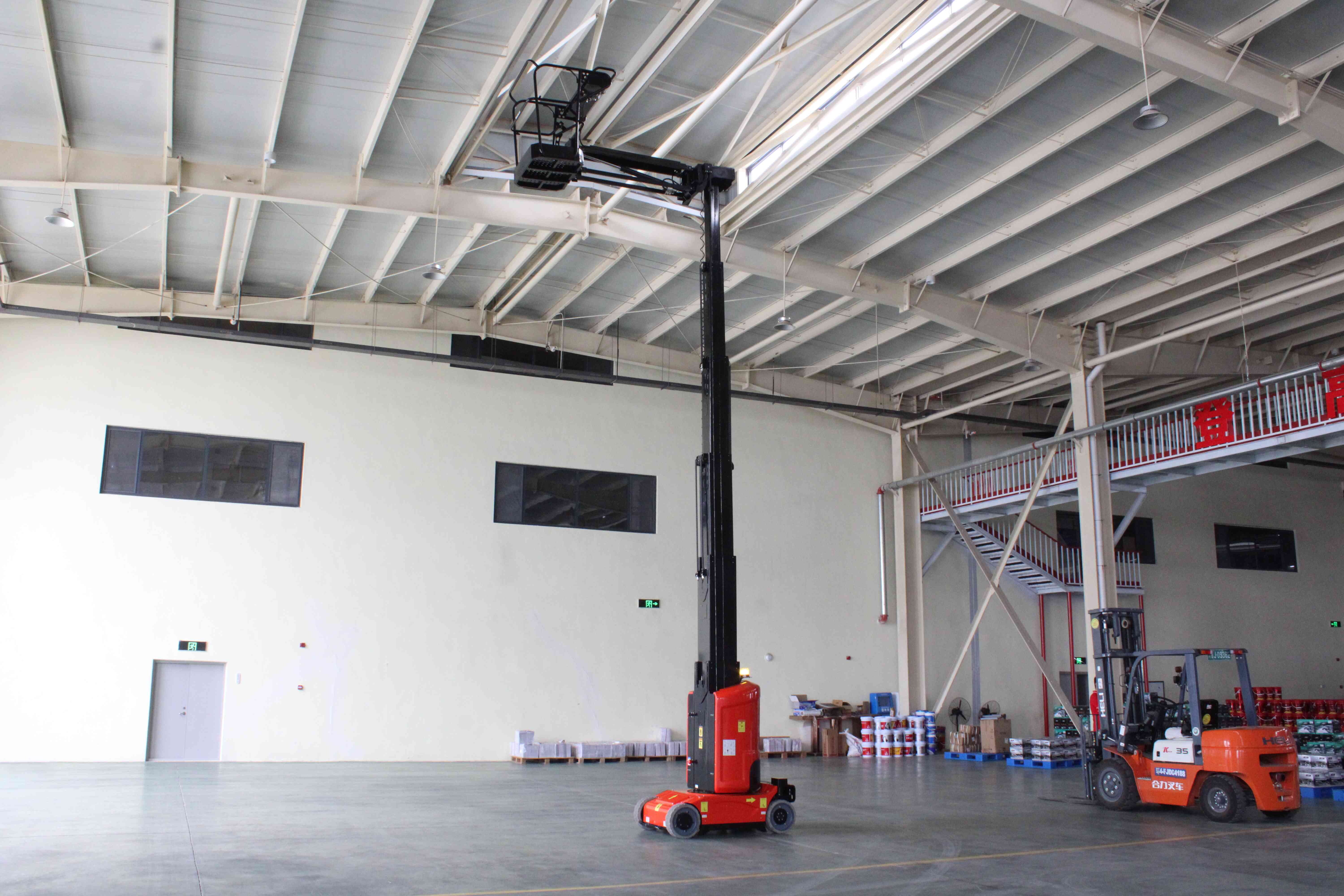

Self-propelled lift Platform AMWP11.2-4000

For product pricing, customization, or other inquiries:

CONTACT US

Share to:

Description


Self-Propelled Aerial Work Platform


The Self-Propelled Aerial Work Platform is a state-of-the-art access solution designed for a wide range of elevated tasks in construction, maintenance, and industrial applications. With its advanced self-propulsion capabilities, this platform provides unmatched mobility, efficiency, and safety, making it an essential tool for any job site.


Key Features:


Self-Propelled Mobility: Powered by a reliable electric or diesel engine, the platform can be easily moved and positioned without the need for external assistance, enhancing productivity and reducing setup time.

Versatile Reach: Adjustable height and outreach capabilities allow operators to access hard-to-reach areas safely and efficiently, making it ideal for a variety of tasks.

Robust Construction: Built with high-quality materials, the platform offers exceptional durability and stability, ensuring safe operation even in demanding environments.

Advanced Safety Features: Equipped with guardrails, emergency stop buttons, and automatic leveling systems, the platform ensures maximum operator safety at all times.

User-Friendly Controls: Intuitive control panels and ergonomic design make operation straightforward, reducing the learning curve and increasing efficiency.

Compact Design: The compact footprint allows for easy navigation through tight spaces and narrow aisles, making it suitable for both indoor and outdoor use.


Applications:


Construction and Building Projects

Facility Maintenance and Repairs

Industrial Installations

Warehousing and Inventory Management

Utility and Telecom Work


The Self-Propelled Aerial Work Platform combines advanced technology with practical design, offering a reliable and efficient solution for elevated work tasks in various environments.



Specification



ModelAMWP11.2-4000
Max. Working Height 11.2m
Max. Platform Height9.2m
Max. Horizontal Reach 3m
Up and Over Height 7.89m
Guardrail height 1.1m
Overall tength A 2.53m
Overall width B1.0m
Overall Height (stowed) C1.99m
Platform Dimension0.62*0.87m
Ground Clearance(Stowed) 70mm
Ground Clearance(Ralsed) 19mm
Wheelbase D1.22m
Loading Capacity 200kg
Occupants 2
Turing Radius(Inside/Outside) 0.23/1.65m
Turret Rotation 345°
Jib Movement 130°
Travel Speed(Stowed) 4.5km/h
Travel Speed(Raised) 0.5km/h
Up/Down Speed 42/38s
Max. Working Slope X-2.5°,Y-2.5°
Tyres Φ381*127mm
Driving Motor 24V/0.9KW
Lifting Motor 24V/3KW
Battery 24V/240AH
Charger 24V/30A
Weight2950KG
