GTWY16-2000/ GTWY14-2000/ GTWY13-2000/ GTWY12-2000/ GTWY11-2000/ GTWY9-2000/ GTWY8-2000
Main spec.Working height:16.00m/14.00m/13.00m/12.00m/11.00m/9.00m/8.00m
Main spec.S.W.L：156kg/200kg/250kg
Important featuresself-leveling outriggers with sensor system, LED display, safe and reliable
Important featuresTilt back frame to reduce the machine height and easy to transport
Important featuresTrunk loading device， convenient for loading alone
Important featuresAC/DC Power system optional

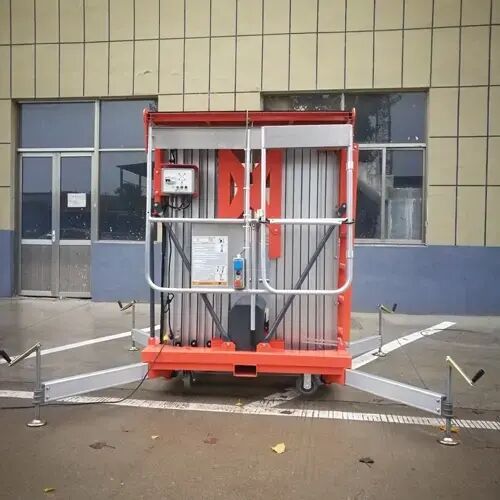

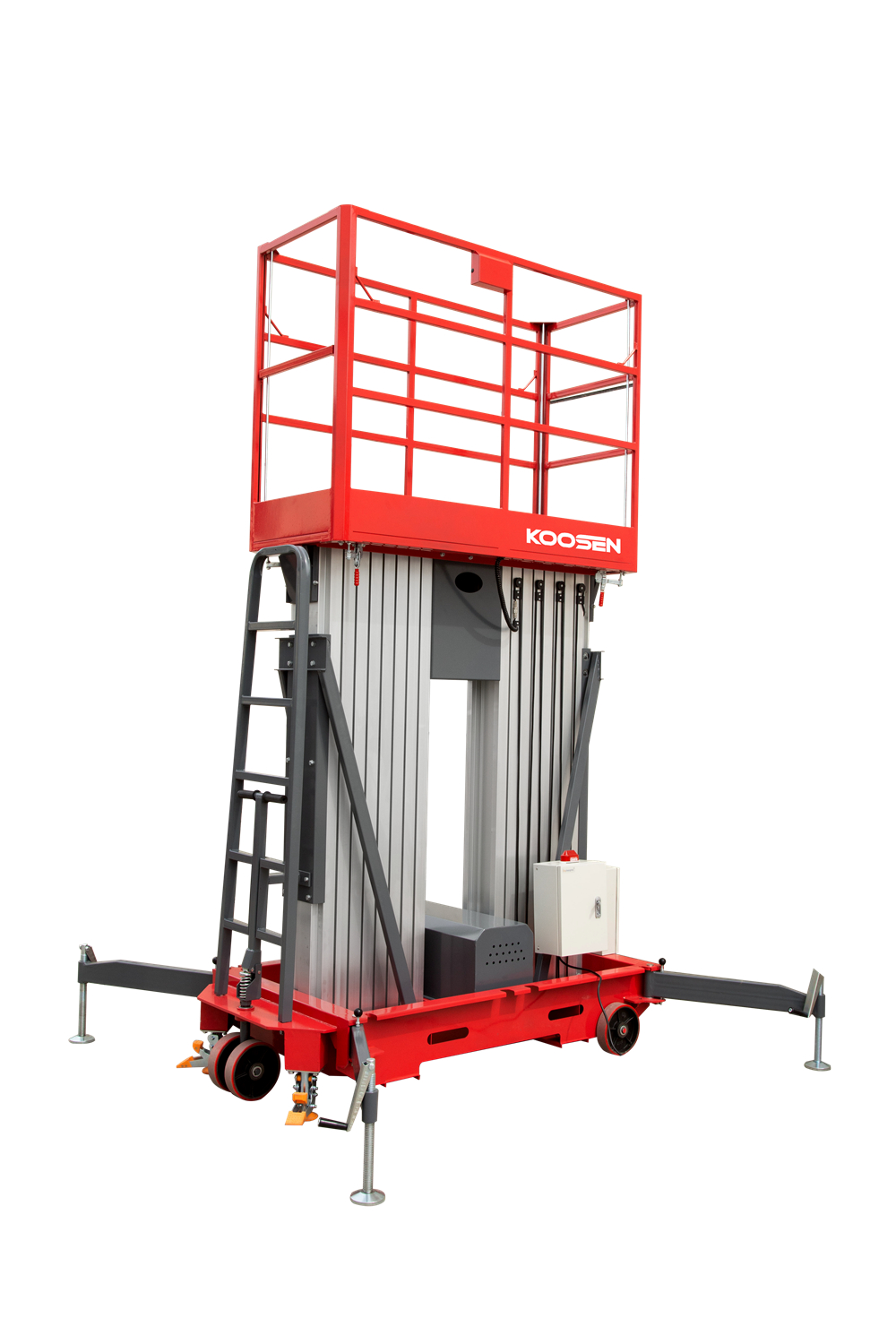

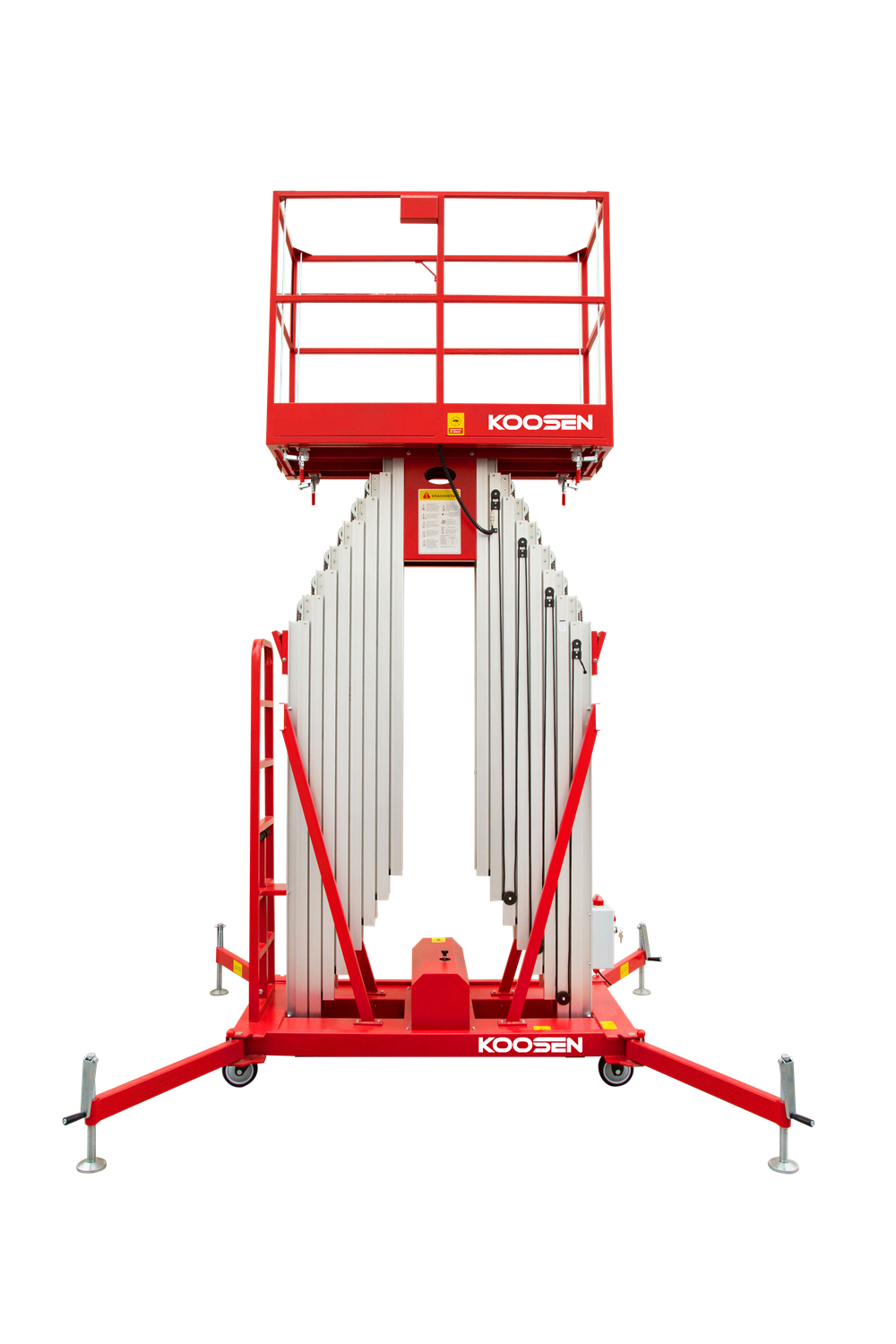

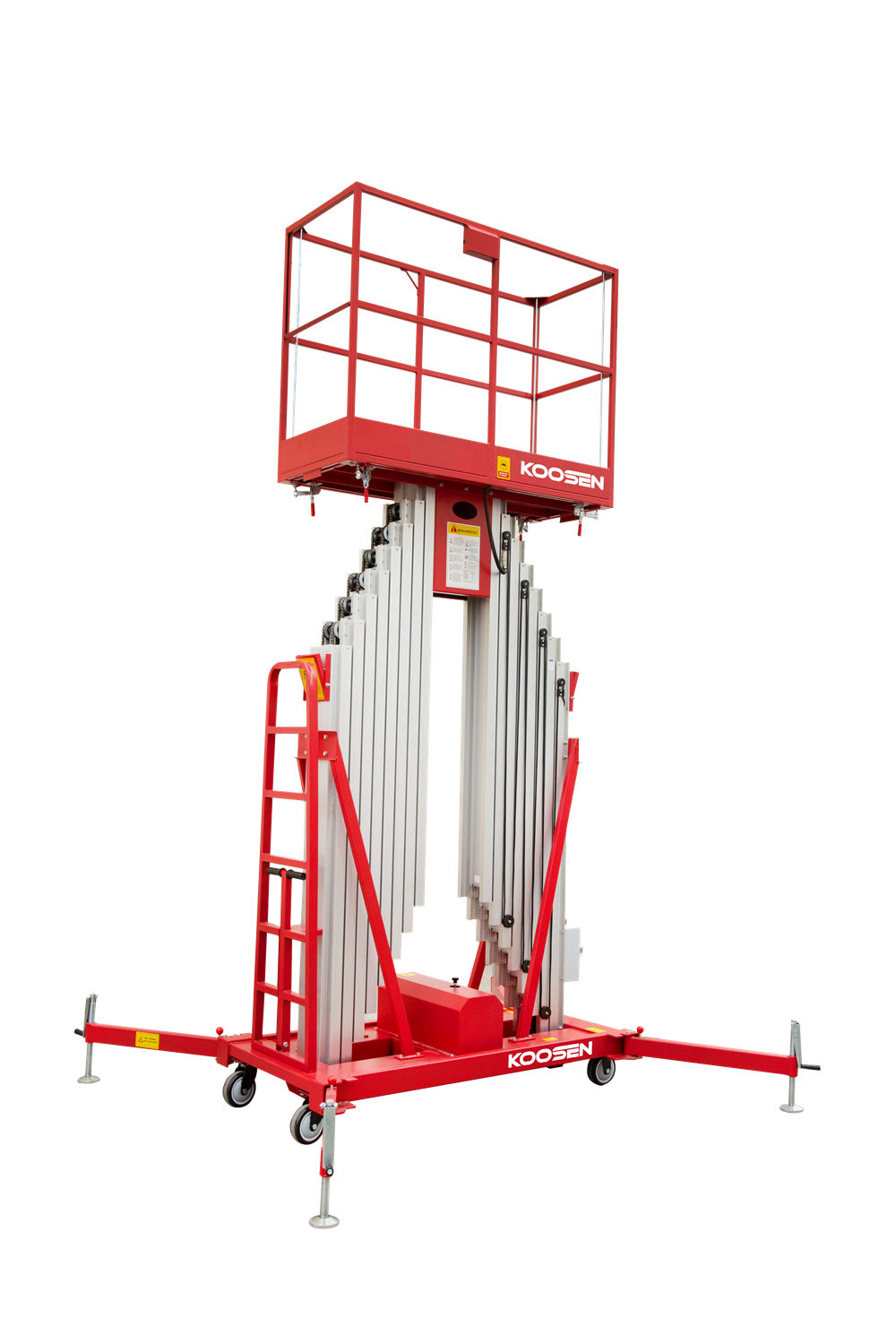

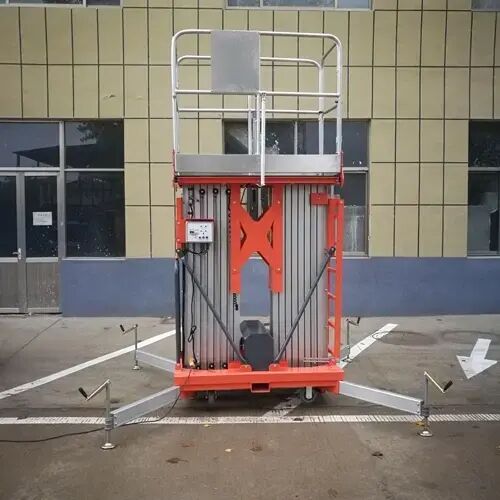

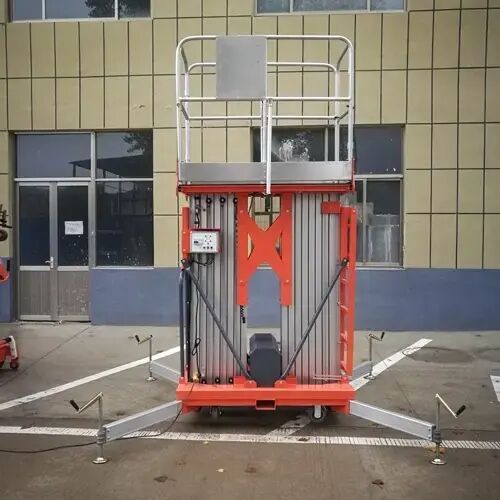

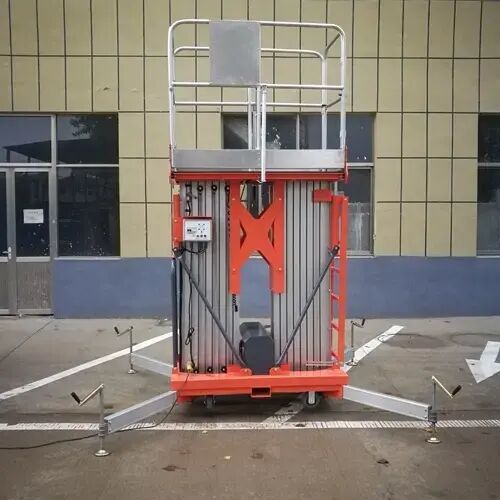

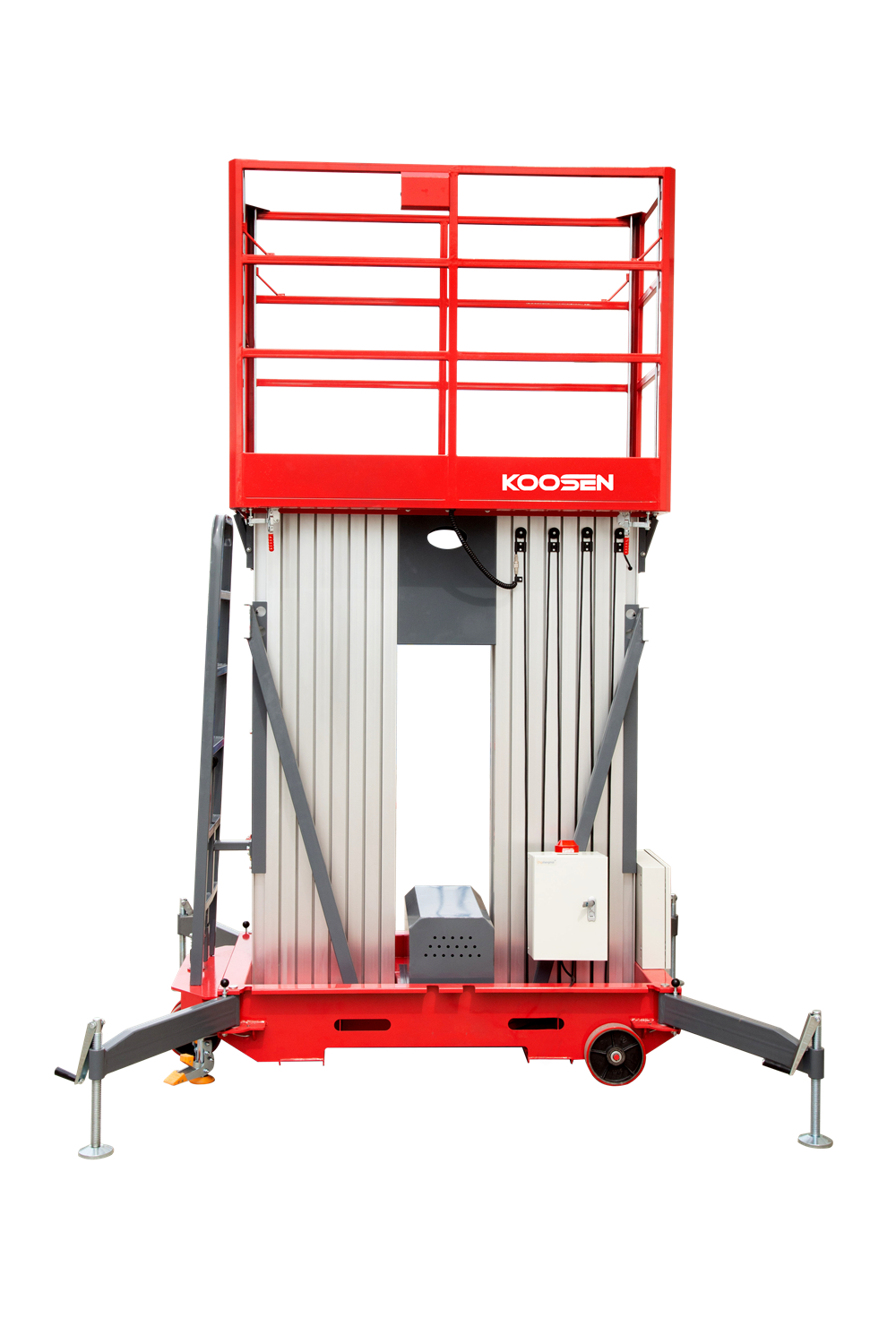

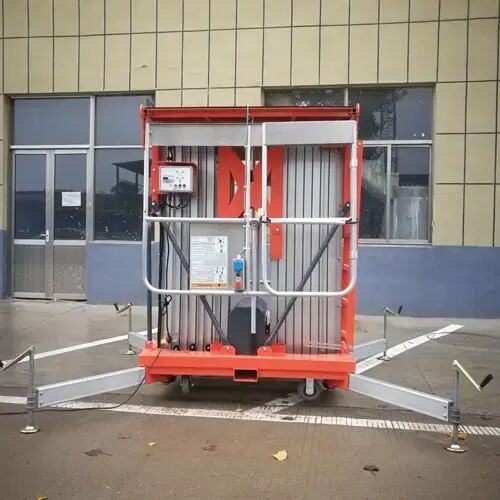

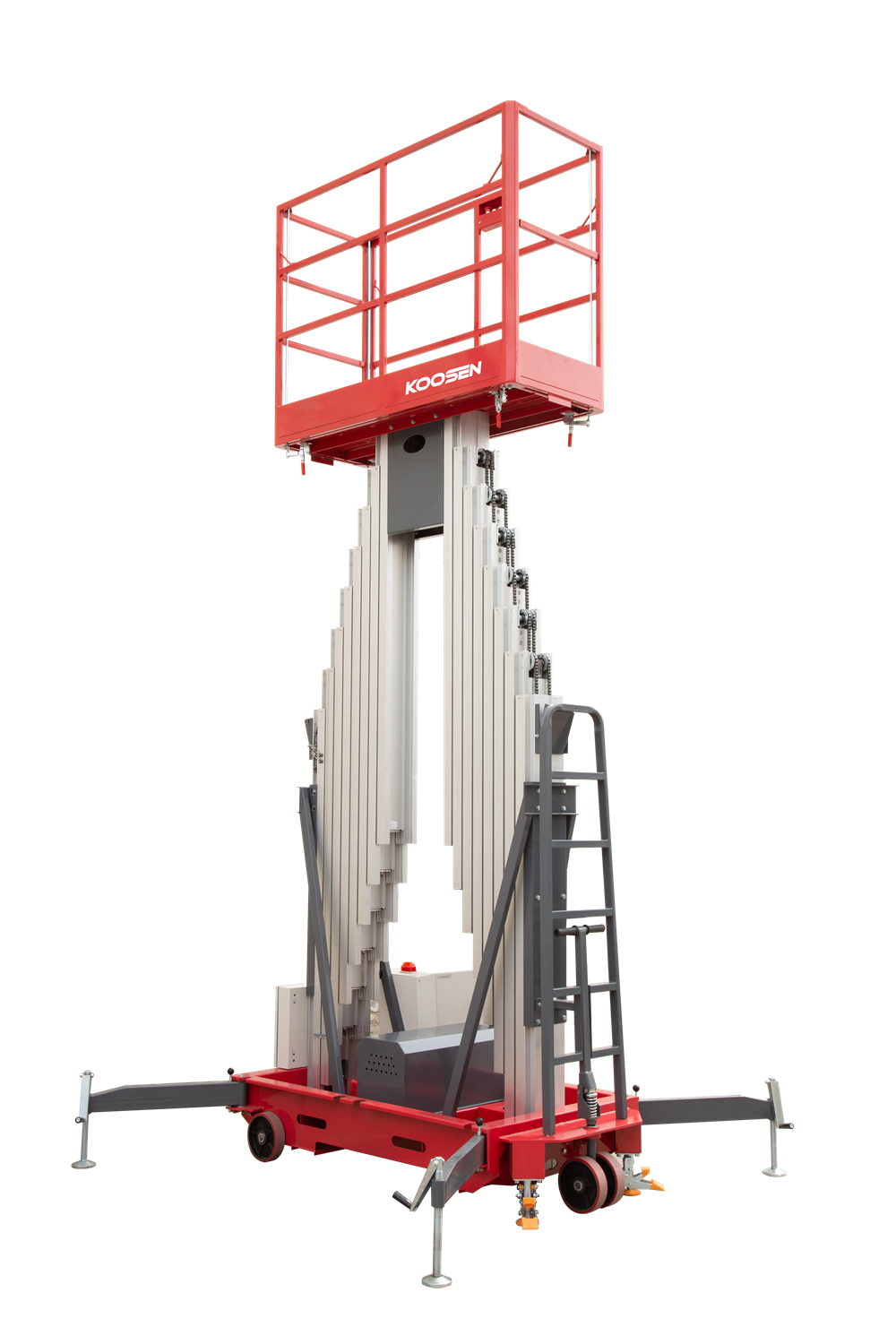

Mobile mast type aerial work platform (pin type)

For product pricing, customization, or other inquiries:

CONTACT US

Share to：

Description
Download
Size






ModelGTWY16-2000GTWY14-2000GTWY13-2000GTWY12-2000GTWY11-2000GTWY9-2000GTWY8-2000
Max.working heiget18.00m16.20m15.60m14.20m12.60m11.30m9.80m
Platform Floor Height16.00m14.20m13.60m12.20m10.60m9.30m7.80m
Overall Length(Stowed)1.97m1.97m1.97m1.97m1.88m1.88m1.88m
Overall Width0.81m0.90m0.90m0.90m0.81m0.81m0.81m
Overall Height(Stowed)2.68m2.74m2.50m2.30m1.99m1.99m1.99m
Outrigger Footprint(L/W)3.2/2.8m3.2/2.4m2.87/2.3m2.87/2.3m2.45/1.75m2.45/1.75m2.45/1.75m
Platform Size(Length/Wide)1.73m×0.70m1.73m×0.70m1.73m×0.70m1.73m×0.70m1.73m×0.70m1.73m×0.70m1.73m×0.70m
Ground Clearance0.05m0.05m0.05m0.05m0.05m0.05m0.05m
Performance






ModelGTWY16-2000GTWY14-2000GTWY13-2000GTWY12-2000GTWY11-2000GTWY9-2000GTWY8-2000
S.W.L150kg200kg200kg250kg250kg250kg250kg
Max. Occupants1112222
Up/Down Speed72/53sec66/47sec60/41sec54/35sec48/29sec42/23sec36/17sec
Tyres(Back Wheels)8in8in8in8in8in8in8in
Tyres(Front Wheels)5in5in5in5in5in5in5in
Power






ModelGTWY16-2000GTWY14-2000GTWY13-2000GTWY12-2000GTWY11-2000GTWY9-2000GTWY8-2000
Lifting Motor(AC)110-230VAC/1.5kW110-230VAC/1.5kW110-230VAC/1.5kW110-230VAC/1.5kW110-230VAC/1.5kW110-230VAC/1.5kW110-230VAC/1.5kW
Lifting Motor(DC)12VDC/1.5kW12VDC/1.5kW12VDC/1.5kW12VDC/1.5kW12VDC/1.5kW12VDC/1.5kW12VDC/1.5kW
Batteries12V/85Ah12V/85Ah12V/85Ah12V/85Ah12V/85Ah12V/85Ah12V/85Ah
Integrated Charger12V/15A12V/15A12V/15A12V/15A12V/15A12V/15A12V/15A
Weight






ModelGTWY16-2000GTWY14-2000GTWY13-2000GTWY12-2000GTWY11-2000GTWY9-2000GTWY8-2000
Weight(AC)980kg850kg815kg780kg675kg630kg585kg
Weight(DC)1040kg872kg837kg802kg697kg652kg607kg


Standard equipment
● Emergency stop button
● Easy loading in pickup trucks
● Two controllers operation
● Emergency lowering system
● Leveling indicator
● Forklift pockets
● Transport tie hole
● Tilt back frame(Only for AWP16-2000)
● All motion alarm
● Cylinder holding valve
● Outriggers with interlock
● Function with deadman
Options
● Overload sensor with alarm
● AC power to platform
● Beacon
