AWP16-4000/AWP14-4000/AWP12-4000/AWP10-4000
Main spec.Working height：16m、14m、12m、10.00m
Main spec.S.W.L：150kg、200kg
Important featuresself-leveling outriggers with sensor system, LED display, safe and reliable
Important featuresautomatic lifting platform system to reduce machine height and easy to store
Important featuresAC/DC Power system optional
Important featuresCylinder holding valve

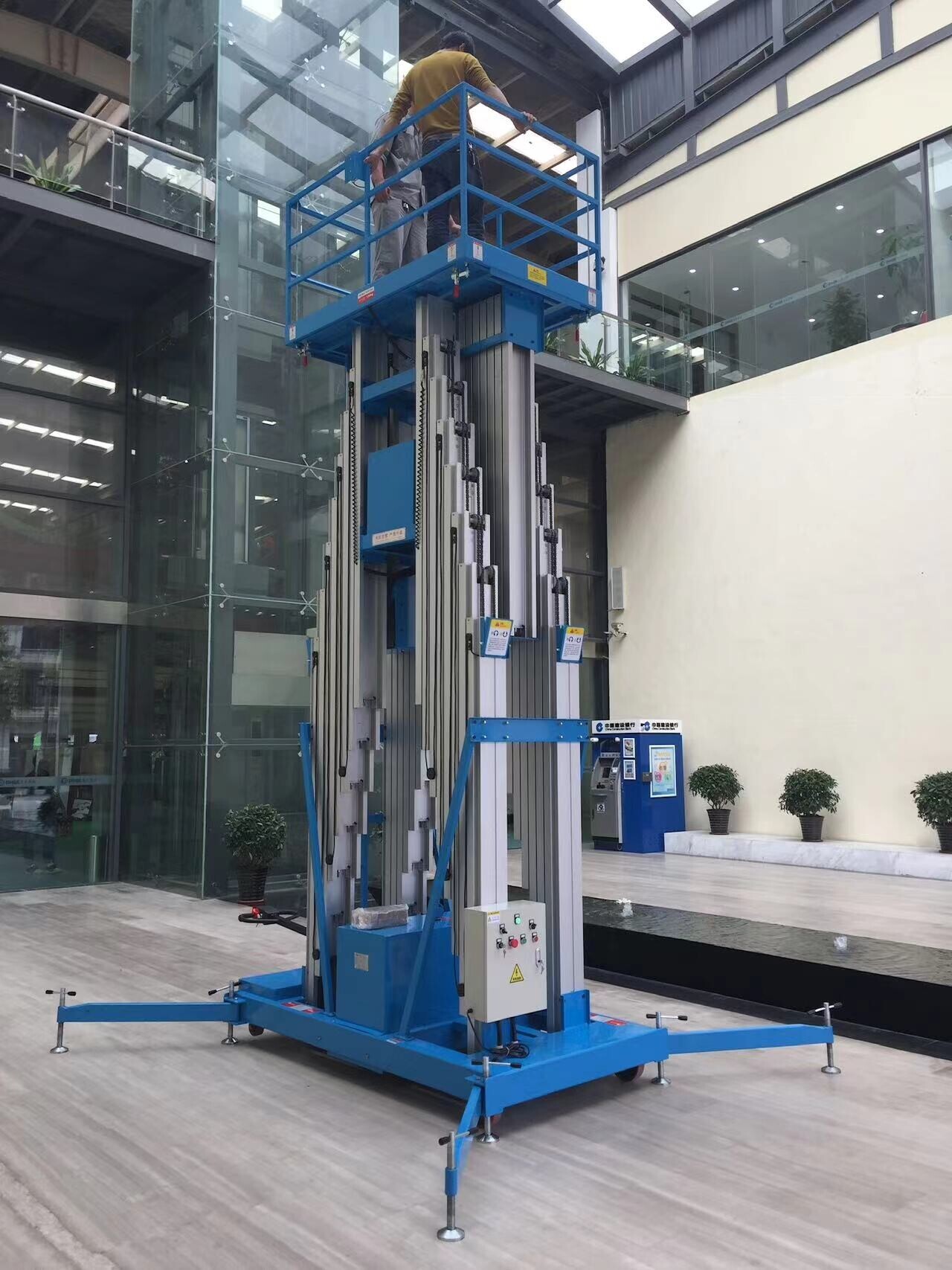

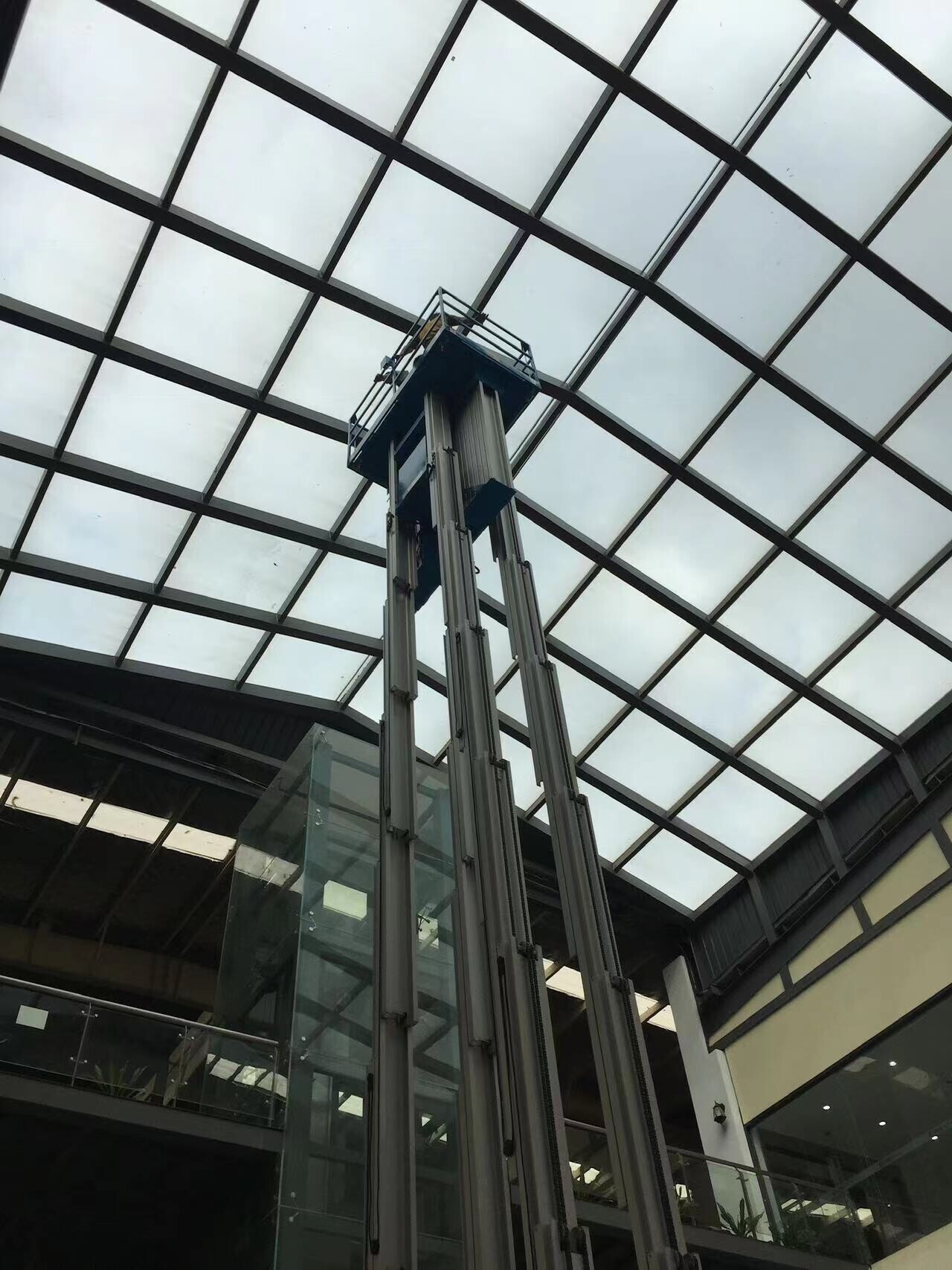

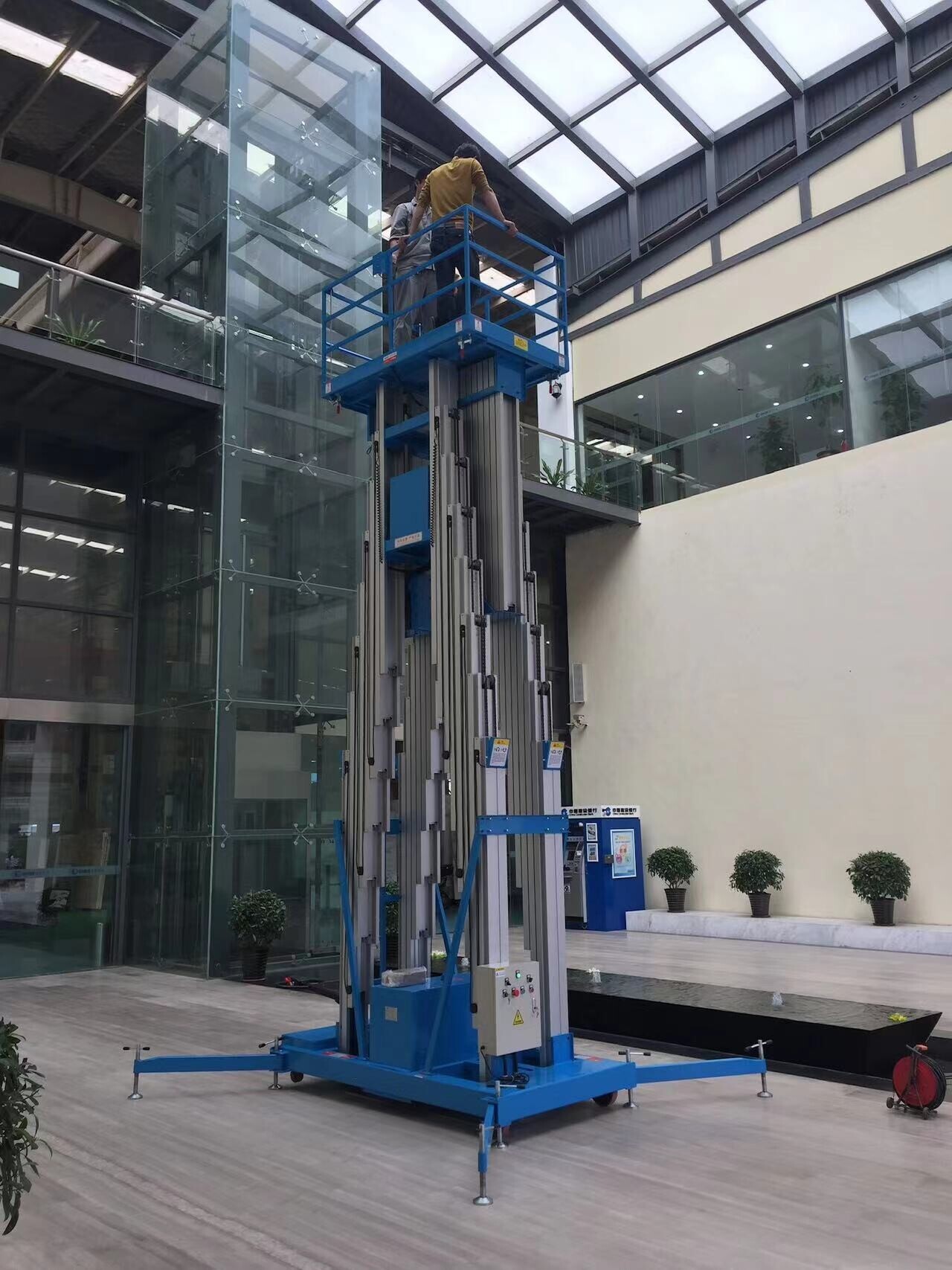

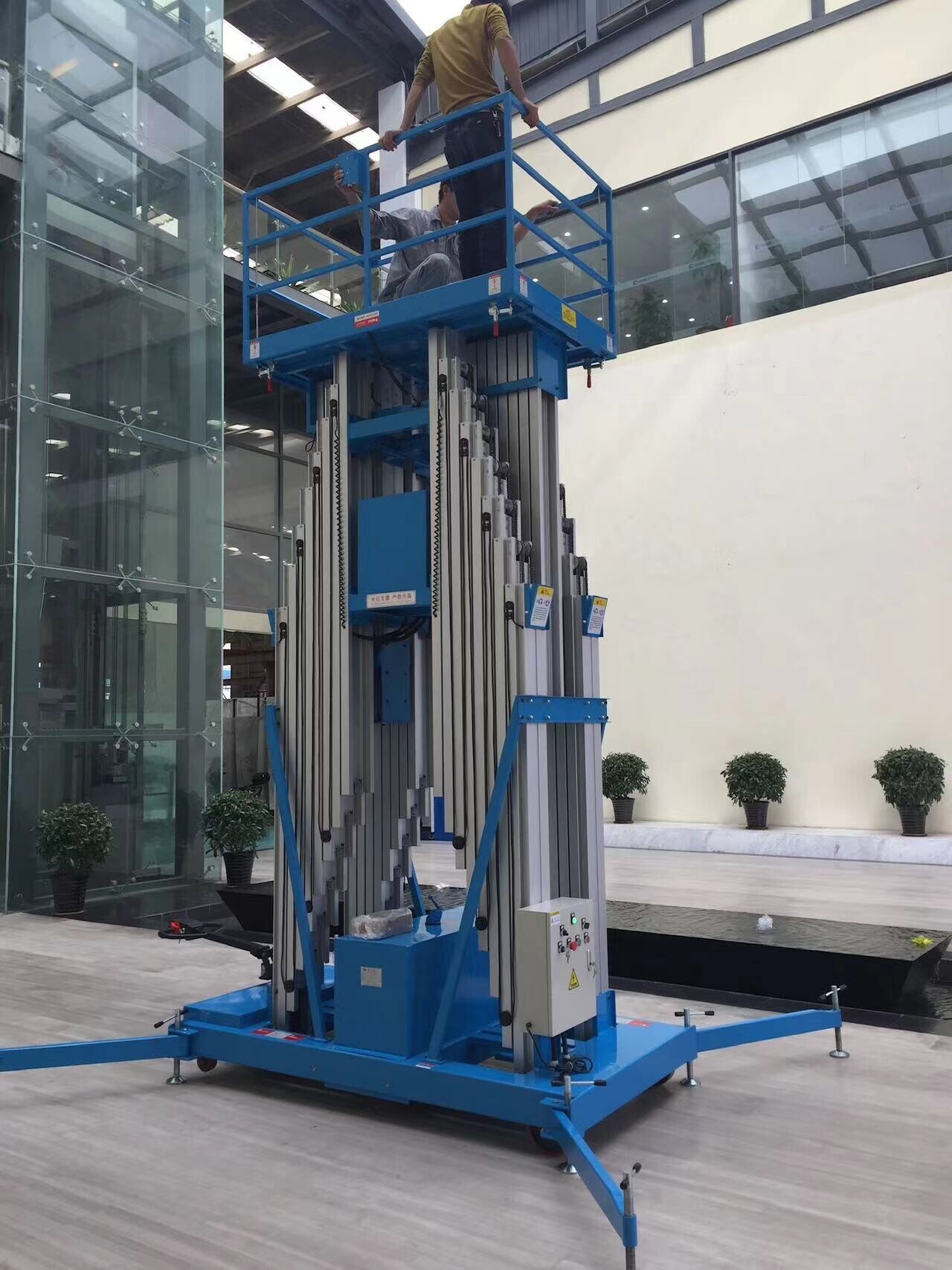

Mobile mast type aerial work platform (four-inch)

For product pricing, customization, or other inquiries:

CONTACT US

Share to：

Description
Download
Size



ModelGTWY16-4000GTWY14-4000GTWY12-4000GTWY10-4000
Working Height18.00m16.00m14.00m12.00m
Platform Floor Height16.00m14.00m12.00m10.00m
Overall Length2.28m1.92m1.82m1.82m
Overall Width1.15m1.15m1.15m1.15m
Overall Height2.45m2.40m2.28m2.08m
Outrigger Footprint(L/W)2.90m/2.60m2.50m/2.40m2.33m/2.23m2.33m/2.23m
Platform Size(Length/Width)1.67m×0.88m1.60m×0.88m1.43m×0.88m1.43m×0.88m
Ground Clearance0.15m0.15m0.15m0.15m
Wheel Base1.51m1.51m1.51m1.51m
Performance



ModelGTWY16-4000GTWY14-4000GTWY12-4000GTWY10-4000
S.W.L200kg300kg300kg300kg
Max. Occupants1222
Up/Down Speed124/114sec112/102sec100/90sec88/78sec
Tyres(Back Wheels)8in8in8in8in
Tyres(Front Wheels)7in7in7in7in
Power



ModelGTWY16-4000GTWY14-4000GTWY12-4000GTWY10-4000
Lifting Motor(AC)110/230VAC/2.2kW110/230VAC/2.2kW110/230VAC/2.2kW110/230VAC/2.2kW
Lifting Motor(DC)12VDC/2.2kW12VDC/2.2kW12VDC/2.2kW12VDC/2.2kW
Betteries2×12V/120Ah2×12V/120Ah2×12V/120Ah2×12V/120Ah
Integrated Charger24V/12A24V/12A24V/12A24V/12A
Weight



ModelGTWY16-4000GTWY14-4000GTWY12-4000GTWY10-4000
Overall Weight1250kg/1280kg1200kg/1230kg1150kg/1180kg1100kg/1130kg



Standard equipment
● Function with deadman
● Swing out outriggers with interlock
● Emergency stop button
● Battery charge indicator
● Electric limit switch
● Two controllers operation
● Emergency lowering system
● Leveling indicator
● Forklift pockets
● Transport tie hole
● All motion alarm
● Cylinder holding valve
Options
● Overload sensor with alarm
● AC power to platform
● Beacon
● DC power with charger
