AWP14-2000/AWP12-2000/AWP10-2000/AWP9-2000/ AWP8-2000/ AWP6-2000
Main spec.Working height：14m、12m、10.00m、9m、8m和6.00m
Main spec.S.W.L：150kg、200kg
Important featuresself-leveling outriggers with sensor system, LED display, safe and reliable
Important featuresautomatic lifting platform system to reduce machine height and easy to store
Important featuresAC/DC Power system optional
Important featuresCylinder holding valve

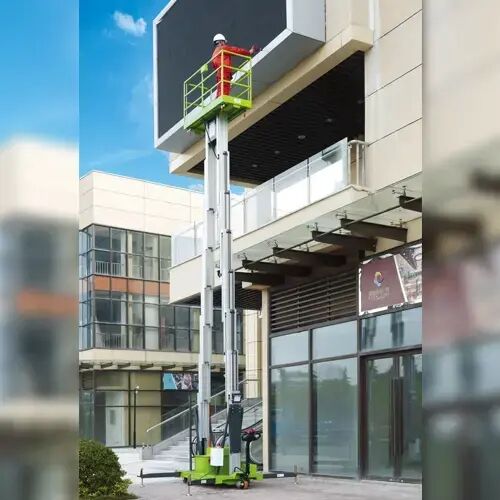

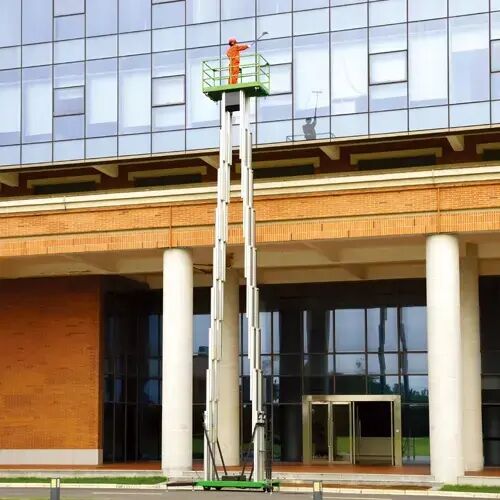

Mobile mast type aerial work platform (double jaw)

For product pricing, customization, or other inquiries:

CONTACT US

Share to：

Description
Download


Size





ModelAWP14-2000AWP12-2000AWP10-2000AWP9-2000AWP8-2000AWP6-2000
Working Height16.00m14.00m12.00m11.00m10.00m8.00m
Platform Floor Height14.00m12.00m10.00m9.00m8.00m6.00m
Overall Length1.90m1.76m1.76m1.54m1.54m1.54m
Overall Width1.16m1.00m1.00m1.00m1.00m1.00m
Overall Height2.35m2.00m2.00m2.00m2.00m2.00m
Outrigger Footprint(L/W)2.36m/2.33m2.10m/2.00m2.10m/2.00m1.77m/1.82m1.77m/1.82m1.77m/1.82m
Platform Size(Length/Width)1.52m×0.62m1.52m×0.62m1.52m×0.62m1.30m×0.62m1.30m×0.62m1.30m×0.62m
Ground Clearance0.05m0.05m0.05m0.05m0.05m0.05m
Wheel Base1.41m1.41m1.17m1.17m1.17m1.17m
Performance





ModelAWP14-2000AWP12-2000AWP10-2000AWP9-2000AWP8-2000AWP6-2000
S.W.L150kg200kg200kg200kg200kg200kg
Max. Occupants111111
Up/Down Speed112/102sec100/90sec88/78sec80/70sec75/65sec55/45sec
Tyres(Back Wheels)8in8in8in8in8in8in
Tyres(Front Wheels)7in7in7in7in7in7in
Power





ModelAWP14-2000AWP12-2000AWP10-2000AWP9-2000AWP8-2000AWP6-2000
Lifting Motor(AC)110/230VAC/1.5kW110/230VAC/1.1kW110/230VAC/1.1kW110/230VAC/1.1kW110/230VAC/1.1kW110/230VAC/1.1kW
Lifting Motor(DC)12VDC/1.5kW12VDC/1.5kW12VDC/0.80kW12VDC/0.80kW12VDC/0.80kW12VDC/0.80kW
Betteries2×12V/100Ah2×12V/100Ah2×12V/100Ah2×12V/100Ah2×12V/100Ah2×12V/100Ah
Integrated Charger24V/12A24V/12A24V/12A24V/12A24V/12A24V/12A
Weight





ModelAWP14-2000AWP12-2000AWP10-2000AWP9-2000AWP8-2000AWP8-2000
Overall Weight904kg/934kg830kg/860kg800kg/830kg730kg/760kg680kg/710kg630kg/660kg



Standard equipment
● Function with deadman
● Swing out outriggers with interlock
● Emergency stop button
● Battery charge indicator
● Electric limit switch
● Two controllers operation
● Emergency lowering system
● Leveling indicator
● Forklift pockets
● Transport tie hole
● All motion alarm
● Cylinder holding valve
Options
● Overload sensor with alarm
● AC power to platform
● Beacon
● DC power with charger
