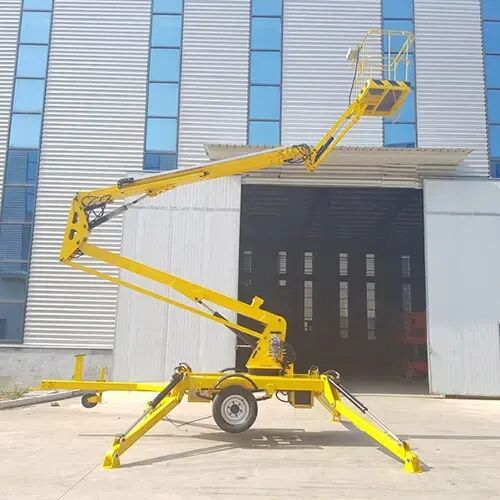

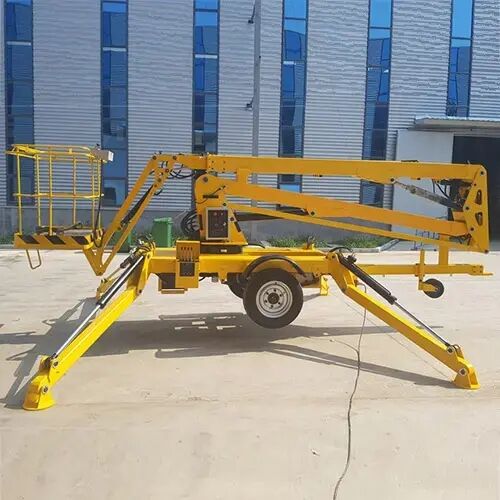

Trailer Mounted Boom Lift

For product pricing, customization, or other inquiries:

CONTACT US

Share to:

Description
Trailer Mounted Boom Lift Specification
ModelKTGZ0.2-8KTGZ0.2-10KTGZ0.2-12KTGZ0.2-14KTGZ0.2-16
Platform size1.2x0.8m1.2x0.8m1.2x0.8m1.2x0.8m1.2x0.8m
Lift height8.0m(32.8ft)10.0m(32.8ft)12.0m(45.93ft)14.0m(45.93ft)16.0m(52.49ft)
Max. work height10m12m14m16m18m
Lift capacity200kg(440lbs)200kg(440lbs)200kg(440lbs)200kg(440lbs)200kg(440lbs)
Horizontal reach4.50m5.70m6.40m8.50m9.50m
Platform levelingAutomatical leveling
Turntable swing360°non-continuous turntable rotation
Jib rotation160°160°160°160°160°
Power(Standard)Electric 220V AC power; as request
Dimension5.2*1.6*1.9m5.4*1.6*1.9m6.4*1.6*1.9m6.0*1.7*2.1m7.0*1.73*2.2m
Anti wind grade≤5≤5≤5≤5≤5
Self-weight1538kg1600kg1800kg2350kg2900kg
Optional PowerDiesel engine/ Battery





Trailer Boom Lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into jobs. They’re space efficient, both when in use and folded up for storage, as it’s able to move around in narrow spaces easily, and be folded up for compact storage.

This trailer boom lift has the widest working range on the market, with a 360° range of movement while extended. It can be used for building maintenance, road light replacement, cherry picking, window cleaning – you name it, the trailer boom lift can probably do it. Its versatility makes it a popular choice.

Safety and efficiency are KOOSEN top priority, and honing our technology and customer service is a constant process. Everything we do is with our customers in mind. To ensure high quality and safety, every manufacturing process is strictly controlled and adheres to international standards, from the input of raw materials to the output of finished products.

We recognize that it’s important to have a lift that exactly suits your needs. To this end, we provide multiple models and specifications to fit a variety of requirements. Our towable man lift has models that can reach from 8 meters to 18 meters with 200kg loading capacity.

 If you don’t see exactly what you need, let us know and we can design and manufacture a boom lift specifically for you.
