Description

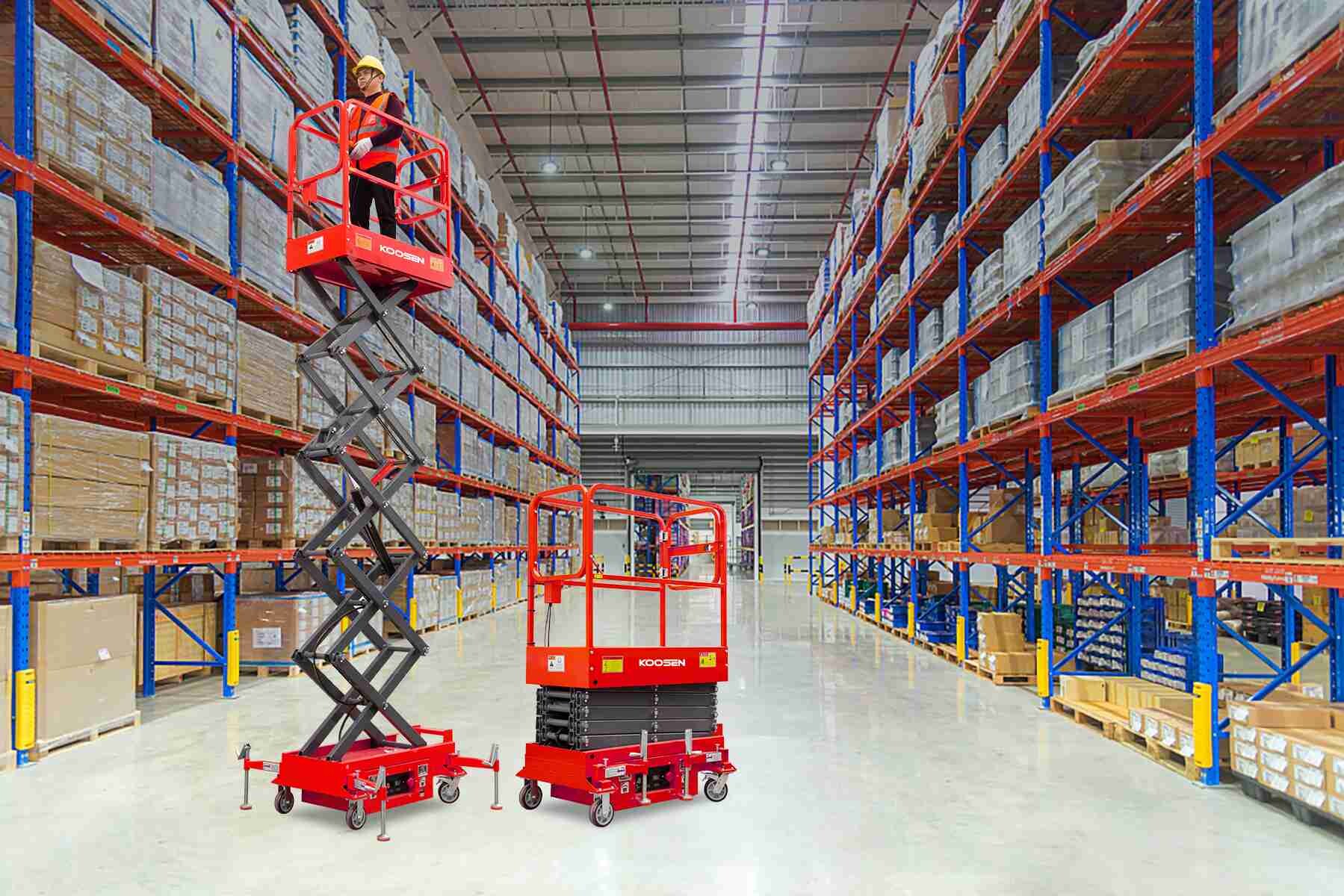

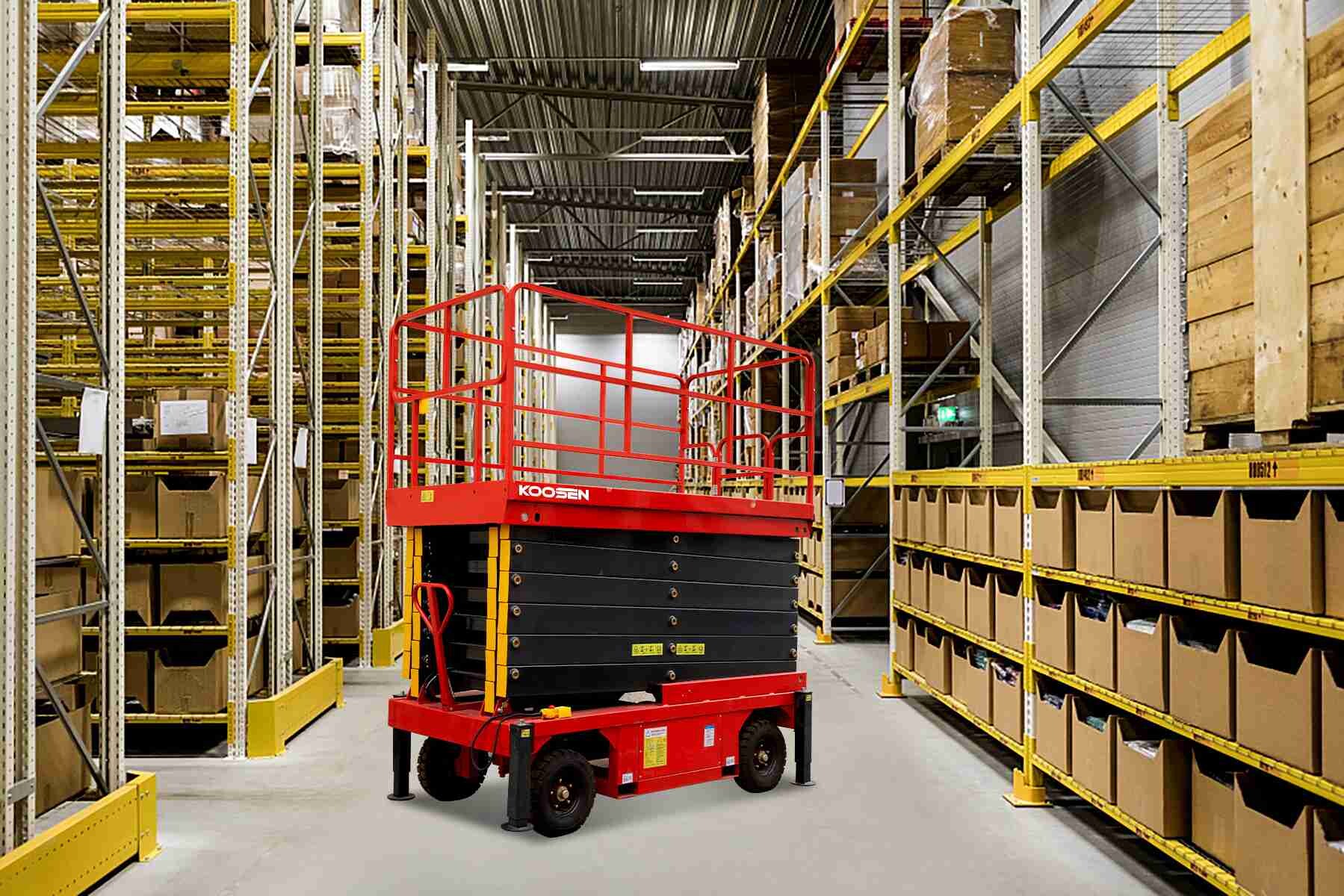

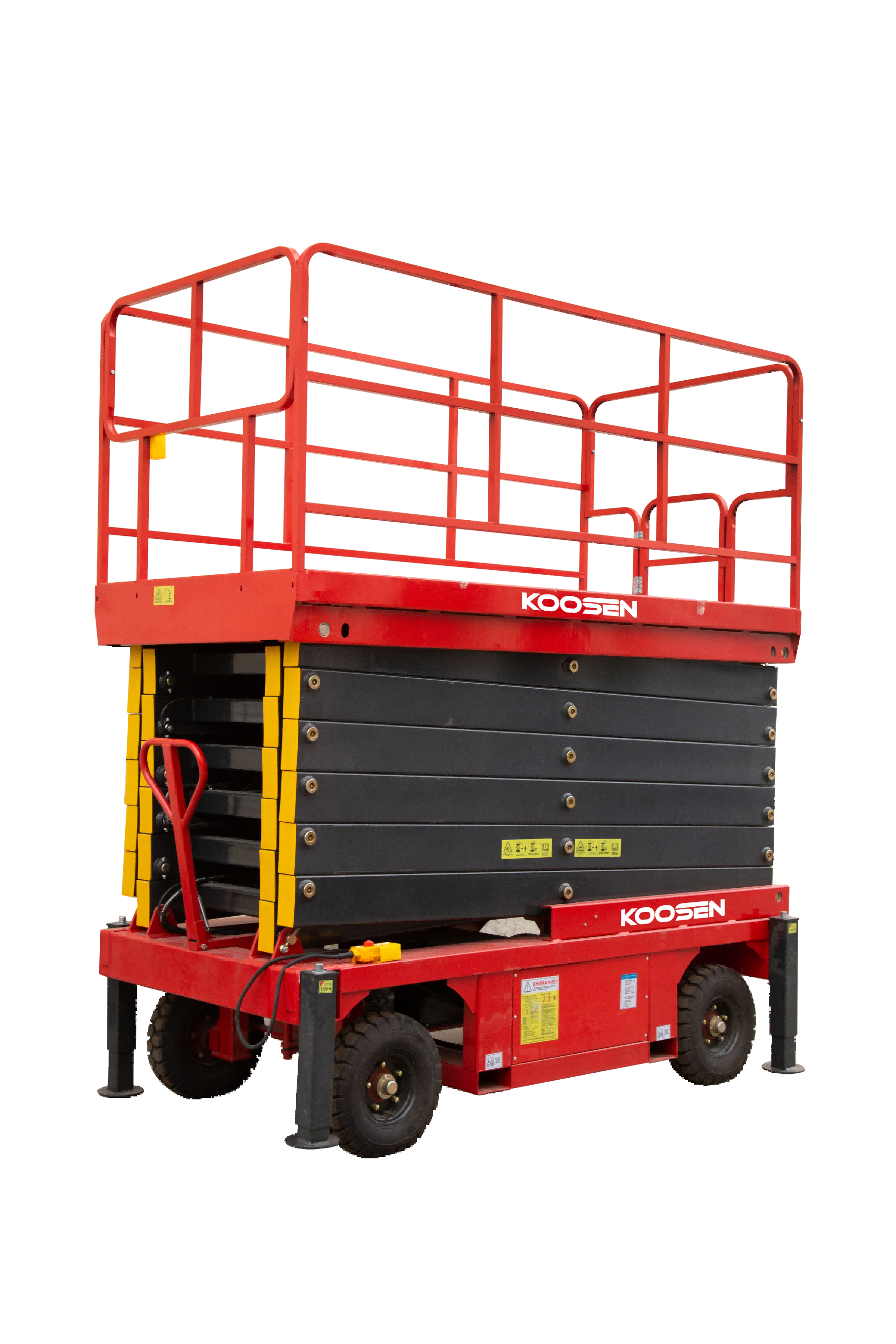

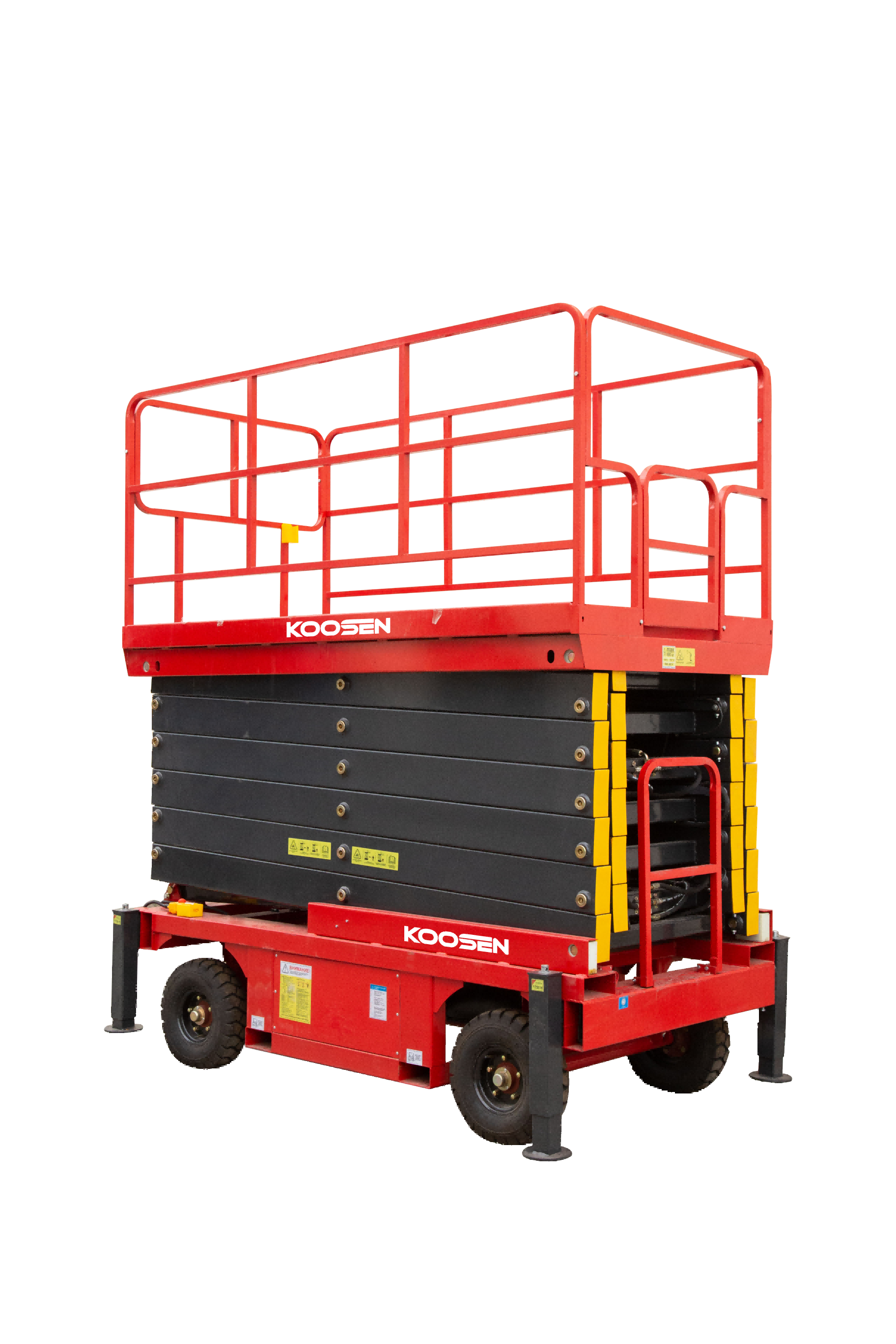

Push Around Scissor Lifts


Push Around Scissor Lifts are compact and versatile access solutions designed for indoor maintenance, installation, and construction tasks. These lifts are manually maneuvered, providing an efficient and flexible way to reach elevated work areas without the need for power or fuel.


Key Features:


Compact Design: With a narrow profile, these lifts can easily navigate through tight spaces and doorways, making them ideal for indoor use.

Easy Mobility: Lightweight and easy to push, these lifts can be transported and positioned by a single operator, reducing the need for additional manpower.

Stable Platform: The scissor mechanism provides a stable and secure platform for workers, ensuring safety at various heights.

Versatility: Suitable for a wide range of applications, from changing light bulbs and hanging decorations to performing maintenance and repairs in warehouses, offices, and retail spaces.

Cost-Effective: With low maintenance requirements and no fuel costs, Push Around Scissor Lifts offer a cost-effective solution for your elevated work needs.


Applications:


Indoor Maintenance and Repairs

Electrical and Lighting Installations

Painting and Decorating

Facility Management

Warehouse Operations


Push Around Scissor Lifts combine ease of use with safety and efficiency, making them an essential tool for any workplace requiring elevated access.



Specification




ModelJCPT1600JCPT1400JCPT1200JCPT1100JCPT900JCPT750JCPT600
Working Height18.00m16.00m14.00m13.00m11.00m9.50m8.00m
Platform Floor Height16.00m14.00m12.00m11.00m9.00m7.50m6.00m
Overall Length2.95m2.65m2.65m2.30m2.00m2.00m2.00m
Overall Width1.75m1.55m1.55m1.35m1.20m1.20m1.08m
Overall Height(Rails up)2.1m2.00m1.88m1.70m1.68m1.54m1.10m
Overall Height(Rails down)1.7m1.60m1.50m1.32m1.30m1.16m0.71m
Platform Size(Length/With)2.75m×1.50m2.45m×1.35m2.45m×1.35m2.10m×1.15m1.80m×1.00m1.80m×1.001.85m×0.88m
Platform Extension Size

0.90m0.90m0.90m0.90m0.90m
Ground Clearance(Stowed)0.10m0.10m0.10m0.10m0.10m0.10m0.10m
Wheel Base1.50m1.35m1.35m1.15m1.08m1.08m1.00m
Performance






ModelJCPT1600ACJCPT1400ACJCPT1200ACJCPT1100ACJCPT900ACJCPT750ACJCPT600AC
S.W.L300kg500kg500kg500kg500kg500kg500kg
S.W.L On Extension113kg113kg113kg113kg113kg113kg113kg
Maximum Workers Number2222222
Up/Down Speed173/160sec165/152sec125/112sec80/68sec70/58sec60/48sec55/43sec
TyreΦ500×8 Air tyreΦ500×8 Air tyreΦ500×8 Air tyrΦ500×8 Air tyreΦ400×8 Air tyreΦ400×8 Air tΦ400 PU
Power






ModelJCPT1600ACJCPT1400ACJCPT1200ACJCPT1100ACJCPT900ACJCPT750ACJCPT600AC
PowerAC380VAC380VAC380VAC380VAC380VAC380VAC380V
Lifting Motor3.0kW3.0kW3.0kW2.2kW1.5kW1.5kW1.5kW
Weight






ModelJCPT1600ACJCPT1400ACJCPT1200ACJCPT1100ACJCPT900ACJCPT750ACJCPT600AC
Weight(CE)3200kg2650kg2450kg1580kg1200kg1000kg800kg
