Description

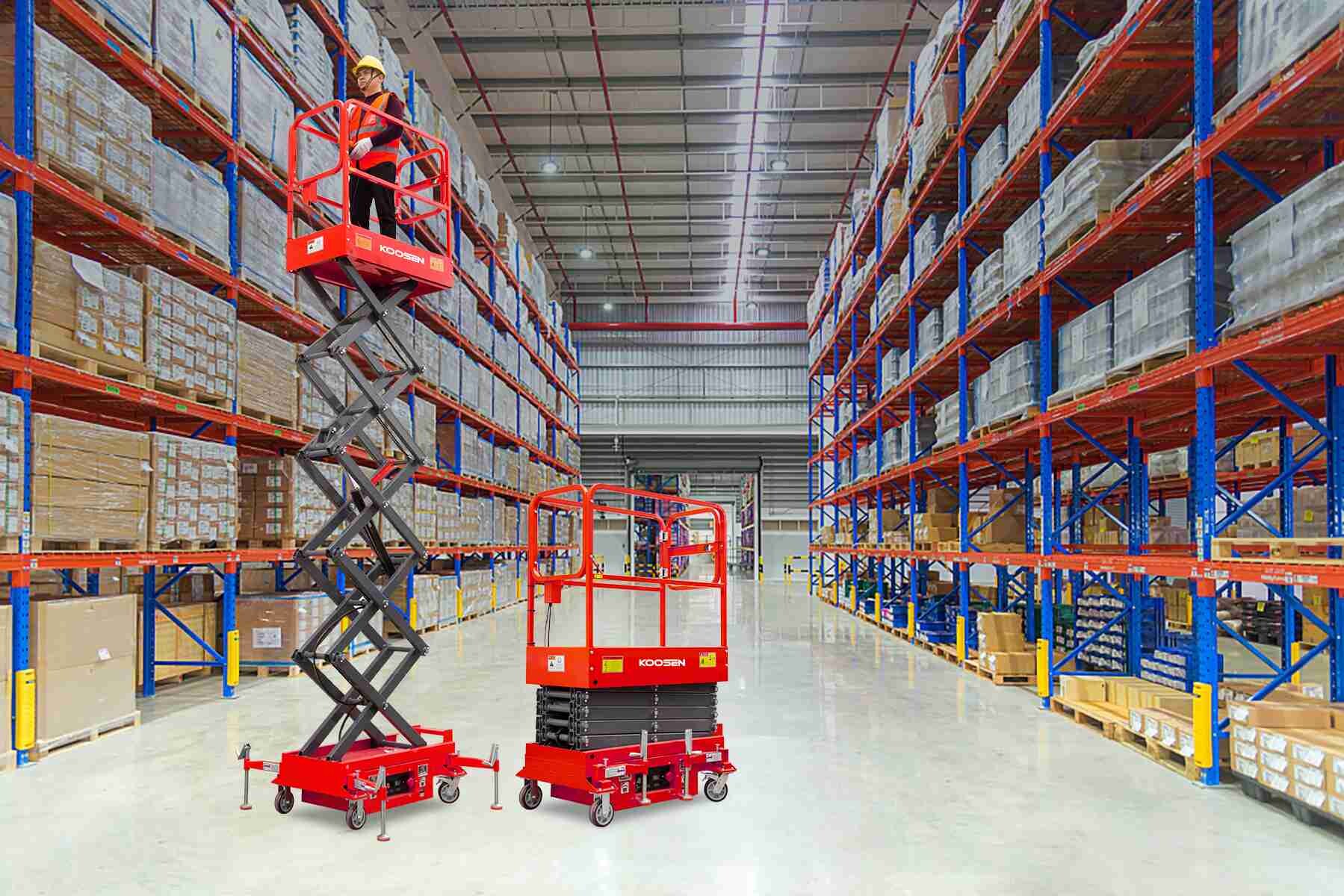

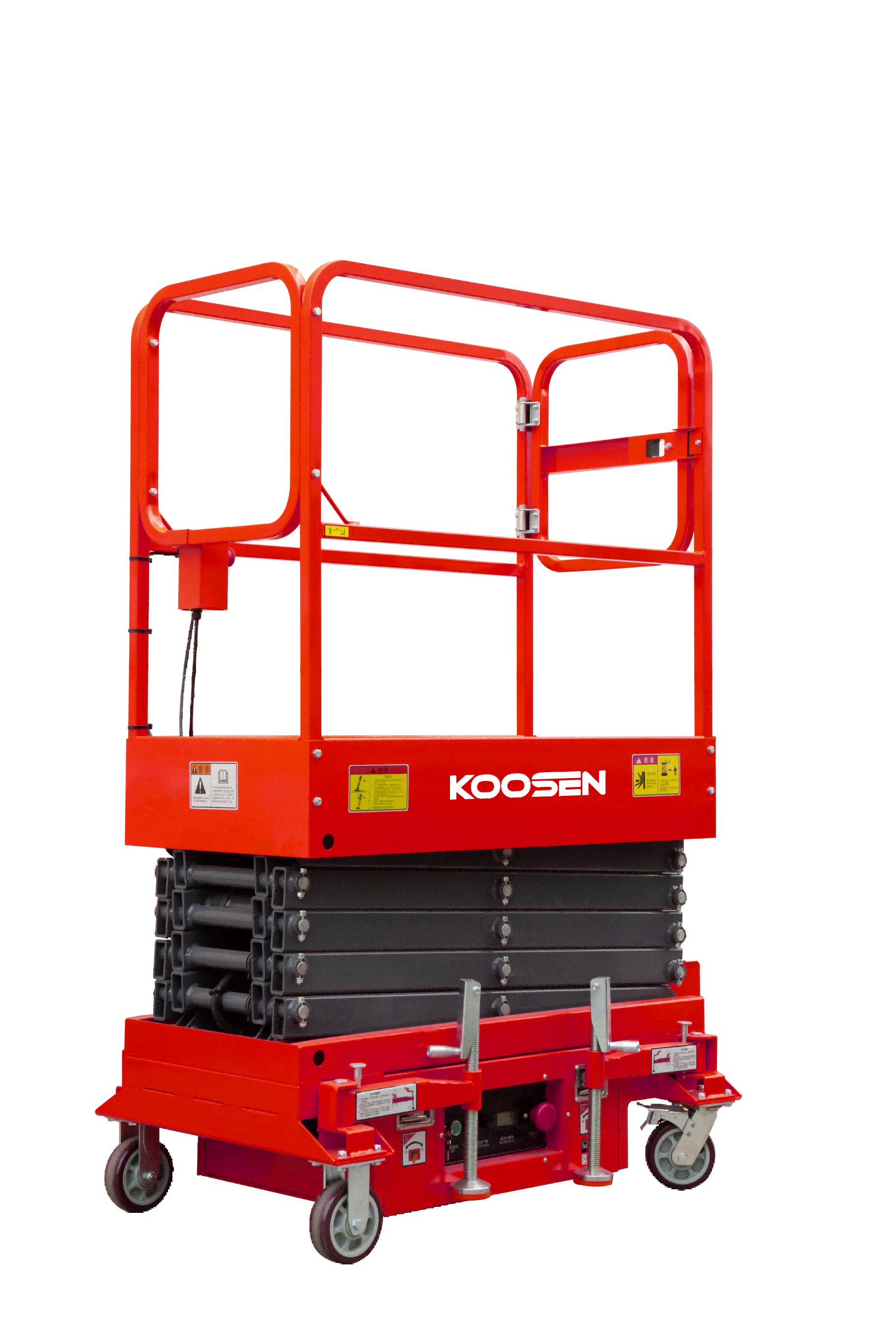

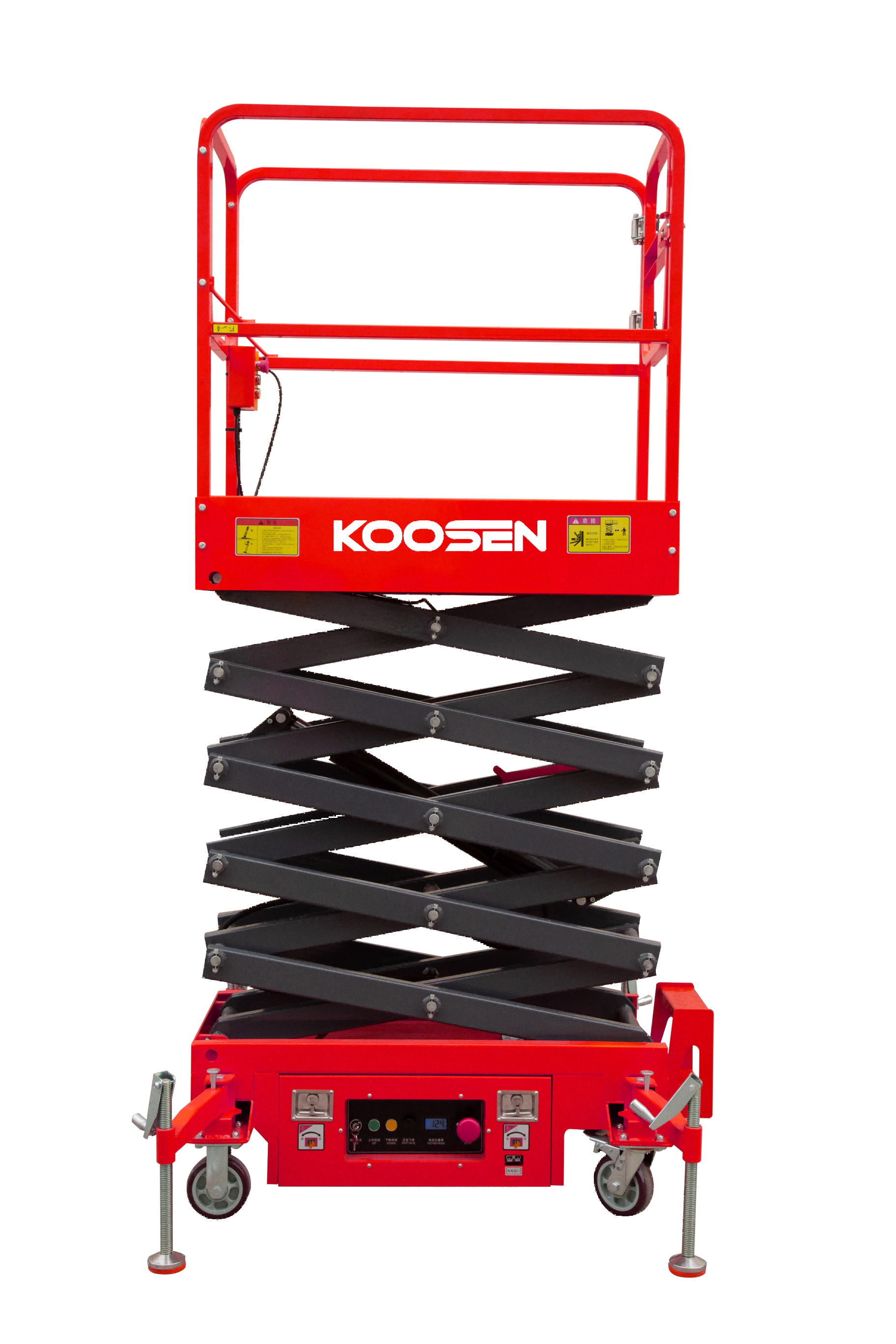

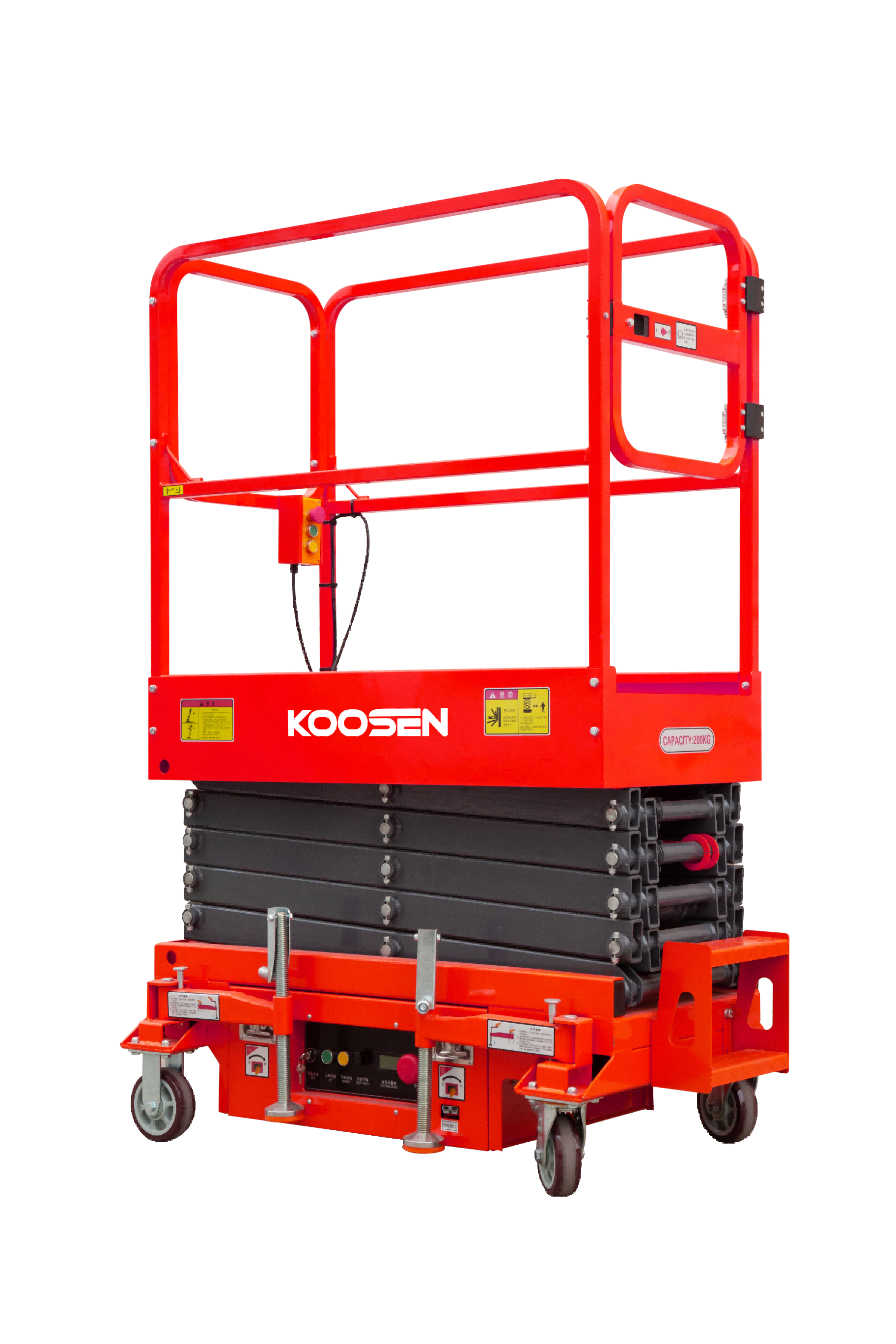

Mini Scissor Lift - Push Around Type


The Mini Scissor Lift - Push Around Type is a compact and versatile solution designed for quick and efficient access to elevated work areas. Ideal for tight spaces and indoor tasks, this lift provides a convenient and safe way to perform maintenance, installations, and repairs.


Key Features:


Compact Size: The small footprint allows for easy navigation through narrow aisles and doorways, making it perfect for crowded and confined spaces.

Lightweight and Portable: Easy to push and position manually, this lift can be transported and set up by a single operator, enhancing mobility and reducing setup time.

Stable Platform: Despite its small size, the lift offers a stable and secure platform, ensuring worker safety during operations at various heights.

Ease of Use: Simple controls and straightforward operation make this lift user-friendly, requiring minimal training for efficient use.

Low Maintenance: Designed with durability in mind, the lift requires minimal maintenance, ensuring long-term reliability and cost-effectiveness.

Safety Features: Equipped with guardrails, locking mechanisms, and emergency stop buttons, the lift prioritizes operator safety.


Applications:


Indoor Maintenance and Repairs

Electrical and Lighting Installations

Painting and Decorating

Stock Management in Warehouses

Retail and Commercial Spaces


The Mini Scissor Lift - Push Around Type is the perfect blend of convenience, safety, and efficiency, making it an essential tool for a wide range of indoor elevated tasks.



Specification



Size


ModelJCPT0607JCPT0407JCPT0307
Working Height8.0m6.0m5.0m
Platform Floor Height6.0m4.0m3.0m
Overall Length1.43m1.43m143m
Overall Width0.76m0.76m0.76m
Overall Height(Rails Up)2.17m1.93m1.83m
Overall Height(Rails Down)1.64m1.54m1.45m
Platform Size1.27m×0.65m1.15m×0.60m1.15m×0.60m
Wheelbase1.10m0.99m0.99m
Performance


ModelJCPT0607JCPT0407JCPT0307
S.W.L240kg240kg240kg
Max. Occupants111
Ground Clearance0.05m0.05m0.05m
Up/Down Speed45/35sec35/25sec30/25sec
Tyre6in/8in6in/8in6in/8in
Power


ModelJCPT0607JCPT0407JCPT0307
Lifting Motor24VDC/2.2kW12VDC/0.8kW12VDC/0.8kW
Betteries24V/120Ah12V/100Ah12V/100Ah
Integrated Charger24V/30A12V/20A12V/20A
Weight


ModelJCPT0607JCPT0407JCPT0307
Weight(CE)650kg480kg460kg

Optional

Over Loading Sensor Alarm

AC Power

Extension Platform
