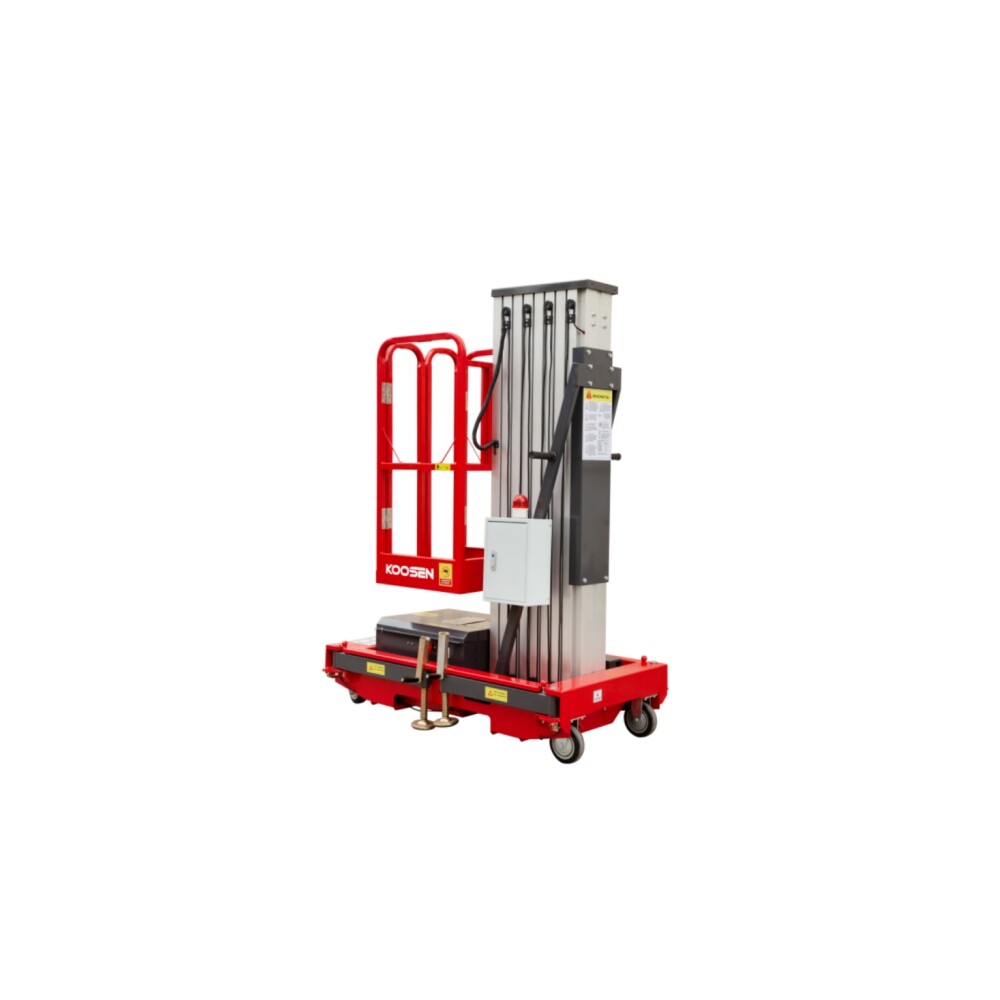

GTWY12-1000/GTWY10-1000/GTWY8-1000

Main spec.Working height：12.00m,10m and 8.00m
Main spec.S.W.L：150kg
Important featuresself-leveling outriggers with sensor system, LED display, safe and reliable
Important featuresCylinder holding valve
Important featuresTrunk loading device， convenient for loading alone
Important featuresAC/DC Power system optional

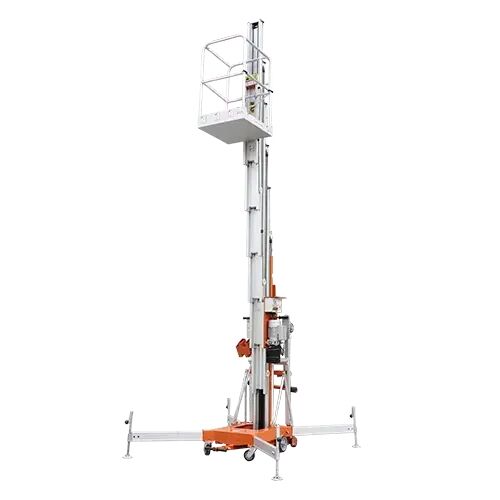

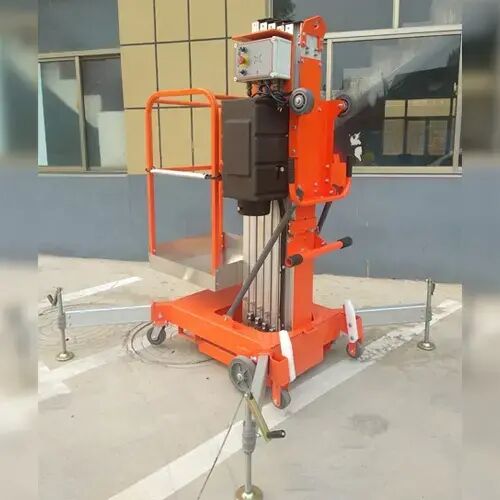

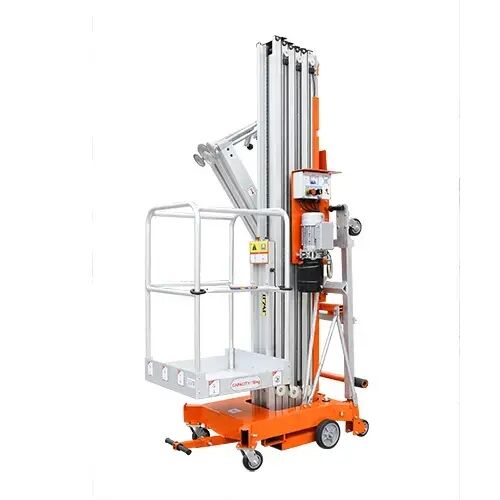

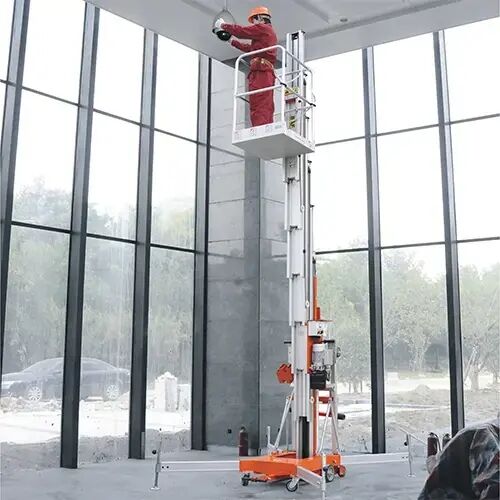

Mobile mast type aerial work platform (pin type)

For product pricing, customization, or other inquiries:

CONTACT US

Share to：

Description
Download
Size





ModelGTWY11-1000GTWY10-1000GTWY9-1000GTWY8-1000GTWY6-1000GTWY5-1000
Working height12.70m12.20m11.20m10.00m8.20m6.70m
Platform Floor Height10.70m10.40m9.20m8.00m6.20m4.70m
Overall Length(Stowed)1.50m1.26m1.26m1.24m1.24m1.35m
Overall Width0.81m0.81m0.81m0.81m0.81m0.81m
Overall Height(Stowed)2.30m1.97m1.97m1.97m1.97m1.97m
Outrigger Footprint(L/W)2.20m/2.20m1.80m/1.80m1.60m/1.60m1.60m/1.60m1.60m/1.60m1.60m/1.60m
Platform Size(Length/Wide)0.67m×0.66m0.67m×0.66m0.67m×0.66m0.67m×0.66m0.67m×0.66m0.67m×0.66m
Ground Clearance0.05m0.05m0.05m0.05m0.05m0.05m
Performance





ModelGTWY11-1000GTWY10-1000GTWY9-1000GTWY8-1000GTWY6-1000GTWY5-1000
S.W.L120kg136kg136kg150kg150kg150kg
Max. Occupants111111
Up/don speed44/36sec36/30sec38/34sec38/34sec38/34sec38/34sec
Tyres(Back Wheels)8in8in8in8in8in8in
Tyres(Front Wheels)5in5in5in5in5in5in
Power





ModelGTWY11-1000GTWY10-1000GTWY9-1000GTWY8-1000GTWY6-1000GTWY5-1000
Lifting Motor(AC)110-230VAC/1.5kW110-230VAC/1.5kW110-230VAC/1.5kW110-230VAC/1.5kW110-230VAC/1.5kW110-230VAC/1.5kW
Lifting Motor(DC)12VDC/1.5kW12VDC/1.5kW12VDC/1.5kW12VDC/1.5kW12VDC/1.5kW12VDC/1.5kW
Batteries12V/85Ah12V/85Ah12V/85Ah12V/85Ah12V/85Ah12V/85Ah
Integrated Charger12V/15A12V/15A12V/15A12V/15A12V/15A12V/15A
Weight





ModelGTWY11-1000GTWY10-1000GTWY9-1000GTWY8-1000GTWY6-1000GTWY6-1000
Weight(AC)455kg385kg365kg335kg305kg275kg
Weight(DC)477kg407kg387kg357kg327kg297kg


Standard equipment
● Emergency stop button

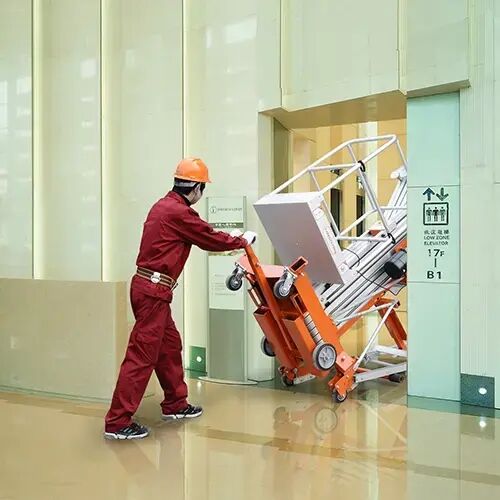

● Easy loading in pickup trucks
● Two controllers operation
● Emergency lowering system
● Leveling indicator
● Forklift pockets
● Transport tie hole
● All motion alarm
● Cylinder holding valve
● Outriggers with interlock
● Function with deadman
Options
● Overload sensor with alarm
● AC power to platform
● Beacon
