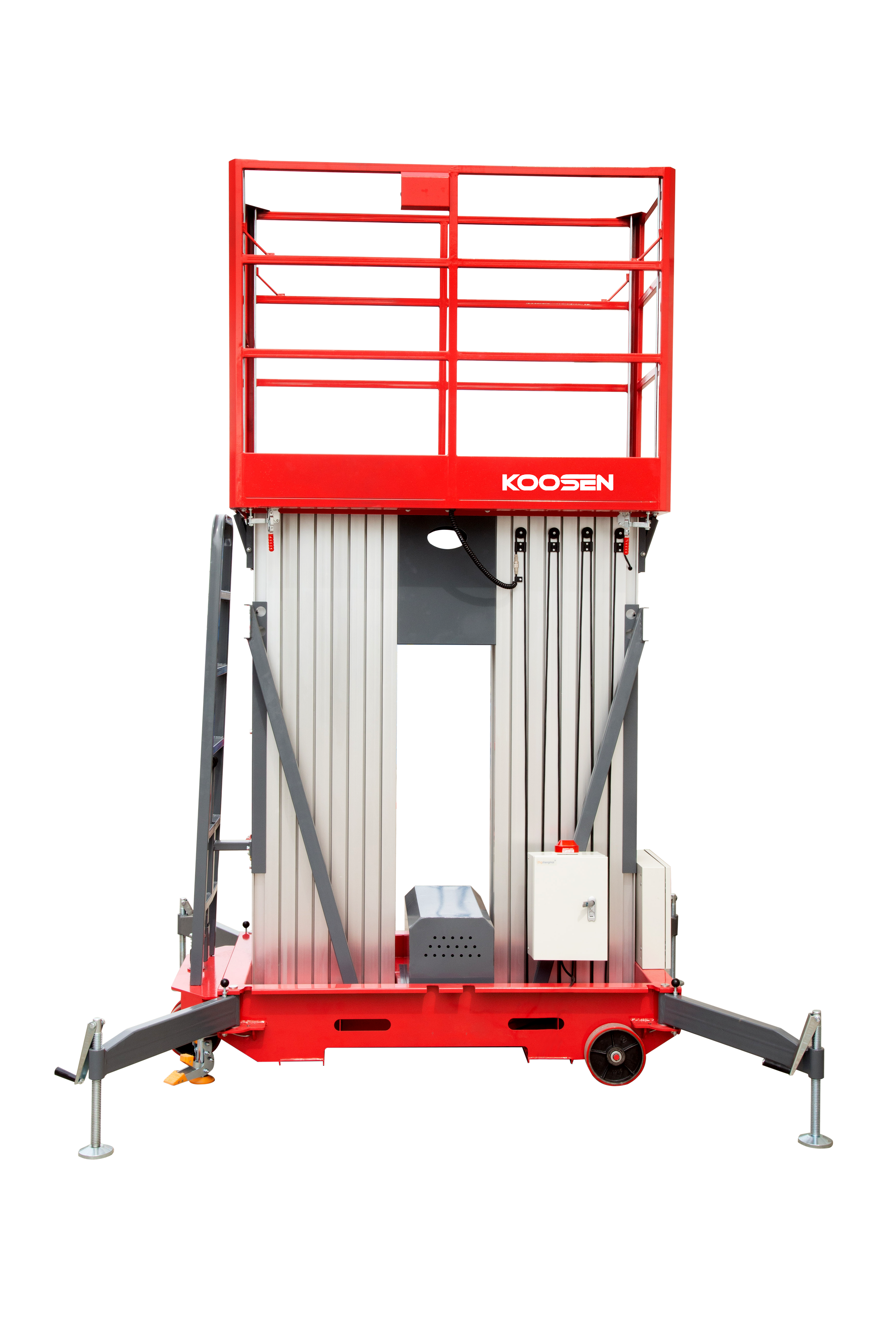

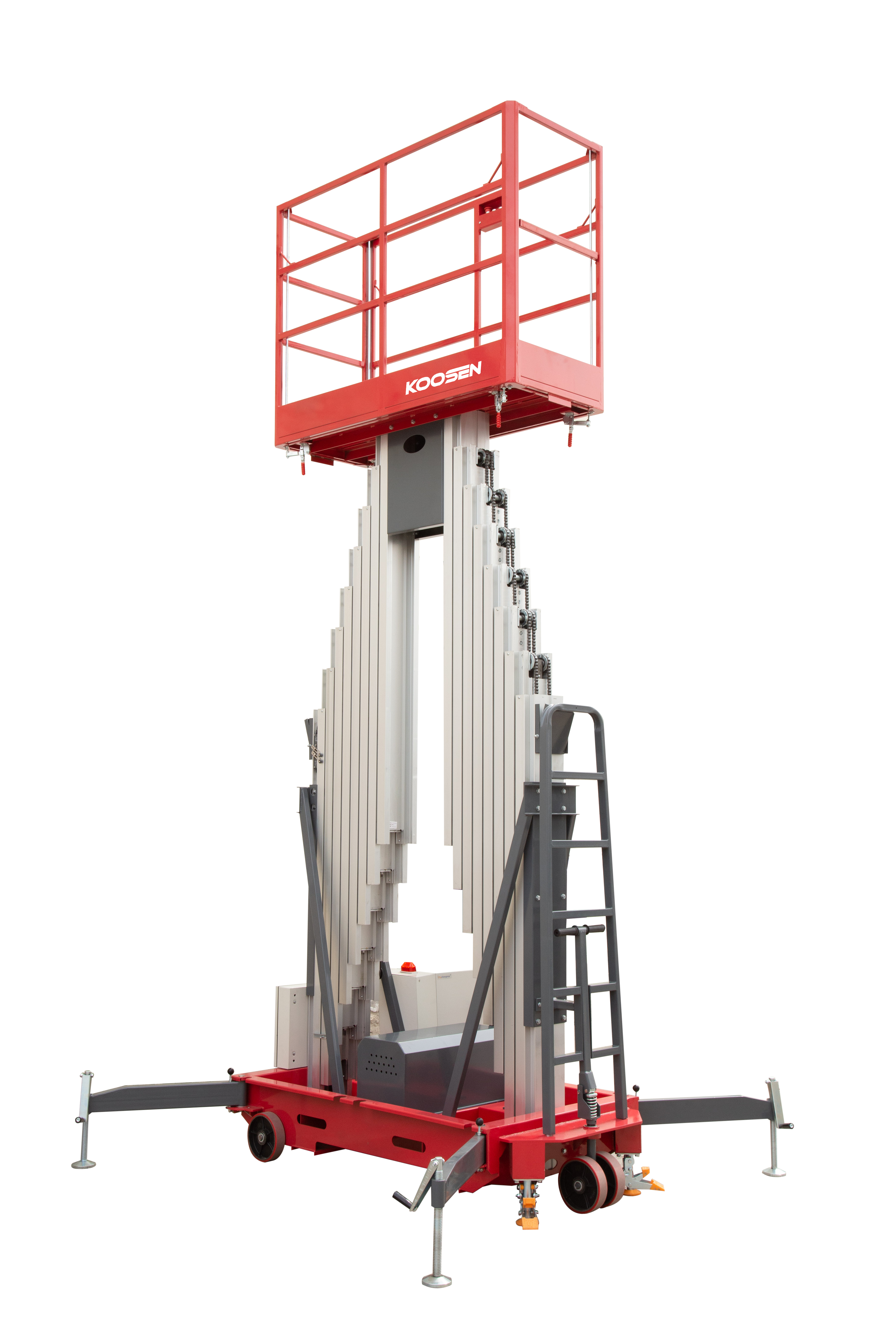

AWP14-2000/AWP12-2000/AWP10-2000/AWP9-2000/ AWP8-2000/ AWP6-2000

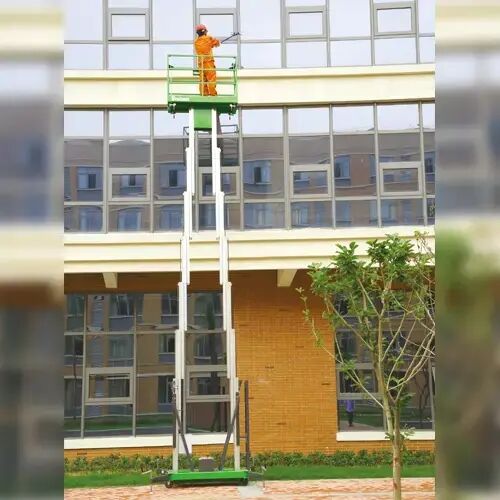

Mobile mast type aerial work platform (double jaw)

For product pricing, customization, or other inquiries:

Share to：

Description

Size
Model	AWP14-2000	AWP12-2000	AWP10-2000	AWP9-2000	AWP8-2000	AWP6-2000
Working Height	16.00m	14.00m	12.00m	11.00m	10.00m	8.00m
Platform Floor Height	14.00m	12.00m	10.00m	9.00m	8.00m	6.00m
Overall Length	1.67m	1.67m	1.56m	1.33m	1.33m	1.33m
Overall Width	0.97m	0.97m	0.97m	0.92m	0.92m	0.92m
Overall Height	2.35m	2.05m	1.98m	2.05m	2.05m	1.98m
Outrigger Footprint(L/W)	2.2m*2.4m	2.20m*2.40m	2.10m*2.20m	1.85m*1.87m	1.85m*1.87m	1.85m*1.87m
Platform Size(Length/Width)	1.65m*0.97m	1.65m*0.97m	1.56m*0.97m	1.12m*0.60m	1.12m*0.60m	1.12m*0.60m
Ground Clearance	0.05m	0.05m	0.05m	0.05m	0.05m	0.05m
Wheel Base	1.41m	1.41m	1.17m	1.17m	1.17m	1.17m
Performance
Model	AWP14-2000	AWP12-2000	AWP10-2000	AWP9-2000	AWP8-2000	AWP6-2000
S.W.L	200kg	200kg	200kg	200kg	200kg	200kg
Max. Occupants	1	1	1	1	1	1
Up/Down Speed	112/102sec	100/90sec	88/78sec	80/70sec	75/65sec	55/45sec
Tyres(Back Wheels)	8in	8in	8in	8in	8in	8in
Tyres(Front Wheels)	7in	7in	7in	7in	7in	7in
Power
Model	AWP14-2000	AWP12-2000	AWP10-2000	AWP9-2000	AWP8-2000	AWP6-2000
Lifting Motor(AC)	110/230VAC/1.5kW	110/230VAC/1.1kW	110/230VAC/1.1kW	110/230VAC/1.1kW	110/230VAC/1.1kW	110/230VAC/1.1kW
Lifting Motor(DC)	12VDC/1.5kW	12VDC/1.5kW	12VDC/0.80kW	12VDC/0.80kW	12VDC/0.80kW	12VDC/0.80kW
Betteries	2×12V/100Ah	2×12V/100Ah	2×12V/100Ah	2×12V/100Ah	2×12V/100Ah	2×12V/100Ah
Integrated Charger	24V/12A	24V/12A	24V/12A	24V/12A	24V/12A	24V/12A
Weight(AC)	700KG	625KG	570KG	485KG	465KG	420KG
Model	AWP14-2000	AWP12-2000	AWP10-2000	AWP9-2000	AWP8-2000	AWP8-2000
Overall Weight	904kg/934kg	830kg/860kg	800kg/830kg	730kg/760kg	680kg/710kg	630kg/660kg
