AWP10-1000/AWP9-1000/AWP8-1000/AWP6-1000
Main spec.Working height：12.00m，10.00m and 8.00m,6.00m
Main spec.S.W.L：130kg
Important featuresself-leveling outriggers with sensor system, LED display, safe and reliable
Important featuresEmergency lowering system
Important featuresAC/DC Power system optional
Important featuresCylinder holding valve

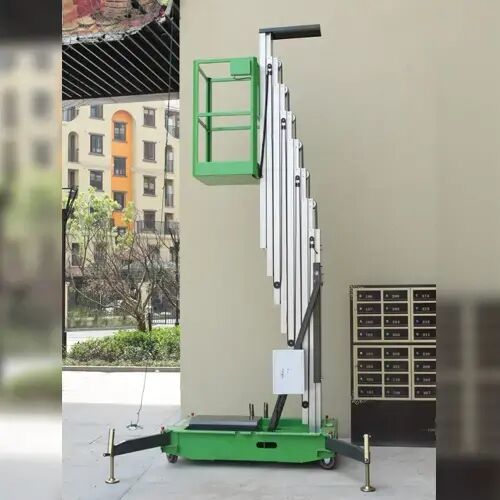

Mobile mast type aerial work platform (single head)

For product pricing, customization, or other inquiries:

CONTACT US

Share to：

Description
Download
Size



Model

AWP10-1000

AWP9-1000

AWP8-1000

AWP6-1000
Working height12.00m11.00m10.00m8.00m
Platform Floor Height10.00m9.00m8.00m6.00m
Overall Length1.45m1.45m1.34m1.34m
Overall Width0.85m0.85m0.85m0.85m
Overall Height2.00m2.00m2.00m2.00m
Outrigger Footprint(L/W)1.93m/1.77m1.92m/1.77m1.70m/1.67m1.70m/1.67m
Platform Size(Length/Wide)0.60m×0.55m0.60m×0.55m0.60m×0.55m0.60m×0.55m
Ground Clearance0.05m0.05m0.05m0.05m
Wheel Base1.12m1.12m1.12m1.12m
Performance



ModelAWP10-1000AWP9-1000AWP8-1000AWP6-1000
S.W.L130kg130kg130kg130kg
Max. Occupants1111
Up/Down Speed88/82sec80/76sec75/71sec55/51sec
Tyres(Back Wheels)7in7in7in7in
Tyres(Front Wheels)6in6in6in6in
Power



ModelAWP10-1000AWP9-1000AWP8-1000AWP6-1000
Lifting Motor(AC)110-230VAC/1.10kW110-230VAC/0.75kW110-230VAC/0.75kW110-230VAC/0.75kW
Lifting Motor(DC)12VDC/0.80kW12VDC/0.80kW12VDC/0.80kW12VDC/0.80kW
Betteries2×12V/80Ah2×12V/80Ah2×12V/80Ah2×12V/80Ah
Integrated Charger24V/12A24V/12A12V/15A12V/15A
Weight



ModelAWP10-1000AWP9-1000AWP8-1000AWP6-1000
Weight430kg/460kg400kg/430kg378kg/408kg325kg/355kg


Standard equipment
● Function with deadman
● Swing out outriggers with interlock
● Emergency stop button
● Battery charge indicator
● Electric limit switch
● Two controllers operation
● Emergency lowering system
● Leveling indicator
● Forklift pockets
● Transport tie hole
● All motion alarm
● Cylinder holding valve
Options
● Overload sensor
● AC power to platform
● Beacon
● DC power with charger
