Self Propelled

Electric Order Picker

For product pricing, customization, or other inquiries:

CONTACT US

Share to:

Description

取料机 (1).jpg

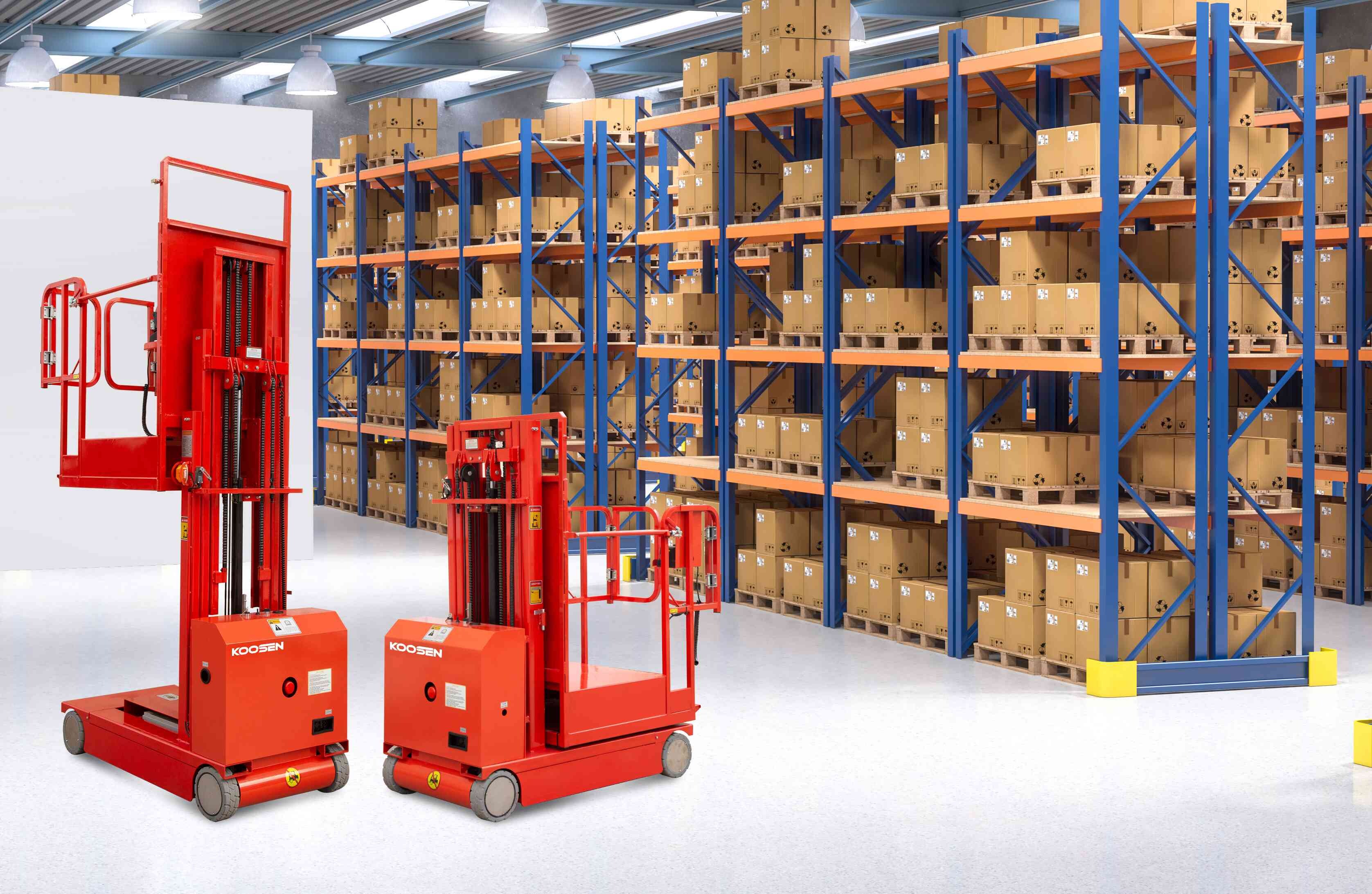

Electric Aerial Order Picker


The Electric Aerial Order Picker with Universal Steering is a highly efficient and versatile solution for streamlined inventory management and order picking tasks. Designed to enhance productivity in warehouses, retail environments, and distribution centers, this order picker combines electric power with precise hydraulic steering for optimal performance.


Key Features:


Efficient Electric Operation: Powered by a robust electric motor, this order picker offers quiet, emission-free operation, making it ideal for indoor use.

Hydraulic Steering: The advanced Universal Steering system provides smooth and precise control, allowing for effortless maneuverability even in tight spaces.

Elevated Reach: Designed to reach high shelves and racks, this order picker enables workers to efficiently access and retrieve items from elevated positions.

Stable and Secure Platform: Equipped with a stable platform and safety rails, the order picker ensures operator safety while working at height. Additional safety features include emergency stop buttons and anti-slip flooring.

User-Friendly Controls: Intuitive control panels and ergonomic design make the order picker easy to operate, reducing the learning curve and increasing productivity.

Compact and Maneuverable: The compact design allows for easy navigation through narrow aisles and confined spaces, making it perfect for busy warehouses and retail floors.


Applications:


Warehousing and Inventory Management

Retail Stocking and Order Picking

Distribution Centers

Facility Management

Manufacturing and Assembly Lines


The Electric Aerial Order Picker with Hydraulic Steering offers a combination of efficiency, precision, and safety, making it an essential tool for optimizing workflow and enhancing productivity in various work environments.



Specification



Size


ModelZDYT3-4.5SZDYT3-3.5SZDYT3-3.0S
Working Height6.50m5.50m5..00m
Platform Floor Heigh4.50m3.50m3.00m
Overall Length1.52m1.52m1.52m
Overall Width0.76m0.76m0.76m
Overall Height2.28m1.81m2.06m
Platform Size0.63m×0.80m0.63m×0.80m0.63m×0.80m
Ground Clearance0.08m0.08m0.08m
Wheel Base1.32m1.30m1.30m
Performance


ModelZDYT3-4.5SZDYT3-3.7SZDYT3-3.0S
S.W.L300kg300kg300kg
Max. Occupants111
Turning Radius000
Travel Speed(Stowed)4.0km/h4.0km/h4.0km/h
Travel Speed(Raised)0.8km/h0.8km/h0.8km/h
Up/Down Speed20/17 sec22/19 sec18/17 sec
Gradeability25%25%25%
Maximum Slope2.00°2.00°2.00°
Tyres(Drive Motors)230×80mm230×80mm230×80mm
Tyres(Front Wheels)6 in6 in6 in
Power


ModelZDYT3-4.5SZDYT3-3.7SZDYT3-3.0S
Drive Motors2×24VDC/0.4kw2×24VDC/0.4kw2×24VDC/0.4kw
Lifting Motor24VDC/2.2kw24VDC/2.2kw24VDC/2.2kw
Betteries2×12V/105Ah2×12V/105Ah2×12V/105Ah
Integrated Charger24V/11A24V/11A24V/101A
Weight


ModelZDYT3-4.5SZDYT3-3.7SZDYT3-3.0S
Weight820kg720kg690kg

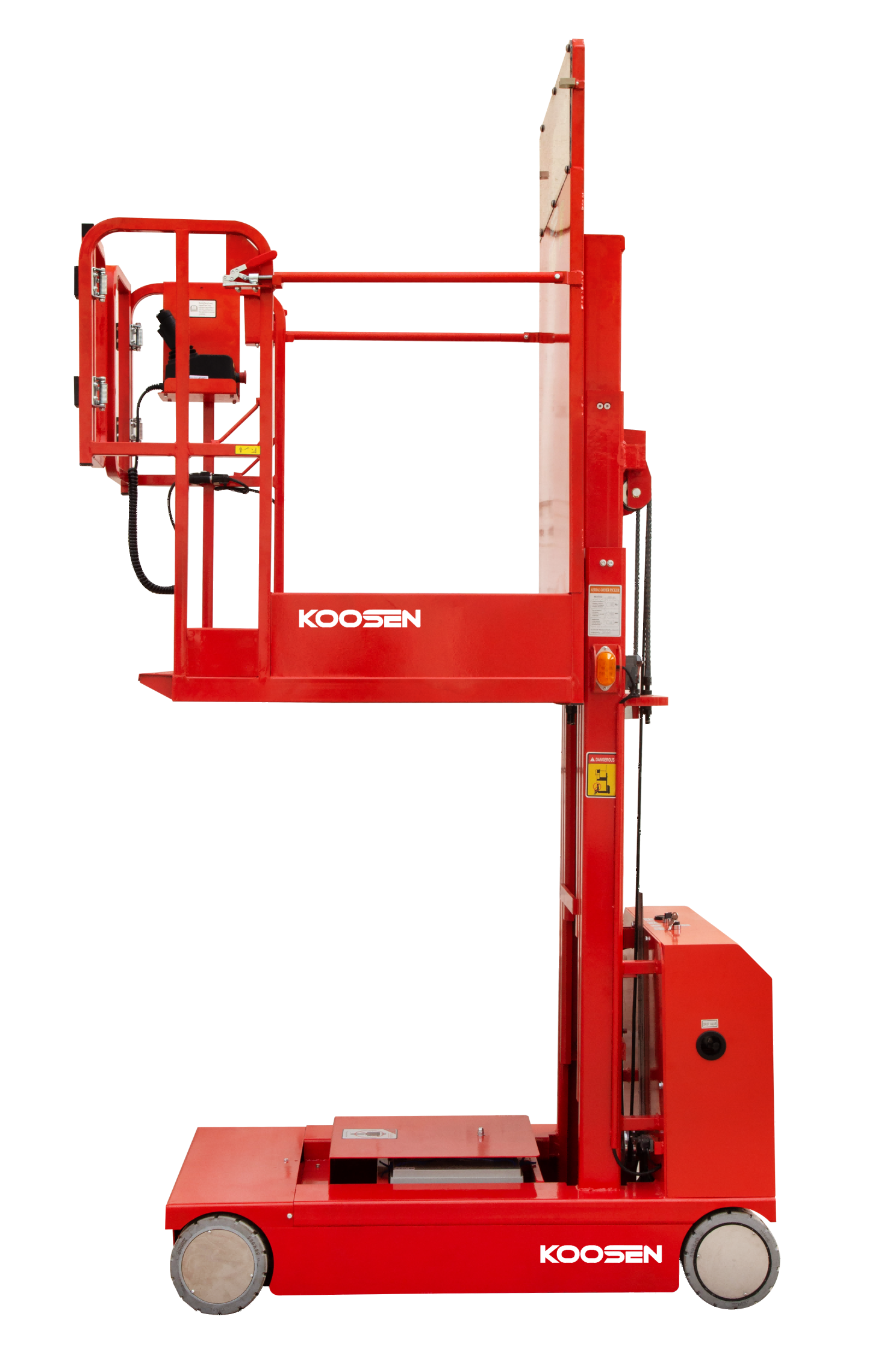

取料机 (3).png

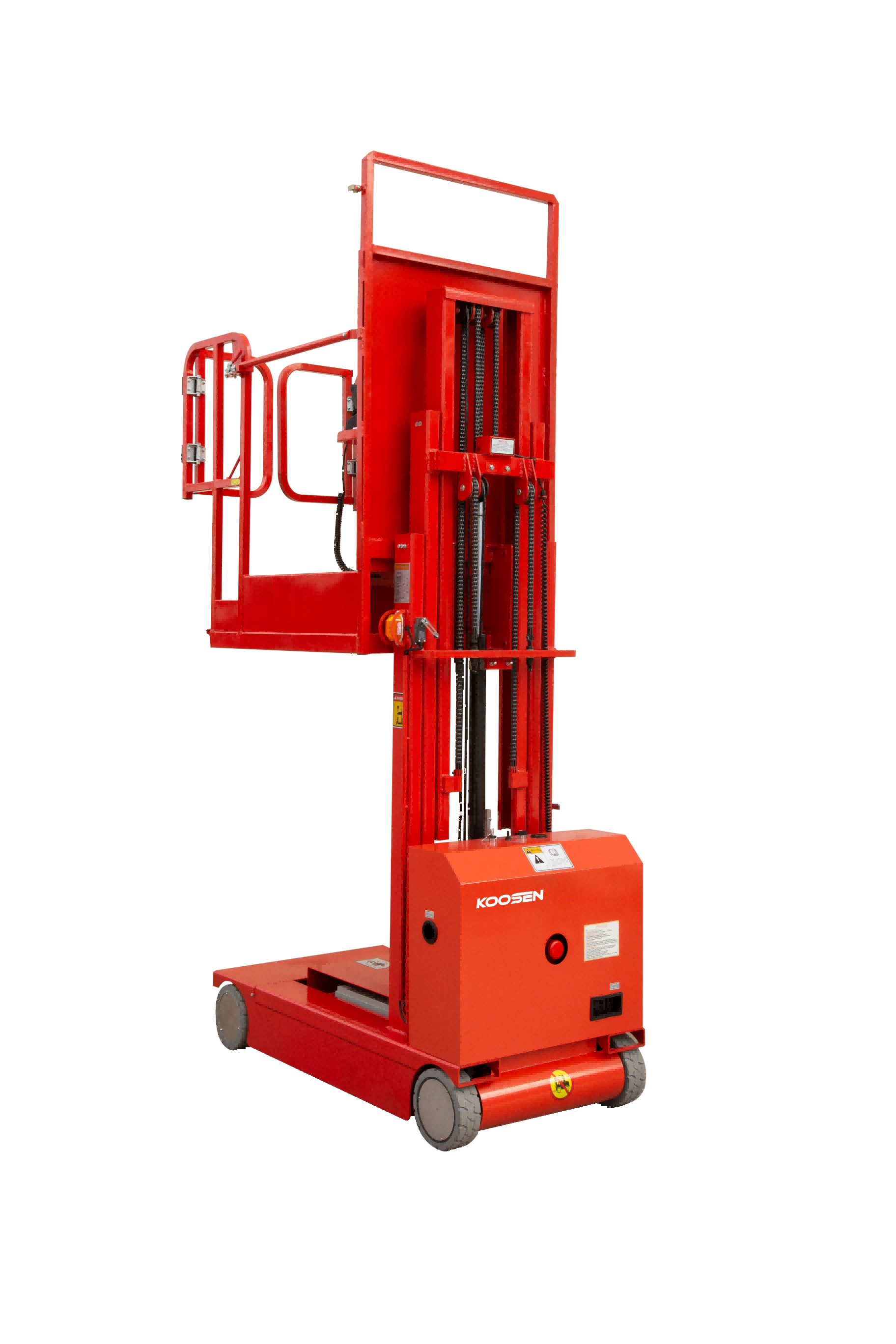

取料机 (2).png

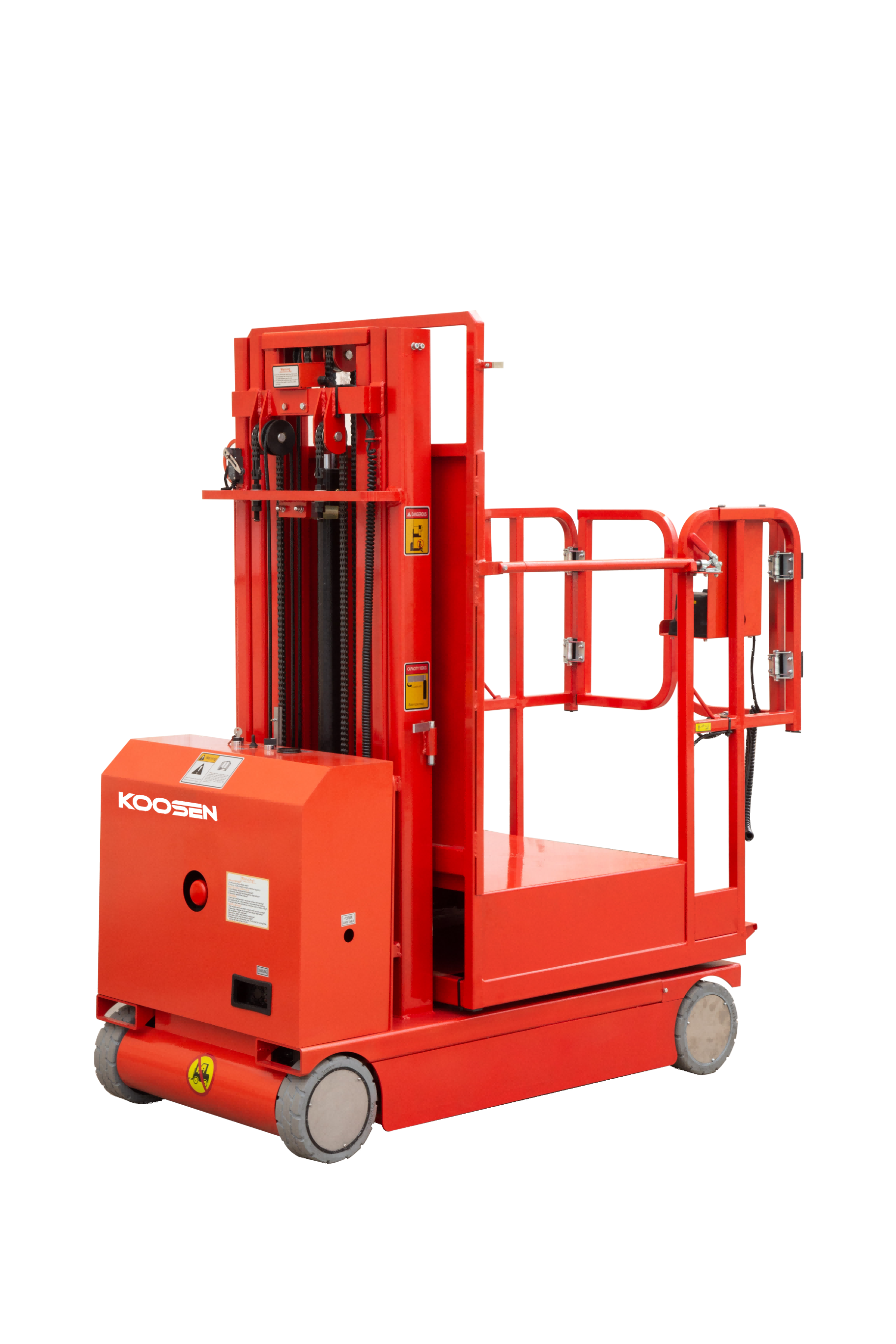

取料机 (1).png
