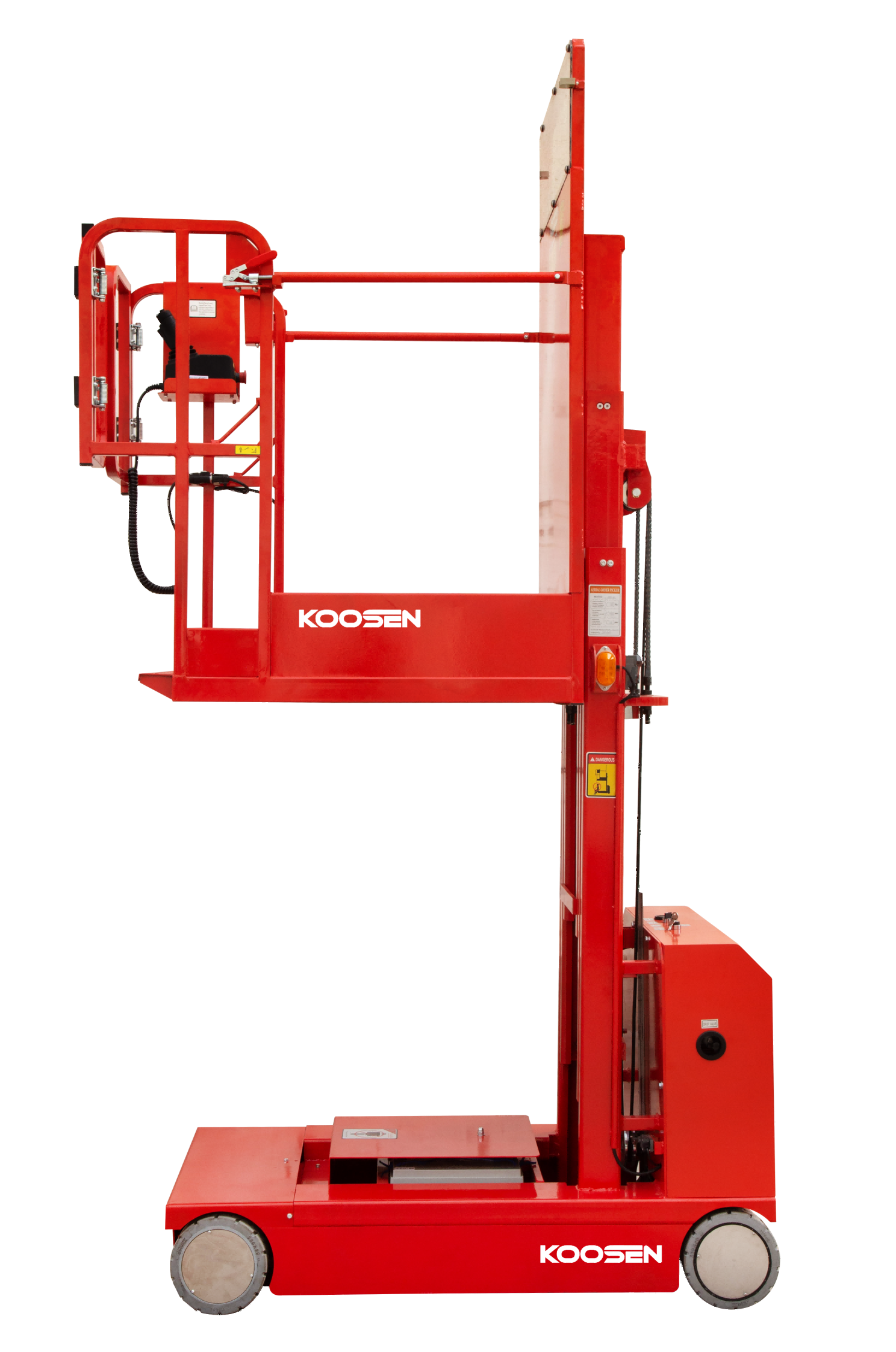

Electric Aerial Order Picker - Hydraulic Steering Model


The Electric Aerial Order Picker with Hydraulic Steering is a highly efficient and versatile solution for streamlined inventory management and order picking tasks. Designed to enhance productivity in warehouses, retail environments, and distribution centers, this order picker combines electric power with precise hydraulic steering for optimal performance.


Key Features:


Efficient Electric Operation: Powered by a robust electric motor, this order picker offers quiet, emission-free operation, making it ideal for indoor use.

Hydraulic Steering: The advanced hydraulic steering system provides smooth and precise control, allowing for effortless maneuverability even in tight spaces.

Elevated Reach: Designed to reach high shelves and racks, this order picker enables workers to efficiently access and retrieve items from elevated positions.

Stable and Secure Platform: Equipped with a stable platform and safety rails, the order picker ensures operator safety while working at height. Additional safety features include emergency stop buttons and anti-slip flooring.

User-Friendly Controls: Intuitive control panels and ergonomic design make the order picker easy to operate, reducing the learning curve and increasing productivity.

Compact and Maneuverable: The compact design allows for easy navigation through narrow aisles and confined spaces, making it perfect for busy warehouses and retail floors.


Specification


Size




ModelZDYT3-4.5HZDYT3-4.0HZDYT3-3.5HZDYT3-3.0HZDYT3-2.7H
Working Height6.50m6.00m5..50m5.00m4.70m
Platform Floor Heigh4.50m4.00m3.50m3.00m2.70m
Overall Length1.52m1.52m1.52m1.52m1.52m
Overall Width0.76m0.76m0.76m0.76m0.76m
Overall Height1.99m1.81m2.11m1.86m1.71m
Platform Size0.71m×0.80m
&0.65m×0.69m
0.71m×0.80m
&0.65m×0.69m
0.71m×0.80m
&0.65m×0.69m
0.71m×0.80m
&0.65m×0.69m
0.71m×0.80m
&0.65m×0.69m
Ground Clearance0.04m0.04m0.04m0.04m0.04m
Performance




S.W.L300kg300kg300kg300kg300kg
Max. Occupants11111
Turning Radius000

Travel Speed(Stowed)4.0km/h4.0km/h4.0km/h4.0km/h4.0km/h
Travel Speed(Raised)0.8km/h0.8km/h0.8km/h0.8km/h0.8km/h
Gradeability15-20%15-20%15-20%15-20%15-20%
Tyres(Drive Motors)230×80mm230×80mm230×80mm230×80mm230×80mm
Tyres(Front Wheels)230×80mm230×80mm230×80mm230×80mm230×80mm
Power




Drive Motors2×24VDC/0.5kw2×24VDC/0.5kw2×24VDC/0.5kw2×24VDC/0.5kw2×24VDC/0.5kw
Lifting Motor24VDC/1.2kw24VDC/1.2kw24VDC/1.2kw24VDC/1.2kw24VDC/1.2kw
Betteries2×12V/100Ah2×12V/100Ah2×12V/100Ah2×12V/100Ah2×12V/100Ah
Integrated Charger24V/15A24V/15A24V/15A24V/15A24V/15A
Weight




Weight730kg710kg650kg630kg610kg

Applications:


Warehousing and Inventory Management

Retail Stocking and Order Picking

Distribution Centers

Facility Management

Manufacturing and Assembly Lines


The Electric Aerial Order Picker with Hydraulic Steering offers a combination of efficiency, precision, and safety, making it an essential tool for optimizing workflow and enhancing productivity in various work environments.
