Self Propelled

Driveable Telescopic Lift

For product pricing, customization, or other inquiries:

CONTACT US

Share to:

Description

套筒升降机 (1).jpg

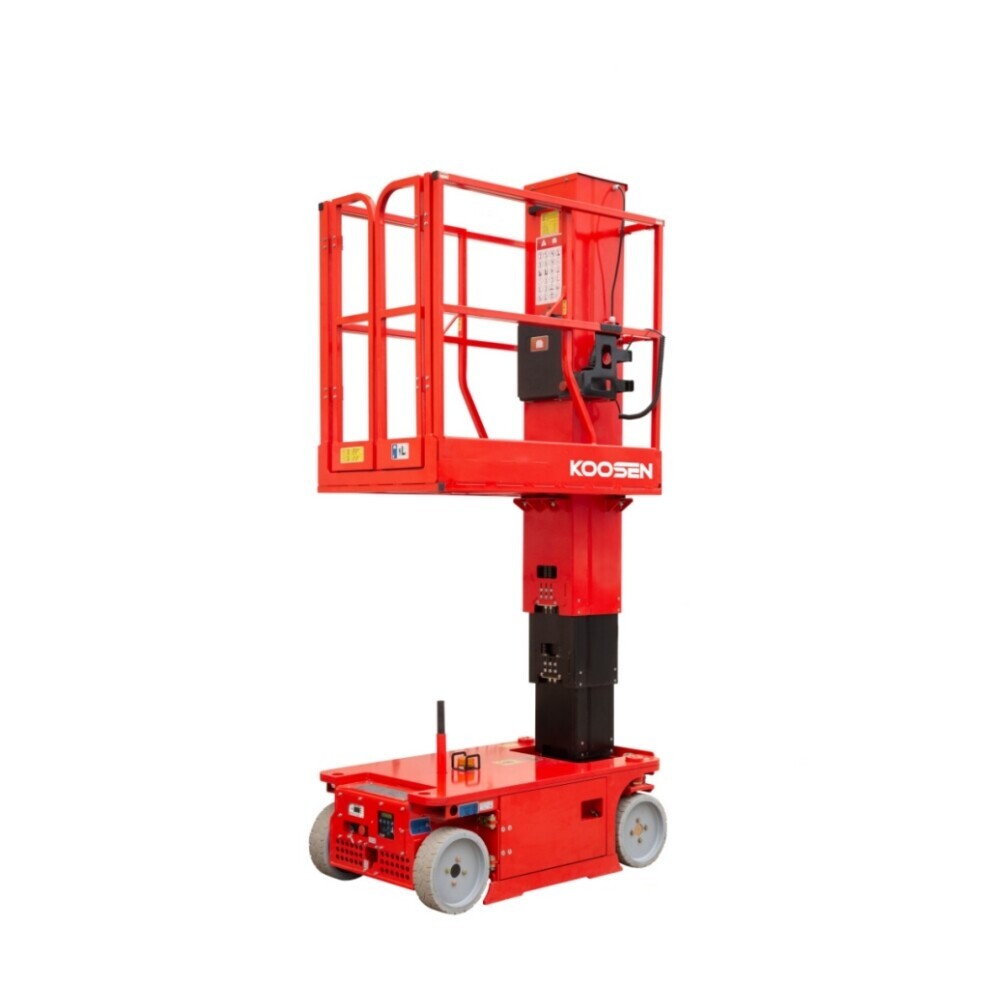

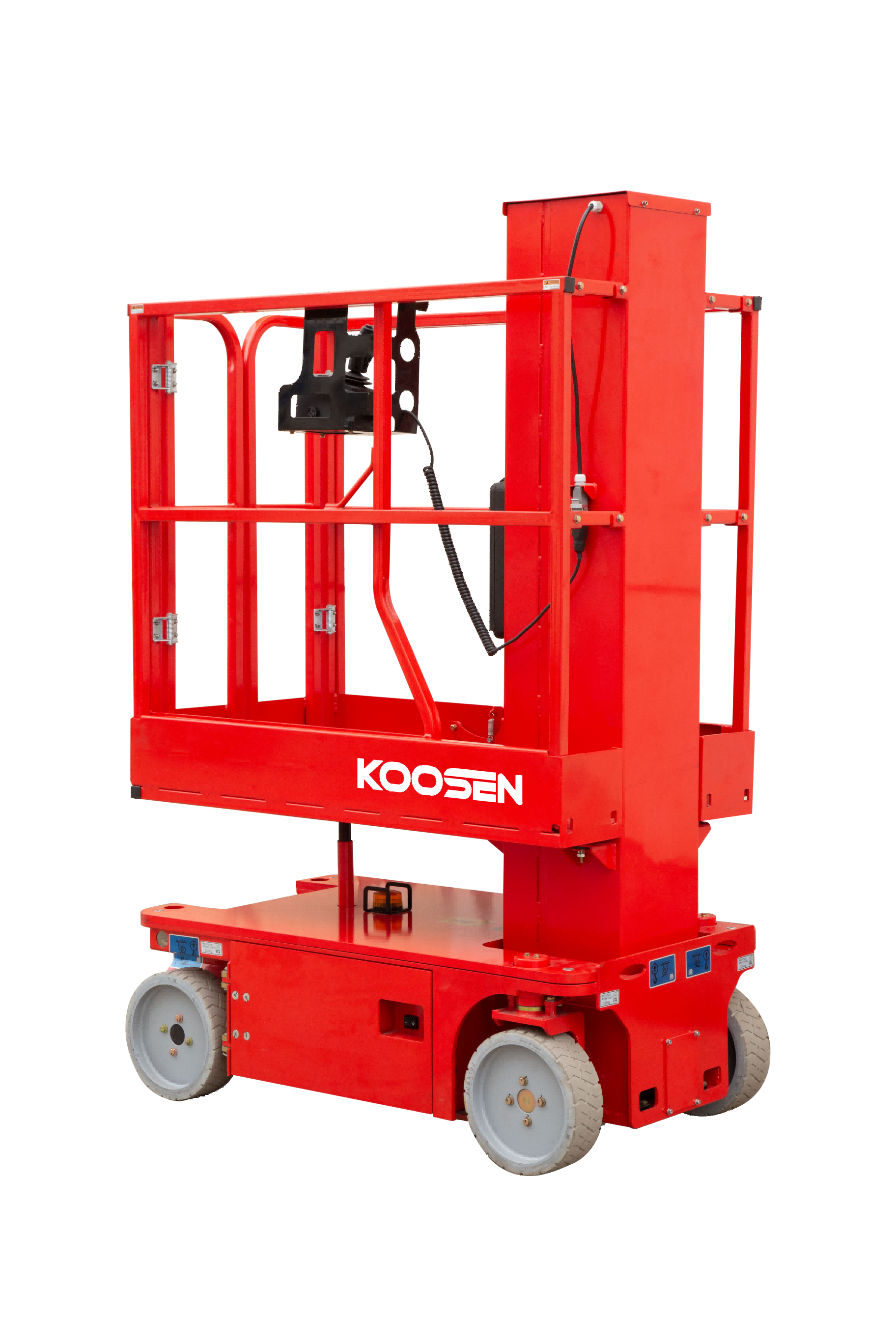

Driveable Telescopic Lift


The Driveable Telescopic Lift is an advanced access solution designed to offer superior reach and maneuverability for various elevated tasks. Engineered for both indoor and outdoor use, this lift provides unparalleled flexibility and efficiency, making it ideal for challenging work environments.


Key Features:


Extended Reach: The telescopic design allows for significant vertical , enabling access to hard-to-reach areas with ease.

Driveable Design: Equipped with a powerful drive system, this lift can be moved and positioned quickly and easily, enhancing productivity on the job site.

Precision Control: Advanced control systems offer smooth and precise movements, allowing for accurate positioning and safe operation at any height.

Robust and Stable: Built with a sturdy frame and platform, the lift ensures stability and safety, even at maximum extension. Safety features like emergency stop buttons and automatic leveling enhance operator security.

Versatile Application: Suitable for both indoor and outdoor environments, the lift is designed to handle a variety of tasks, from construction and maintenance to installations and inspections.

User-Friendly Interface: Intuitive controls and ergonomic design make the lift easy to operate, reducing the learning curve and increasing efficiency.


Applications:


Construction and Building Projects

Maintenance and Repairs

Electrical and Lighting Installations

Window Cleaning and Exterior Building Work

Industrial Inspections and Facility Management


The Driveable Telescopic Lift combines exceptional reach, mobility, and safety, providing a versatile and reliable solution for elevated work in diverse settings





Specification



MODELAMWP3.6-3000AMWP4.8-3000AMWP6.0-3000
Max. Working Height5.6m6.8m8.0m
Max. Platform Height3.6m4.8m6.0m
Loading Capacity230kg230kg160kg
Ext. Platform Capacity114kg114kg114kg
Overall Length1.36m1.36m1.36m
Overall Width0.76m0.76m0.76m
Overall Height1.7m1.98m1.98m
Platform Dimension1.3m x 0.70m1.3m X 0.70m1.3m X 0.70m
Ext. Platform Length0.51m0.51m0.51m
Wheel Base1.04m1.04m1.04m
Inner Turning Radius0m0m0m
Outer Turning Radius1.4m1.4m1.4m
)Travel Speed(Stowed)4km/h4km/h4km/h
Travel Speed(Raised)l.lkm/hl.lkm/hl.lkm/h
Up/Down Speed31/32sec41.5/42sec50/61sec
Gradeability25%25%25%
Drive Tyres305X100mm305X100mm305X100mm
Drive Motors2X24VDC/0.5kW2X24VDC/0.5kW2X24VDC/0.5kW
Lifting Motor24VDC/1.3kW24VDC/1.3kW24VDC/1.3kW
Battery2X12V/100Ah2X12V/100Ah2X12V/100Ah
Charger24V/15A24V/15A24V/15A
Weight810kg980kg1070kg
