Description

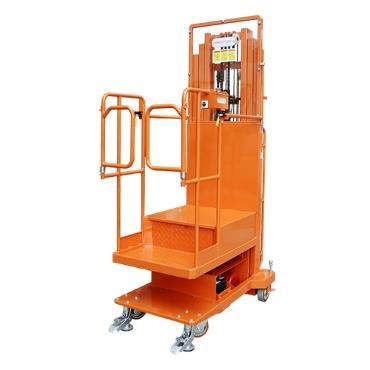

Semi Order Picker


The Semi Order Picker is a versatile and efficient solution designed to streamline order picking and inventory management tasks in warehouses and distribution centers. This innovative equipment combines the functionality of an order picker with the flexibility of a semi-electric design, offering enhanced productivity and ease of use.


Key Features:


Dual Functionality: Combines the maneuverability of an electric lift with the versatility of manual propulsion, allowing operators to navigate smoothly and efficiently through aisles and storage racks.

Electric Lifting: Powered lifting mechanism facilitates quick and easy access to items stored at various heights, improving operational efficiency and reducing strain on workers.

Maneuverability: Compact and agile design enables the Semi Order Picker to navigate tight spaces and narrow aisles with ease, optimizing floor space utilization in busy warehouse environments.

Safety and Stability: Equipped with safety features such as anti-slip platform, safety rails, and emergency stop buttons, ensuring a secure working environment for operators at elevated positions.

User-Friendly Controls: Intuitive control panel allows for straightforward operation, minimizing training time and enhancing operator productivity.

Durable Construction: Robust build quality and durable components ensure long-term reliability and minimal maintenance requirements, maximizing uptime and operational efficiency.


Applications:


Order Picking and Fulfillment

Inventory Management

Retail and Wholesale Distribution

E-commerce Fulfillment Centers

Manufacturing and Production Facilities


The Semi Order Picker combines functionality, maneuverability, and safety, making it an ideal choice for optimizing warehouse operations and improving overall efficiency in logistics and supply chain management.



Specification



Size


ModelDYT2-4.5SWDYT2-3.7SWDYT2-2.7SW
Working Height6.50m5.70m4.70m
Platform Floor Height4.50m3.70m2.70m
Overall Length1.30m1.30m1.30m
Overall Width0.84m0.84m0.84m
Overall Height1.98m1.98m1.98m
Platform Size0.63m×0.62m0.63m×0.62m0.63m×0.62m
Ground Clearance0.04m0.04m0.04m
Wheel Base0.95m0.95m095m
Performance


ModelDYT2-4.5SWDYT2-3.7SWWDYT2-2.7SW
S.W.L200kg200kg200kg
Max. Occupants111
Up/Down Speed30/17 sec33/18 sec22/12 sec
Tyres(Back Wheels)152×55mm152×55mm152×55mm
Tyres(Front Wheels)6 in6 in6 in
Power


ModelDYT2-4.5SWDYT2-3.7SWDYT2-2.7SW
Lifting Motor12VDC/1.6kW12VDC/1.6kW12VDC/1.6kW
Betteries1X12V/120Ah1X12V/120Ah1X12V/120Ah
Integrated Charger12V/15A12V/15A12V/15A
Weight


ModelDYT2-4.5SWDYT2-3.7SWDYT2-2.7SW
Weight450kg420kg360kg
