Trailer Mounted Boom Lift

For product pricing, customization, or other inquiries:

CONTACT US

Share to:

Description

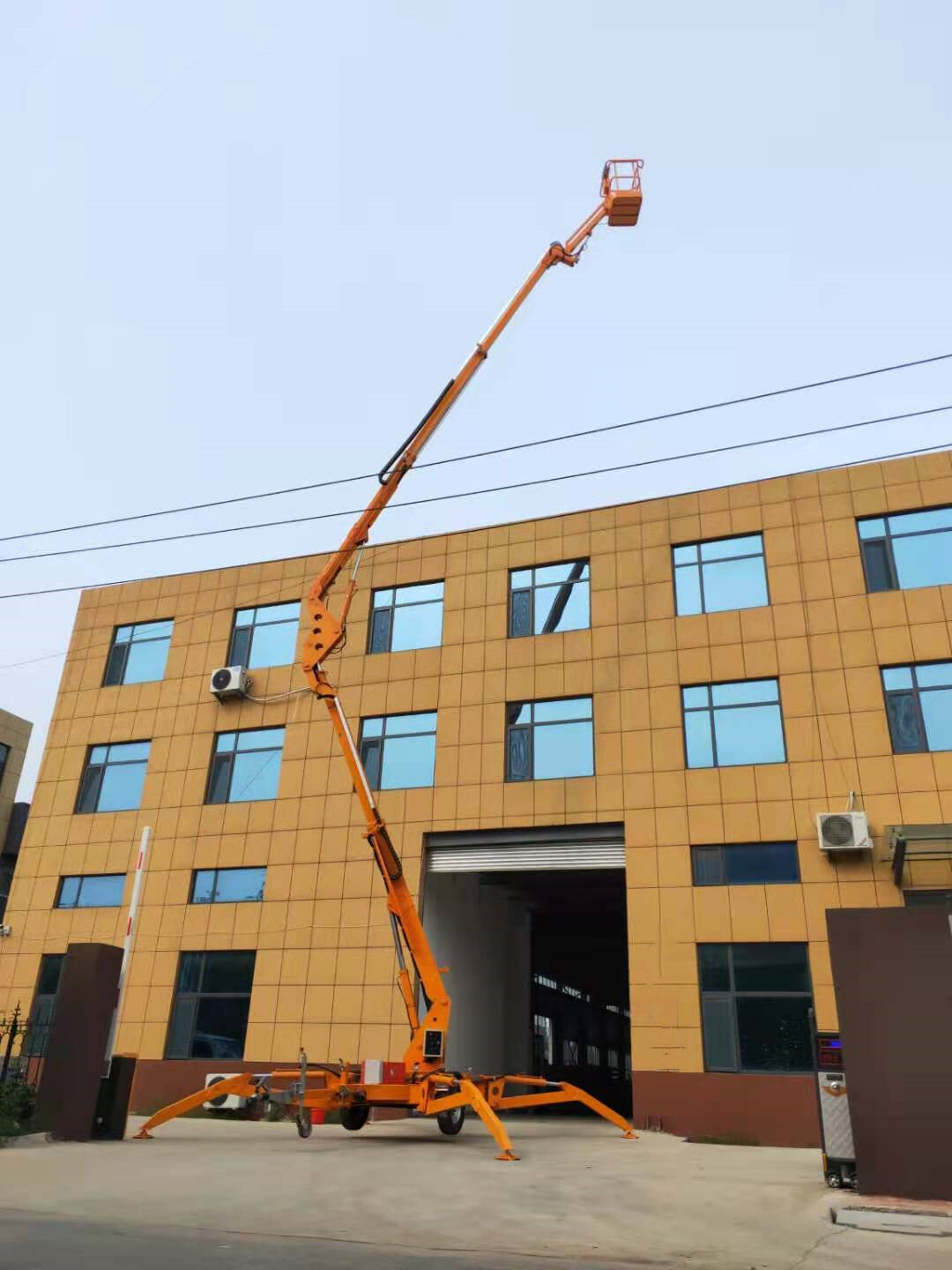

Towable boom lift361.jpg

Introducing our advanced Spider Lift, designed to tackle even the most challenging elevation tasks with ease and efficiency. This state-of-the-art lift combines cutting-edge technology with user-friendly features to ensure optimal performance and safety.


Key Features:


Versatile Reach: With an impressive reach height and extendable arms, it can access difficult areas with precision.

Stable Support: Equipped with robust outriggers for enhanced stability, ensuring safe operation on various terrains.

Compact and Mobile: Lightweight and easy to transport, it can be quickly set up and maneuvered in tight spaces.

Advanced Controls: Intuitive control panel for smooth and accurate positioning, enhancing operational efficiency.

Safety First: Built-in safety features, including emergency stop buttons and secure harness points, prioritize user safety.


Ideal for construction, maintenance, and outdoor projects, our Spider Lift offers unparalleled flexibility and reliability to help you reach new heights with confidence.



Specification



ModelKTGZ0.2-8KTGZ0.2-10KTGZ0.2-12KTGZ0.2-14KTGZ0.2-16
Platform size1.2x0.8m1.2x0.8m1.2x0.8m1.2x0.8m1.2x0.8m
Lift height8.0m(32.8ft)10.0m(32.8ft)12.0m(45.93ft)14.0m(45.93ft)16.0m(52.49ft)
Max. work height10m12m14m16m18m
Lift capacity200kg(440lbs)200kg(440lbs)200kg(440lbs)200kg(440lbs)200kg(440lbs)

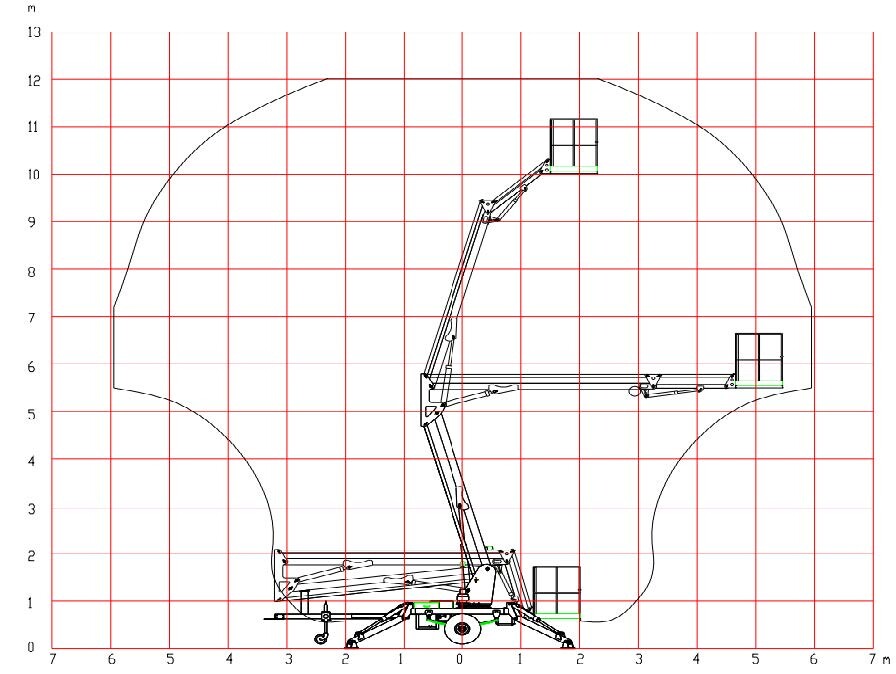

Horizontal reach4.50m5.70m6.40m8.50m9.50m
Platform levelingAutomatical leveling
Turntable swing360°non-continuous turntable rotation
Jib rotation160°160°160°160°160°
Power(Standard)Electric 220V AC power; as request
Dimension5.2*1.6*1.9m5.4*1.6*1.9m6.4*1.6*1.9m6.0*1.7*2.1m7.0*1.73*2.2m
Anti wind grade≤5≤5≤5≤5≤5
Self-weight1538kg1600kg1800kg2350kg2900kg
Optional PowerDiesel engine/ Battery
