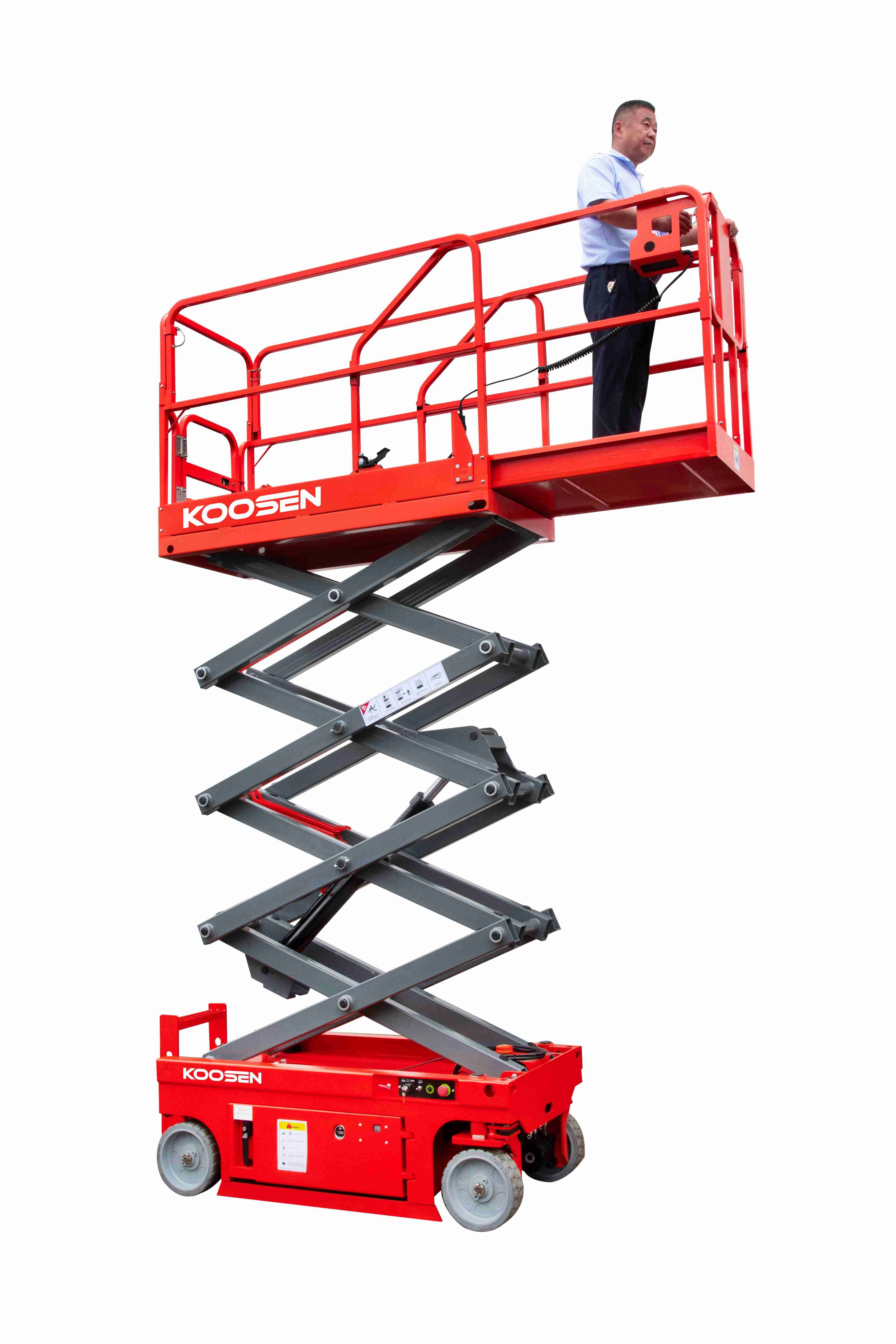

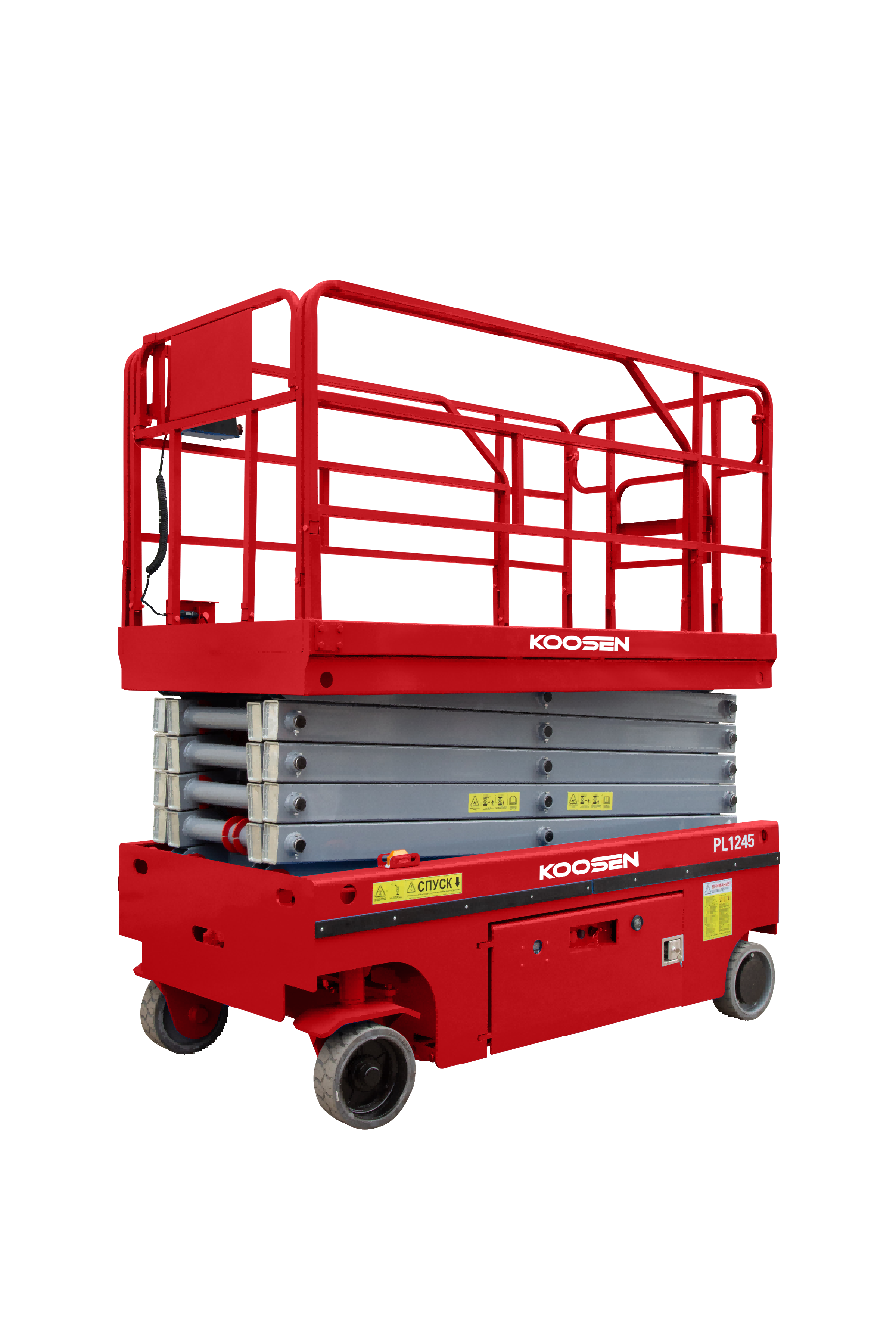

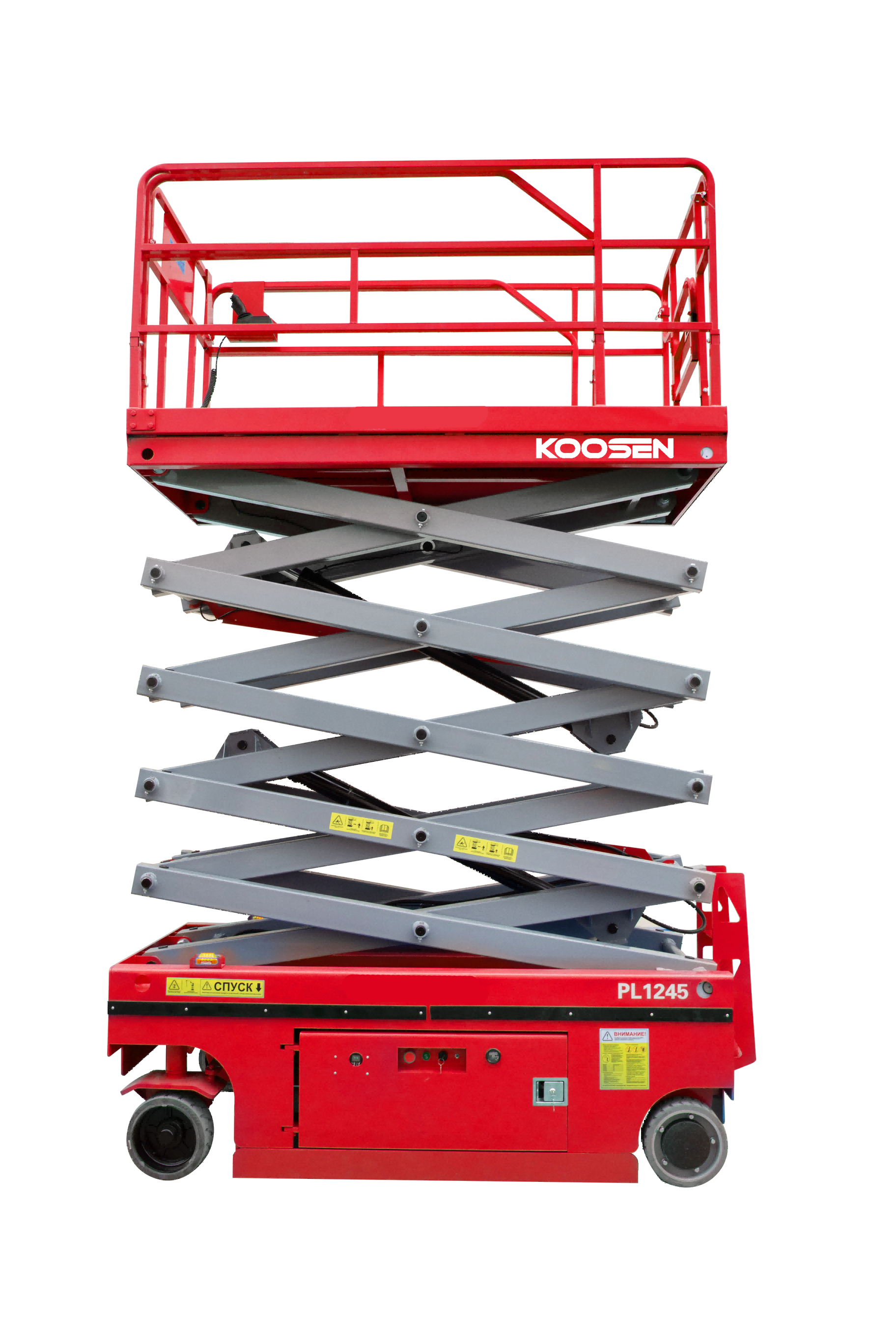

Electric Drive Self-Propelled Scissor Lift
The Electric Drive Self-Propelled Scissor Lift is a cutting-edge solution designed for efficient and eco-friendly elevated work in both indoor and outdoor settings. With its advanced electric drive system, this lift offers seamless maneuverability, quiet operation, and zero emissions, making it an ideal choice for a wide range of applications.
Key Features:
Eco-Friendly Operation: Powered by an electric drive system, this lift produces zero emissions, contributing to a cleaner and greener work environment.
Superior Maneuverability: The self-propelled design allows for easy and precise movement, even in confined spaces, enhancing productivity and efficiency on the job.
Quiet Performance: The electric motor operates quietly, making it perfect for noise-sensitive areas such as hospitals, schools, and office buildings.
Enhanced Safety: Equipped with non-marking tires, automatic pothole protection, and multiple safety features, this lift ensures a secure and stable platform for workers at various heights.
Long Battery Life: High-capacity batteries provide extended operation times, reducing downtime and increasing overall efficiency.
User-Friendly Controls: Intuitive control panels and ergonomic design make operation straightforward and comfortable for users.
Applications:
Indoor Maintenance and Repairs
Construction and Renovation Projects
Facility Management
Warehousing and Logistics
Retail and Commercial Installations
The Electric Drive Self-Propelled Scissor Lift combines innovation with practicality, delivering a reliable and sustainable solution for all your elevated access needs.
Specification
| Model | JCPT0623 | JCPT 0823 | JCPTH0823 | JCPT 0923 | JCPT 1023 | JCPT1223 | JCPT 1423 |
| Maximum working height, m | 6 | 8 | 7.8 | 9.3 | 10 | 12 | 14 |
| Maximum platform height, m | 4 | 6 | 5.8 | 7.3 | 8 | 10 | 12 |
| Load capacity for indoor use, kg | 230 | 230 | 230 | 230 | 230 | 230 | 230 |
| Internal size of the working platform, m | 1.7*0.75 | 2.34*0.81 | 1.67*0.74 | 1.67*0.74 | 2.34*0.81 | 2.34*0.81 | 2.34*0.81 |
| Platform length, m | 1.7 | 2.34 | 1.67 | 1.81 | 2.34 | 2.34 | 2.34 |
| Platform width, m | 0.75 | 0.81 | 0.76 | 0,76 | 0.81 | 0.81 | 0.81 |
Folded lift height, m
( scissors are down the barrier is up) | 2.1 | 1.37 | 1.72 | 2.16 | 2.2 | 2.35 | 2.45 |
| Max. (overall) height barrier is stowed, m | 1.65 | 2.07 | 1.98 | 1.82 | 1.72 | 1.92 | 1.92 |
| Platform length with retractable section, m | 2.2 | 3.235 | 2.57 | 2,57 | 3.255 | 3.255 | 3.255 |
| extended platform length | 0.5 | 0.9 | 0.9 | 0.9 | 0.92 | 0.92 | 0.92 |
| Load capacity on a retractable platform, kg | 120 | 120 | 113 | 113 | 120 | 120 | 120 |
| Package Size, m | 2.2*0.75*1.65 | 2.34*0.81*2.1 | 1.67*0,81*2,52 | 1.67*0.74*1,82 | 2.34*0.81*1,72 | 2.34*0.81*1,92 | 2.34*0.81*1,92 |
| Maximum ground clearance, mm | 80 | 100 | 90 | 90 | 120 | 120 | 120 |
| External turning radius, m | 1.6 | 2.20 | 1.64 | 1,64 | 2.2 | 2.2 | 2.2 |
| Wheelbase, m | 1.4 | 1.89 | 1.76 | 1.76 | 1.89 | 1.89 | 1.89 |
| Weight, kg | 1100 | 1760 | 1400 | 1500 | 2000 | 2200 | 2390 |
Maximum number of people per platform for
indoor use | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Maximum number of people per outdoor
platform | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Source of power / Type of battery | 24v | 24V | 24 | 24 | 24v | 24V | 24V |
| Hydraulic tank volume, l | 20 | 20 | 20 | 20 | 25 | 25 | 25 |
| Batteries (power) | 2*12V-200AH | 4*6V/300AH | 2*12V/200AH | 4*6V/300AH | 4*6V/300AH | 4*6V/300AH | 4*6V/300AH |
| Charger | 24V/35A | 24V/35A | 24V/35A | 24V/35A | 24V/35A | 24V/35A | 24V/35A |
| Raising Motor | 24V/2.2kw | 24V/3.0kw | 24V/2.2KW | 24V/2.2KW | 24V/3.0kw | 24V/3.0kw | 24V/3.0kw |
| driving motor | 24V/0.5kw*2 | 24V/0.50kw*2 | 24V/0.5kw*2 | 24V/0.5kw*2 | 24V/0.5kw*2 | 24V/0.5kw*2 | 24V/0.5kw*2 |
| The maximum overcome longitudinal slope | 20 | 25 | 25 | 25 | 25 | 25 | 25 |
| Tires | 310*100 | 310*100 | 305*100 | 305*100 | 310*100 | 310*100 | 310*100 |
| Empty platform lifting time, s | 30 | 40 | 50 | 50 | 50 | 55 | 55 |
| Empty platform lowering time, s | 30 | 40 | 50 | 50 | 50 | 55 | 55 |
| Movement at minimum speed, km/h | 0.8 | 0.8 | 1 | 1 | 0.8 | 0.8 | 0.8 |
| High speed, km/h | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Drive unit | 4*2 | 4*2 | 4*2 | 4*2 | 4*2 | 4*2 | 4*2 |
| Travel speed in folded position, km/h | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Movement speed in the raised position, km/h | 0.8 | 0.8 | 1 | 1 | 0.8 | 0.8 | 0.8 |
