Self Propelled

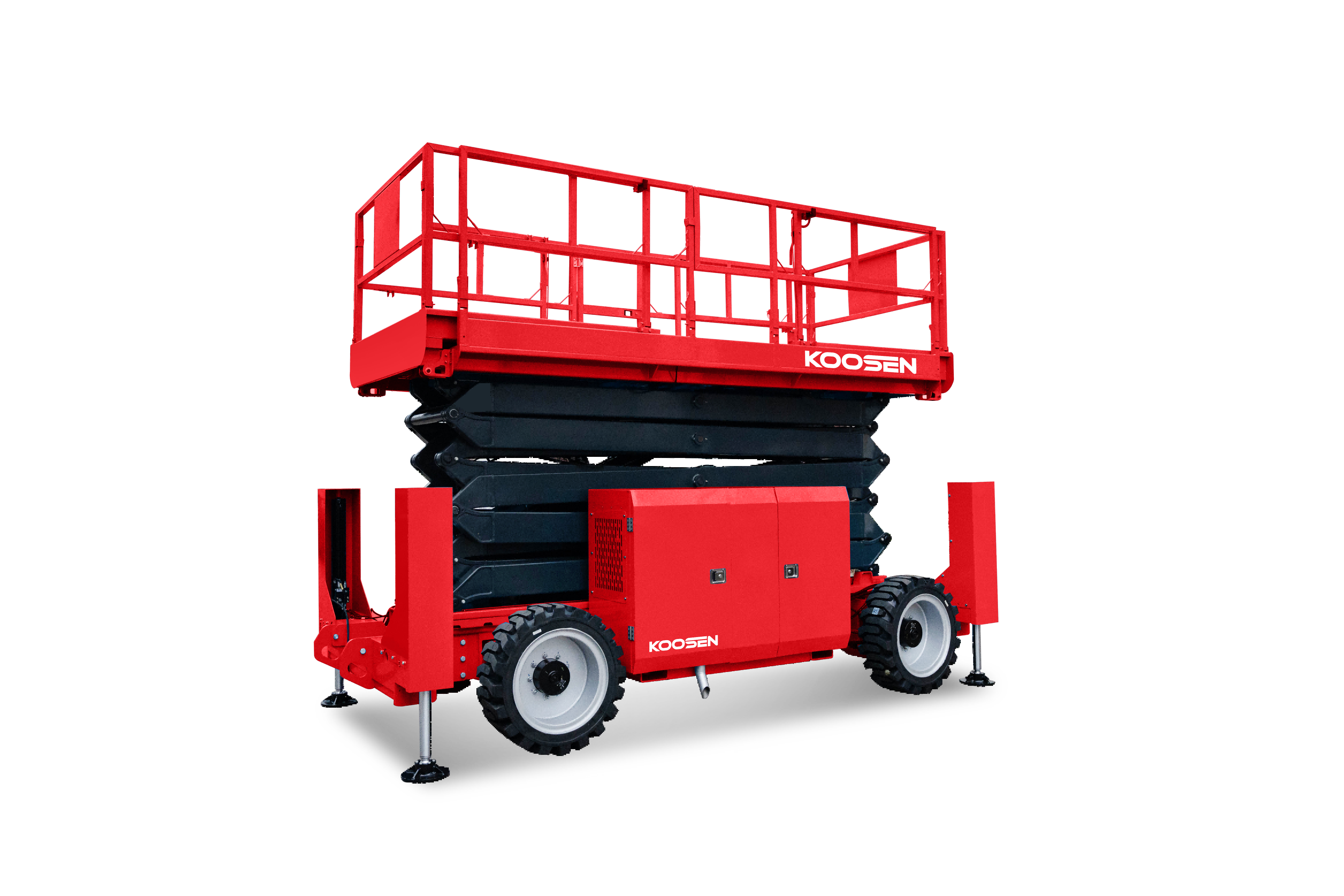

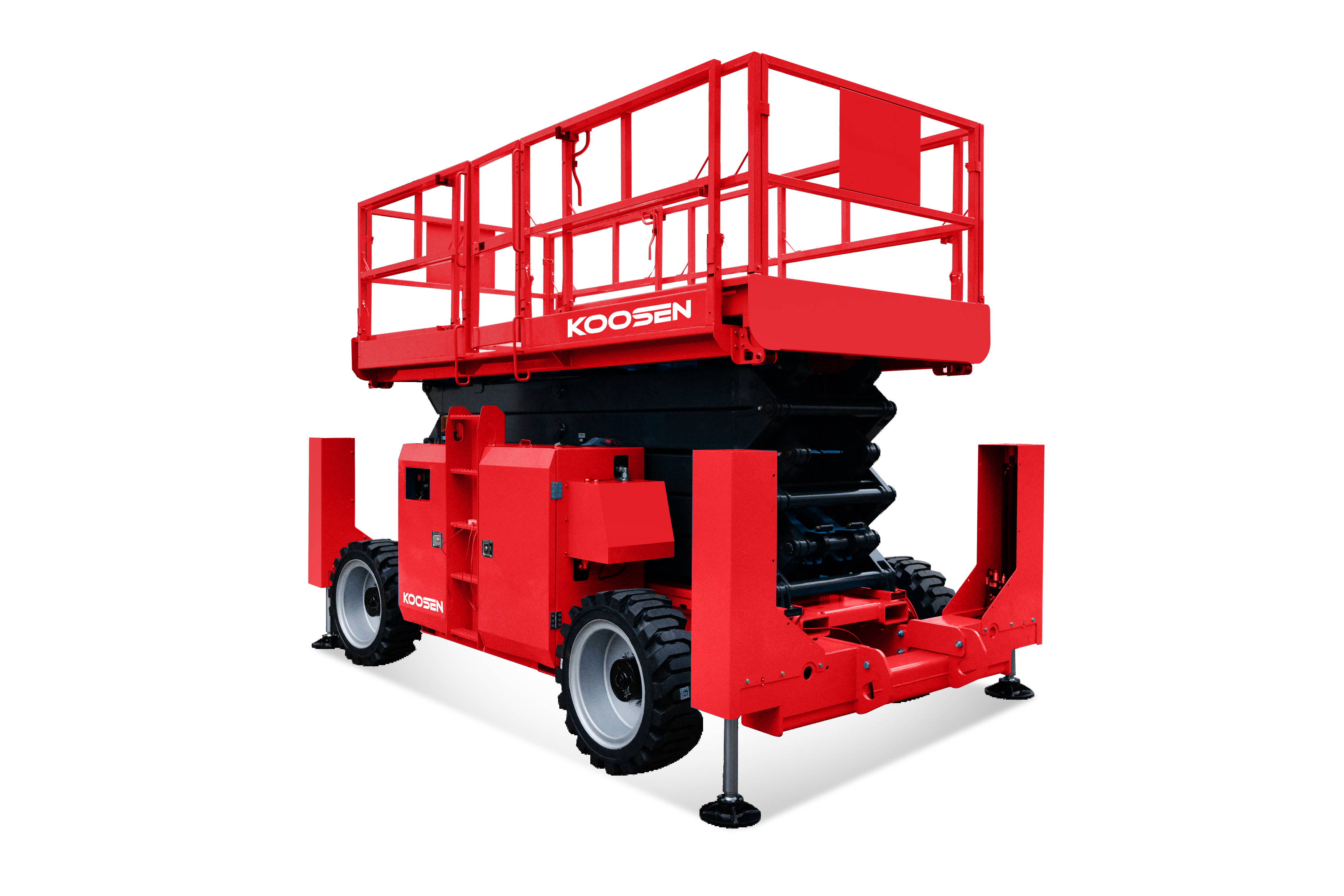

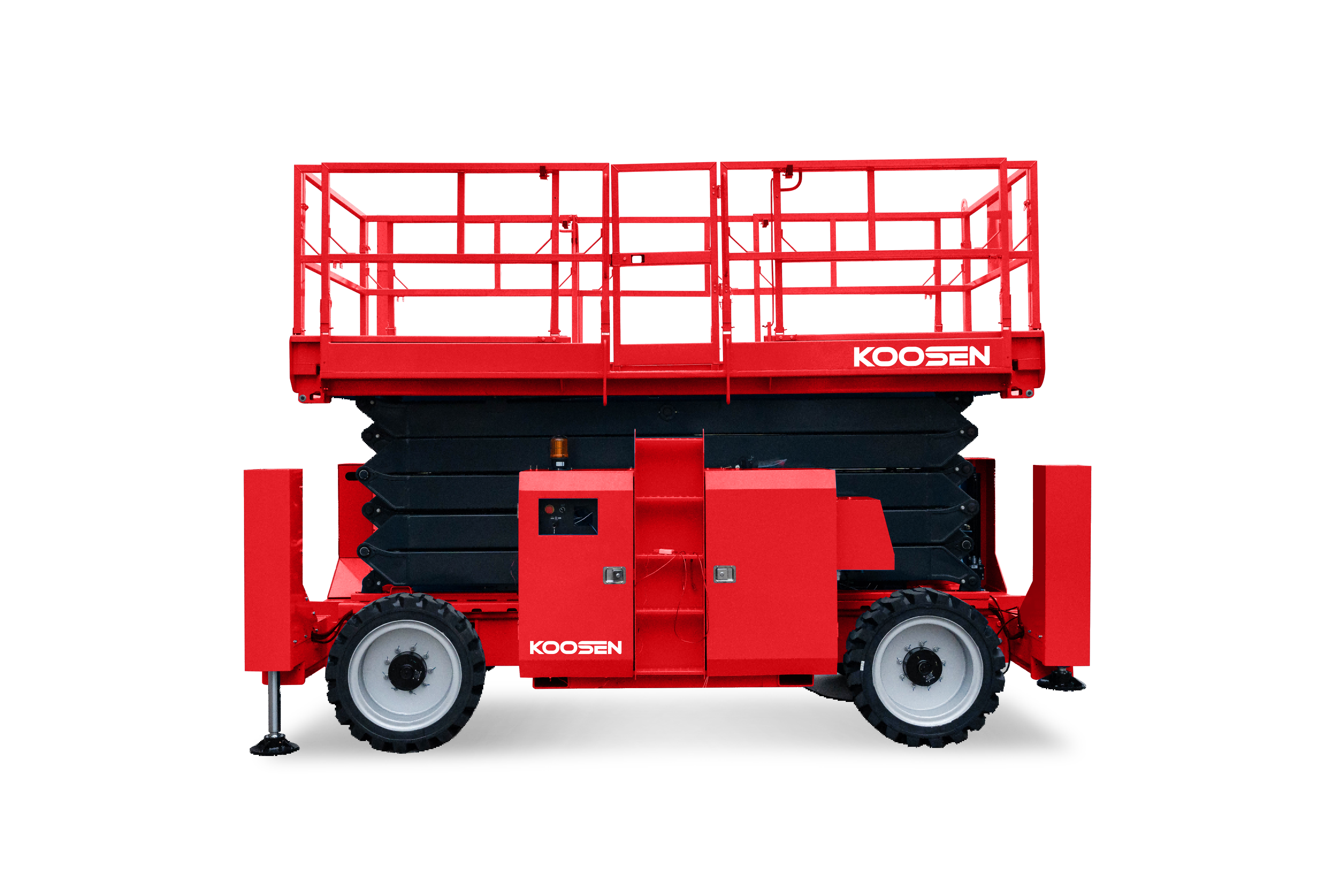

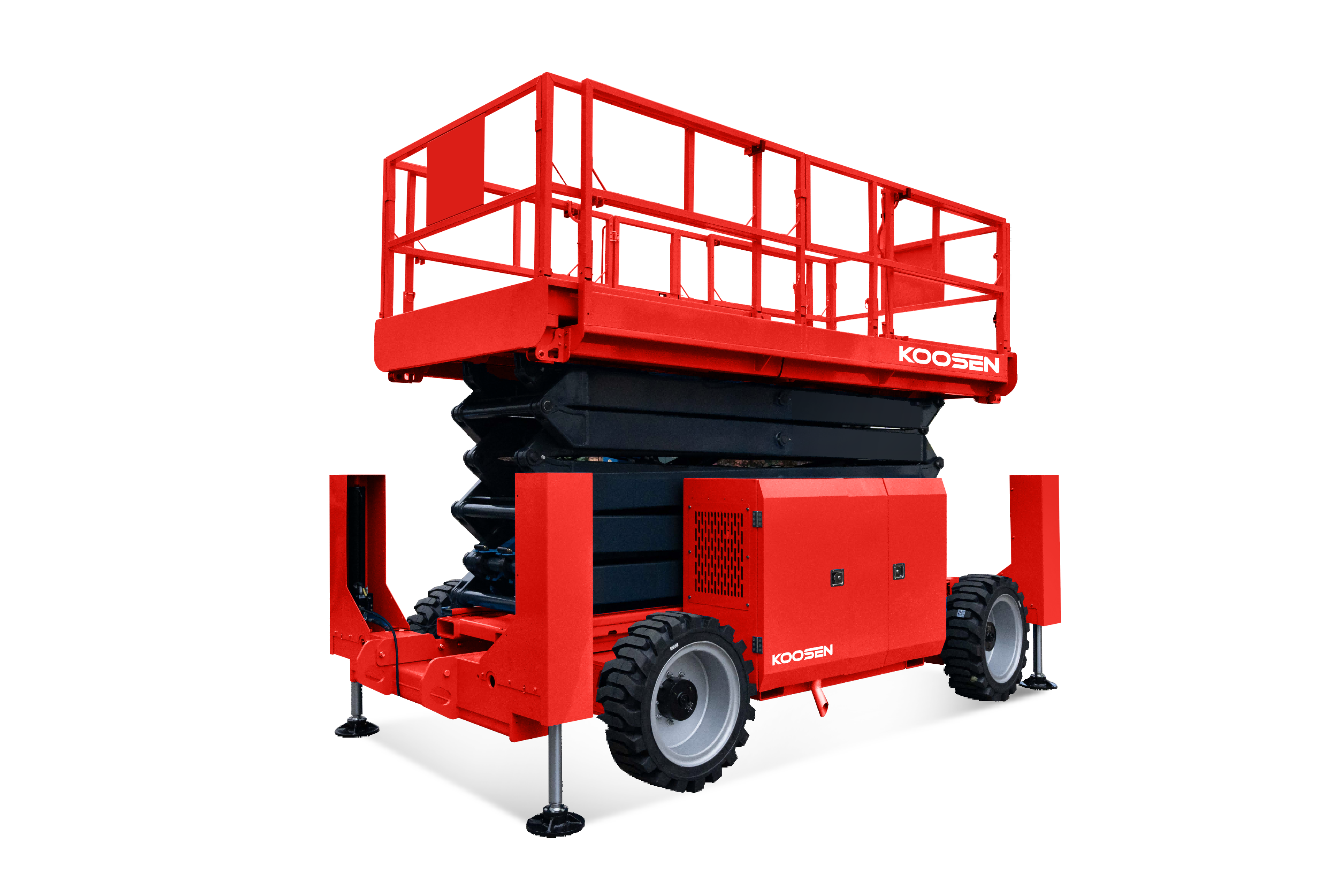

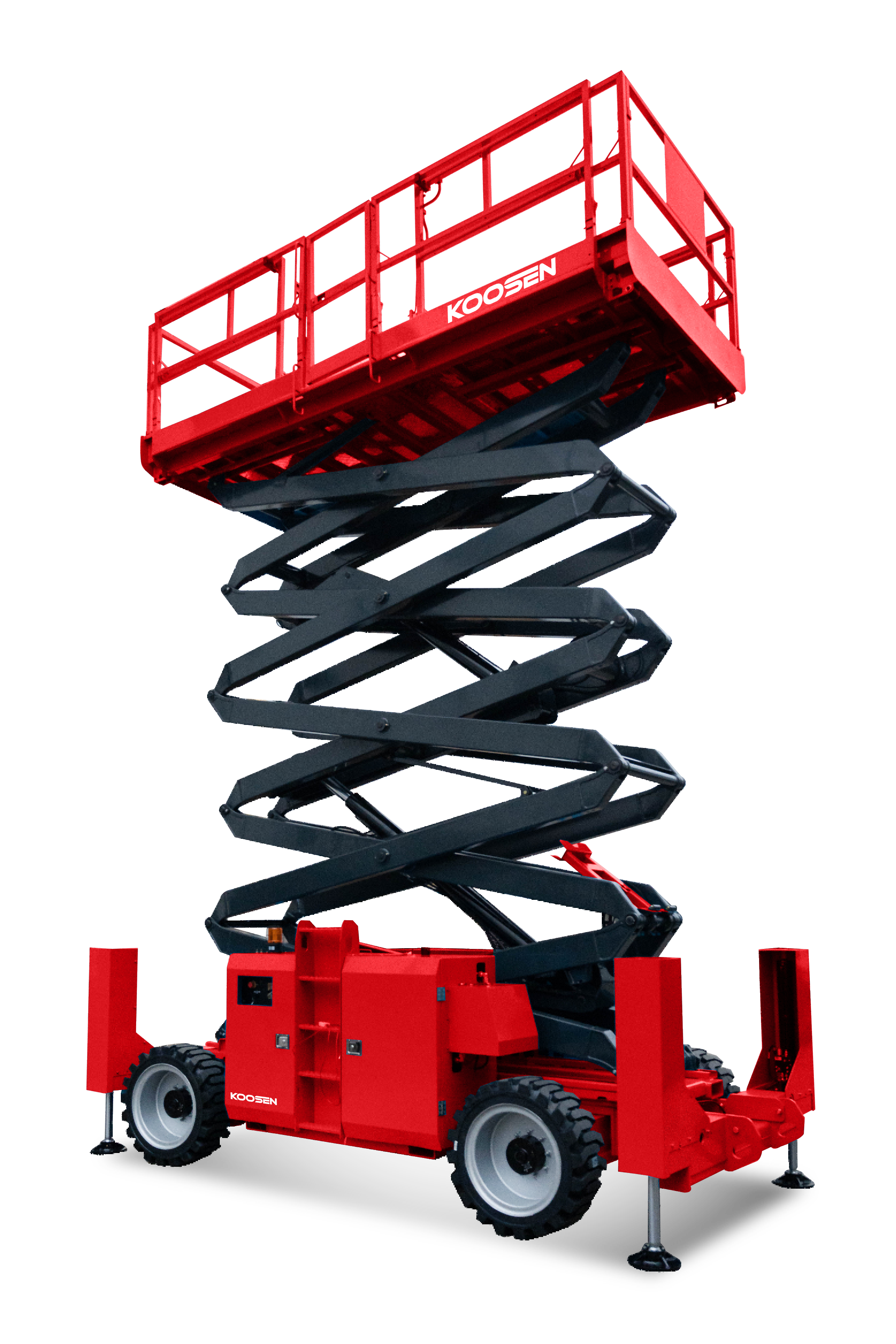

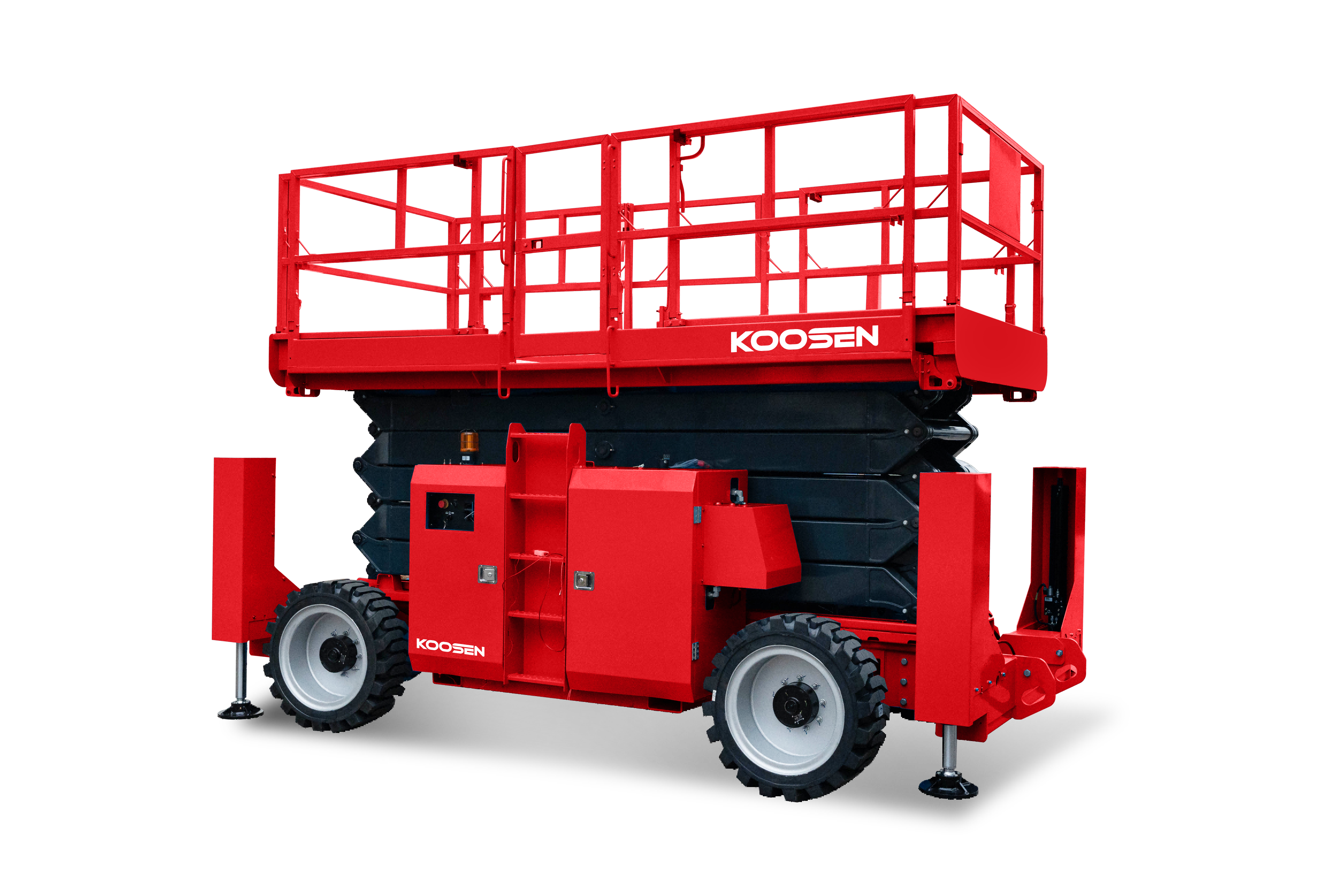

Diesel Scissor Lift Platform

For product pricing, customization, or other inquiries:

CONTACT US

Share to:

Description




Heavy Duty Diesel Scissor Lift Platforms


Heavy Duty Diesel Scissor Lift Platforms are powerful and robust access solutions engineered for demanding outdoor environments and heavy-duty applications. Designed to handle substantial loads and reach impressive heights, these lifts are essential for construction, maintenance, and industrial projects.


Key Features:


High Load Capacity: Built to support heavy loads, these platforms can accommodate multiple workers, tools, and materials, making them ideal for construction and industrial tasks.

Impressive Elevation: Capable of reaching significant heights, they provide access to high and hard-to-reach areas safely and efficiently.

Diesel Power: Equipped with a powerful diesel engine, these lifts deliver consistent performance and reliability in rugged outdoor settings.

Sturdy Construction: Engineered for durability, the robust frame and reinforced platform ensure stability and safety even in challenging conditions.

Terrain Versatility: With rugged tires and enhanced ground clearance, these lifts can navigate uneven and rough terrains, including construction sites and industrial zones.

Safety Features: Integrated safety mechanisms such as emergency stop buttons, guardrails, and stabilizers enhance operator security.


Applications:


Construction and Building Projects

Heavy Industrial Maintenance

Outdoor Installations and Repairs

Bridge and Infrastructure Work

Mining and Energy Sector Operations


Heavy Duty Diesel Scissor Lift Platforms offer unmatched performance, strength, and reliability, making them indispensable for large-scale and demanding outdoor tasks.



Specification



ModelGTBZ14GTBZ15GTBZ18
Maximum working height (m)14.0 1518
Maximum platform height  (m)12.0 1316
Platform loading capacity kg380680680
Extended platform load capacity kg120230230
Length (without legs/with legs)  (m)2.9/3.574.2/4.814.2/4.81
Width  (m)1.752.282.28
Collecting height  (m)2.773.033.25
Stowed height (guardrail folded)  (m)//2.56
Wheelbase  (m)2.22.842.84
Minimum ground clearance  (m)0.20.230.23
Platform size (L×W)  (m)2.9×1.53.95×1.833.95×1.83
Platform extension size  (m)1.11.22/1.521.22/1.52
Minimum turning radius  (m)1.83/4.252.78/4.952.78/4.95
Traveling speed when fully retracted km/h46.36.3
Travel speed when lifting km/h0.81.11.1
Maximum permissible working angle
Climbing degree19.3°(35%)26.57°(45%)21.8°(40%)
Solid tire specification26-12x16.533×12-2033×12-20
Weight kg475073508850
Fuel tank volume L85115115
Hydraulic oil tank volume L62170170
Driving mode4×44×4×24×4×2
EngineYanmar                     3TNV82-SNN-ASMYanmar                     4TNV94L-B×PHZYanmar                  4TNV94L-B×PHZ
Rated engine power15.5Kw/2200rpm35.5Kw/2600rpm35.5Kw/2600rpm
