Diesel

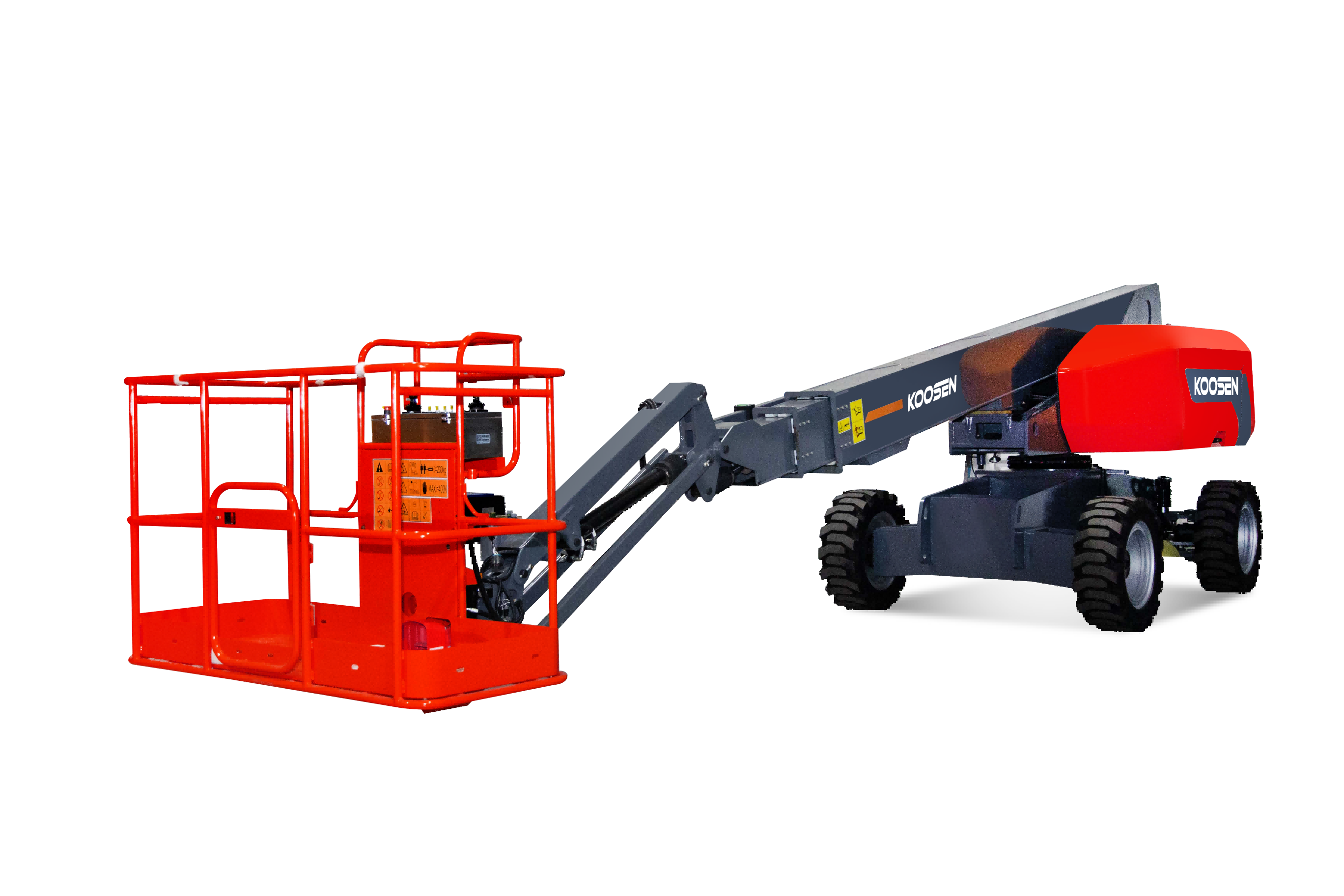

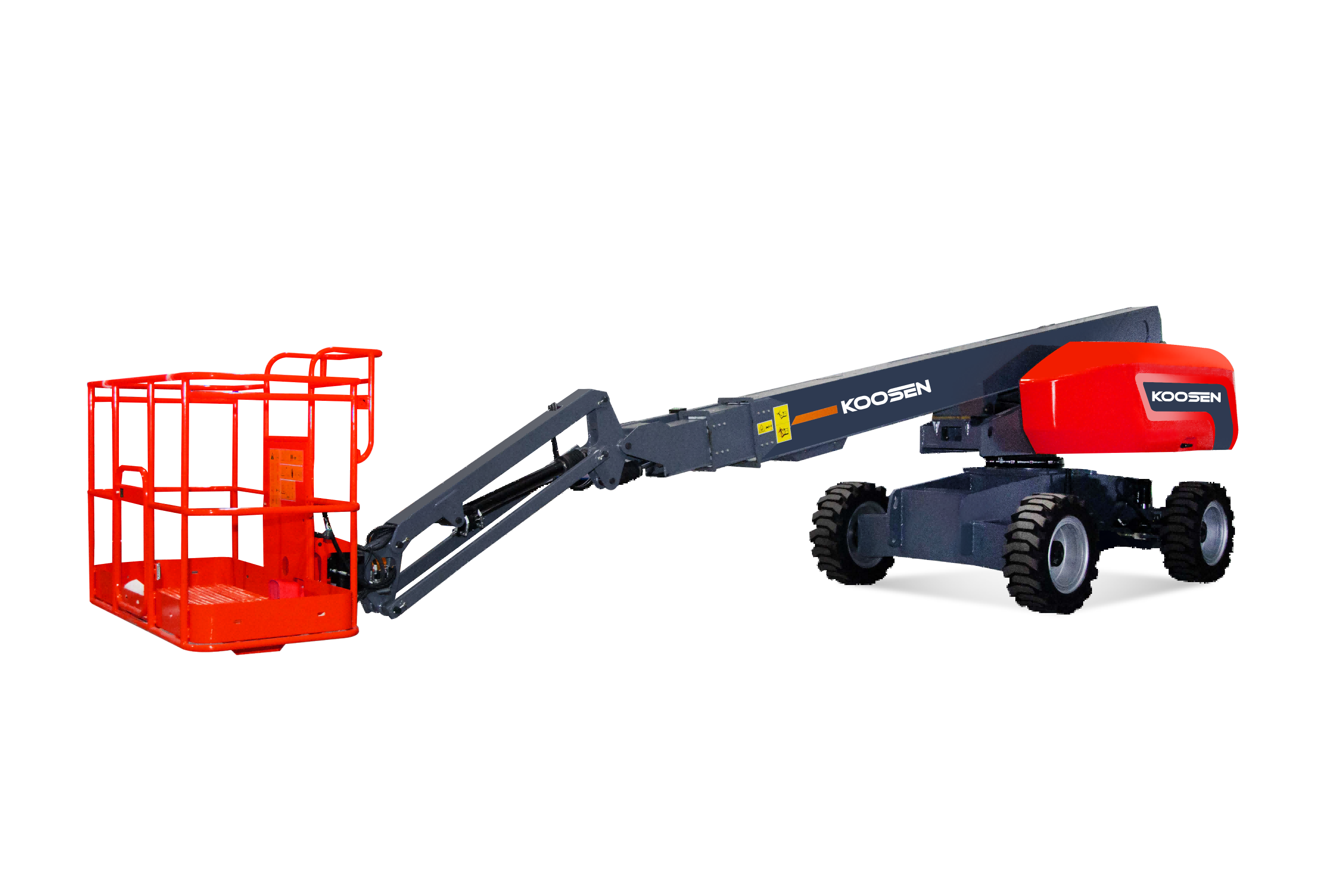

boom lift straight arm GTBZ-19DJ

For product pricing, customization, or other inquiries:

CONTACT US

Share to:

Description

Reach New Heights with Our Self-Propelled Telescopic Boom Lift!


Introducing the ultimate solution for all your elevated work needs—the Self-Propelled Telescopic Boom Lift. Engineered for versatility, efficiency, and safety, this boom lift empowers you to tackle even the most challenging jobs with ease.


Key Features:

Extended Reach: With a telescopic arm that extends up to [specific height], you can access hard-to-reach areas effortlessly.

Self-Propelled Mobility: Navigate through tight spaces and rough terrains smoothly, thanks to its robust self-propelled design.

Enhanced Safety: Equipped with state-of-the-art safety features including automatic leveling, emergency stop functions, and fall protection systems.

User-Friendly Controls: Operate with precision and ease using intuitive control panels and joystick functionality.

Durable Construction: Built to withstand tough working conditions, our boom lift ensures long-lasting performance and reliability.

Applications:

Construction Sites: Ideal for high-rise building projects, maintenance, and inspections.

Warehousing: Perfect for inventory management, equipment installation, and overhead repairs.

Outdoor Maintenance: Great for tree trimming, billboard installations, and more.

Experience the difference with our Self-Propelled Telescopic Boom Lift. Maximize productivity, enhance safety, and conquer new heights with confidence.



Specification



ModelGTBZ-19DJGTBZ-22DJGTBZ-26DJGTBZ-28DJ
Working height maximum 21m24m28m29.8m
Platform height maximum 19m22m26m27.8m
Horizontal height maximum 14.9m14m/15.8m16m/18m17.8m/20m
Length -stowed 9.5m10.8m12.5m13.1m
Width-stowed 2.28m 2.49m2.49m2.49m
Height-stowed 2.65m2.7m 2.9m2.9m
Platform size(LxW) 1.83m*0.76m2.44m*0.91m2.44m*0.91m*1.1m2.44m*0.91m
Wheel base 2.44m2.51m3m3m
Ground clearance(center)0.45m0.45m0.43m0.43m
Lift capacity 250kg 300kg/460kg300kg/460kg300kg/460kg
Max platform occupancy 2222
Drive speed-stowed (max) 5.1km/h 5.1km/h 5.2km/h 5.1km/h
Drive speed-raised (max) 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Gradeability-stowed 45%45%45%45%
Turning radius-inside ----
Turning radius-inside 3.42m 2.4m2.5m2.5m
Turning radius-outside ----
Turning radius-outside 6.21m 5.6m5.98m5.98m
Turning tail-swing 1.36m 1.4m1.48m1.48m
Working slope maximum
Tyre36*14-2036*14-20385/65-24385/65-24
Power source YANMARCumminsCumminsCummins
Feul Tank 110L160L160L160L
Drive & steering4WD*2WS4WD*2WS4WD*2WS4WD*2WS
Sound pressure level(ground workstation)≤82dBA≤82dBA≤82dBA≤82dBA
Standard10200kg12200kg16100kg17200kg
