Self Propelled

Mini Electric Scissor lifts-Universal Steering

Mini Electric Scissor lifts-Universal Steering

For product pricing, customization, or other inquiries:

CONTACT US

Share to:

Description

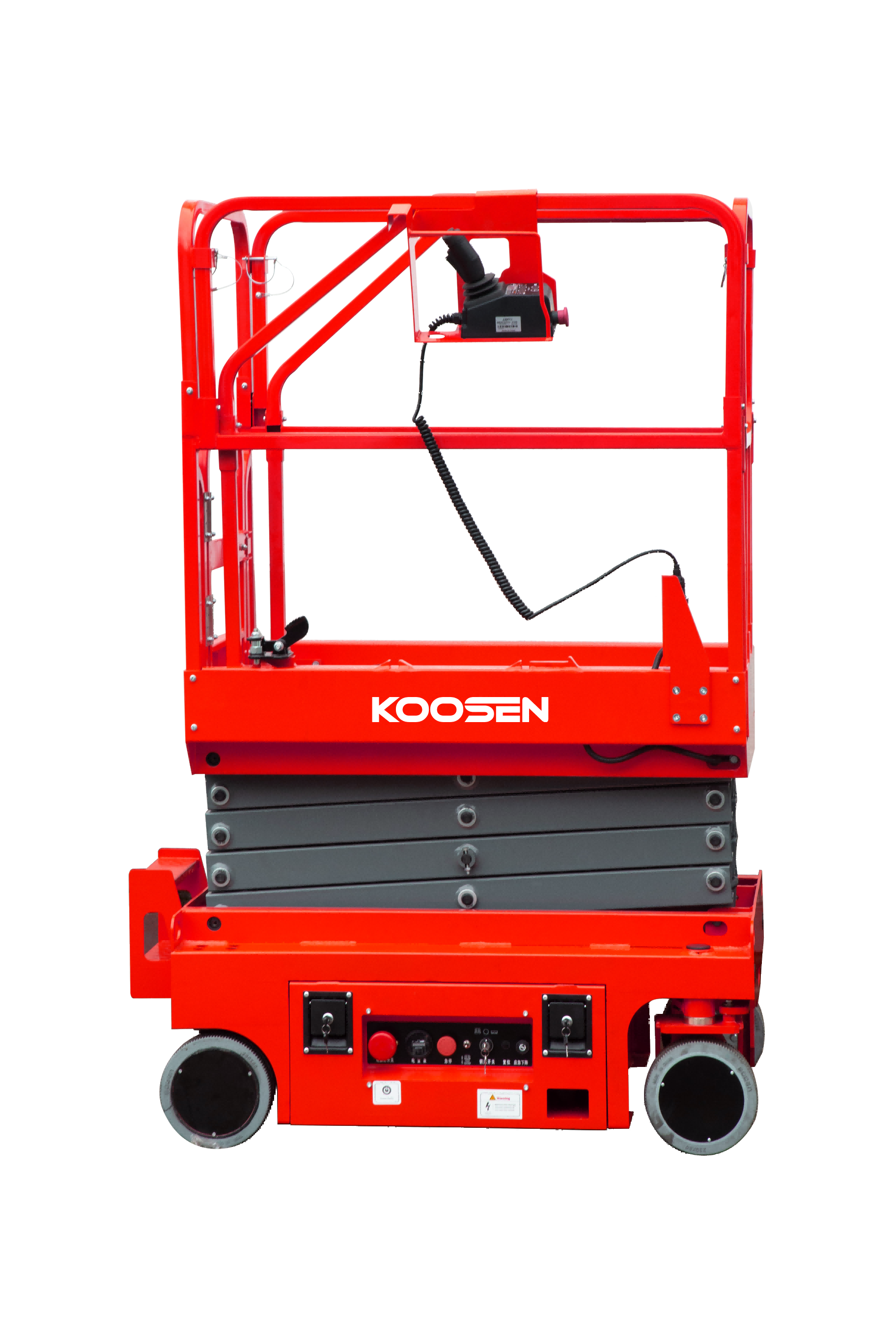

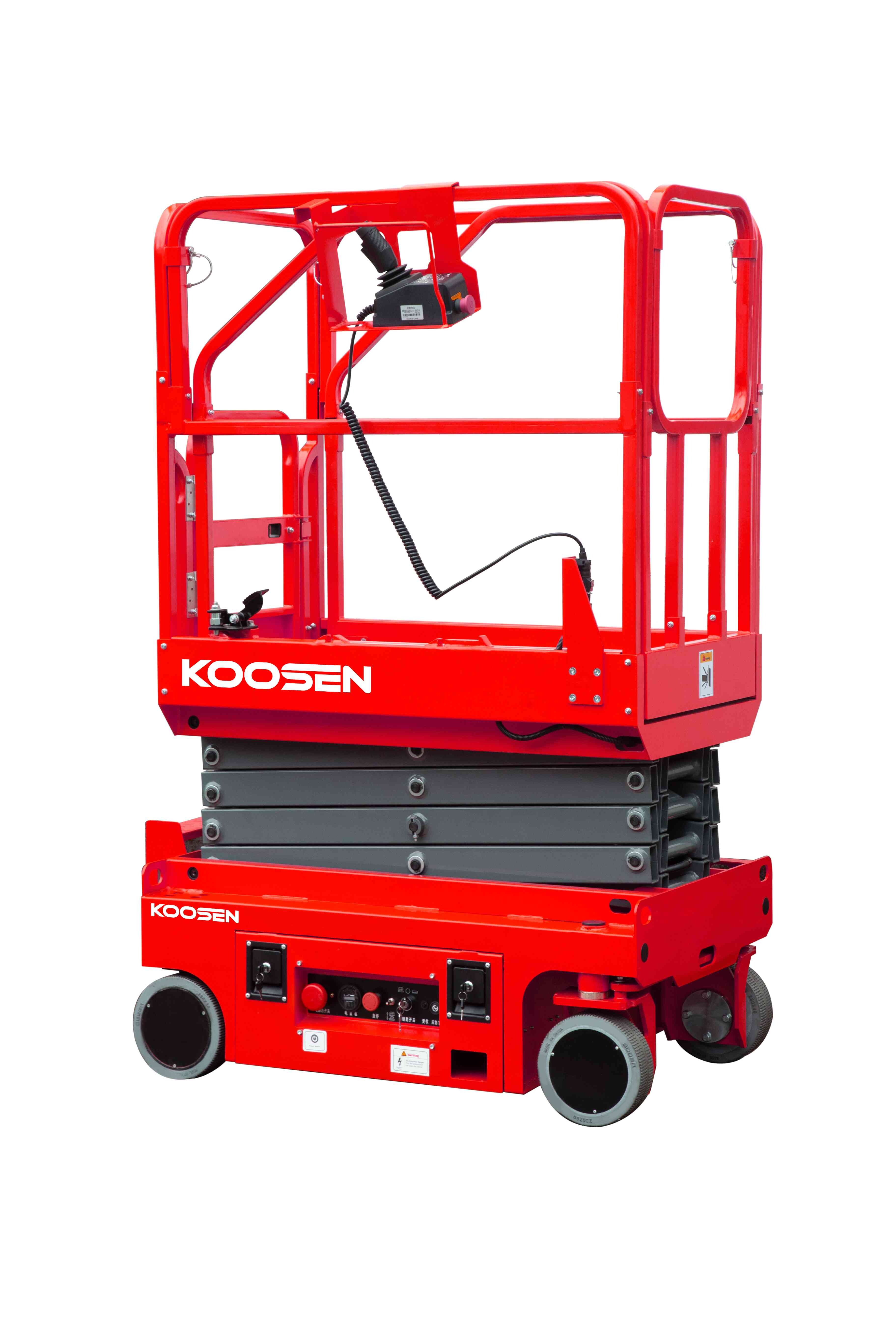

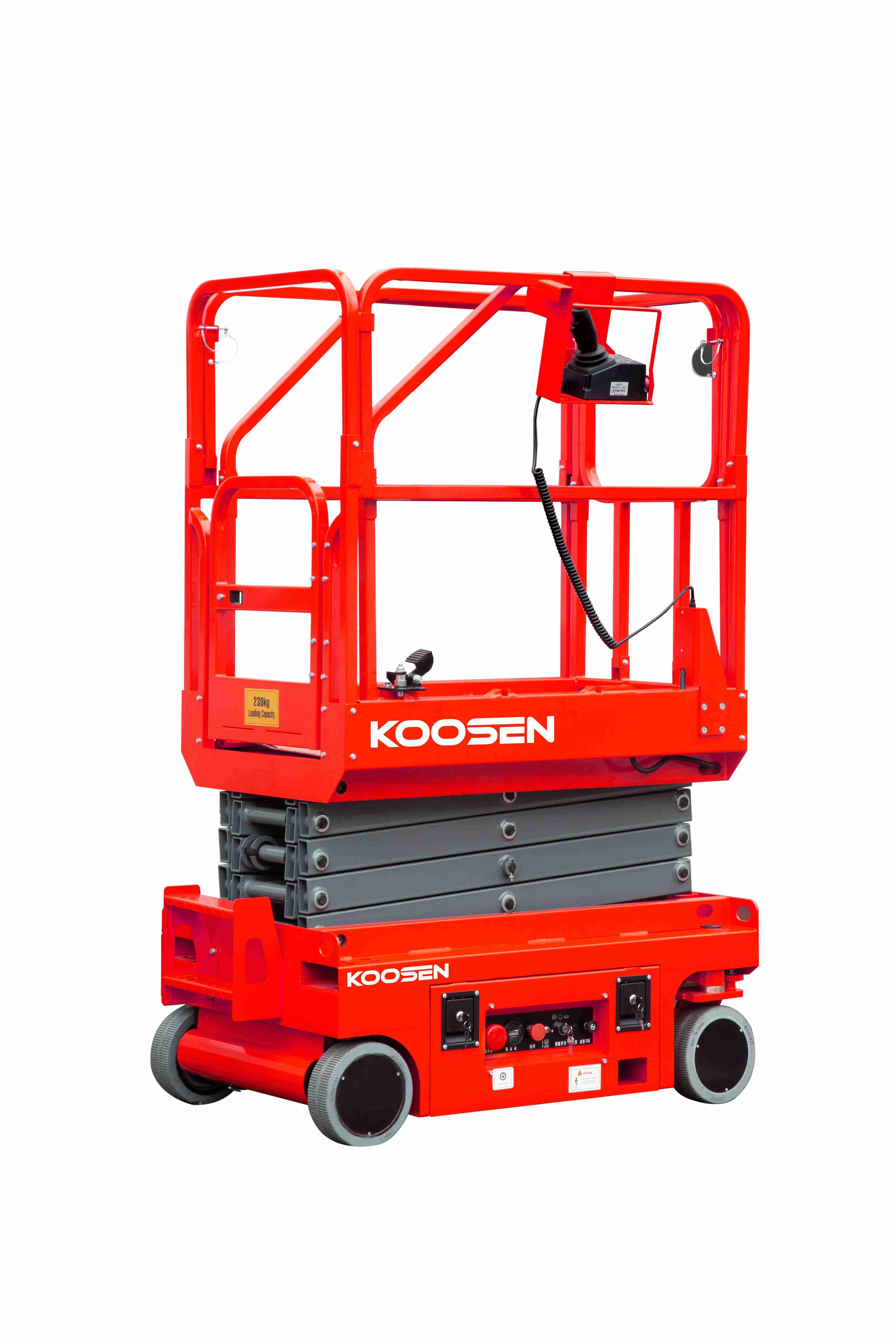

Mini Electric Scissor Lifts - Universal Steering


The Mini Electric Scissor Lift with Universal Steering is a state-of-the-art solution designed to provide exceptional mobility and ease of use in a variety of work environments. Perfect for tight spaces and intricate tasks, this lift combines the efficiency of electric power with the versatility of universal steering, ensuring smooth and precise maneuverability.


Key Features:


Compact Design: The small footprint of this lift allows for easy navigation through narrow aisles, doorways, and confined spaces, making it ideal for indoor use.

Electric Efficiency: Powered by an electric motor, this lift offers quiet, emission-free operation, making it environmentally friendly and suitable for noise-sensitive areas.

Universal Steering: The advanced universal steering system provides 360-degree maneuverability, allowing for precise positioning and effortless navigation in any direction.

Enhanced Stability: Despite its compact size, the lift features a stable and secure platform with safety rails, ensuring worker safety at various heights.

User-Friendly Controls: Intuitive control panels and ergonomic design make operation straightforward, requiring minimal training and increasing overall productivity.

Low Maintenance: Built with high-quality materials and designed for durability, this lift requires minimal maintenance, ensuring long-term reliability and cost-effectiveness.


Applications:


Indoor Maintenance and Repairs

Electrical and Lighting Installations

Painting and Decorating

Facility Management

Warehousing and Inventory Management


The Mini Electric Scissor Lift with Universal Steering combines compact design, advanced maneuverability, and efficient performance, making it an essential tool for a wide range of elevated tasks in both commercial and industrial settings.



Specification



Size


ModelJCPT0507DCJCPT0607DCJCPT6507DC
Working Height(CE/ANSI)5.0m6.00m6.50m
Platform Floor Height(CE/ANSI)3.0m4.00m4.50m
Overall Length(With Ladder)1.32m1.32m1.46m
Overall Length(Without Ladder)1.29m1.29m1.43m
Overall Width0.76m0.76m0.80m
Overall Height(Rails Up)1.83m1.92m1.96m
Overall Height(Rails Down)1.46m1.56m1.59m
Platform Size(Length×Wiidth)1.15m×0.60m1.15m×0.60m1.30m×0.60m
Ground Clearance(Stowed)0.05m0.05m0.05m
Ground Clearance(Raised)0.0150.0150.015
Wheel Base0.99m0.99m1.15m
Performance


ModelJCPT0507DCJCPT0607DCJCPT6507DC
S.W.L240kg240kg240kg
Max. Occupants222
Turning Radius(Inside)000
Travel Speed(Stowed)4.0km/h4.0km/h4.0km/h
Travel Speed(Raised)0.50km/h0.50km/h0.50km/h
Up/Down Speed25/20sec30/20sec38/25sec
Gradeability25%25%25%
Maximum working Slope1.5°/2°1.5°/2°1.5°/2°
Driving WheelsФ230×80mmФ230×80mmФ230×80mm
Power


ModelJCPT0507DCJCPT0607DCJCPT6507DC
Lifting Motor24V/0.8kW24V/0.8kW24V/0.8kW
Betteries2×12V/80Ah2×12V/80Ah2×12V/80Ah
Integrated Charger24V/12A24V/12A24V/12A
Weight


ModelJCPT0507DCJCPT0607DCJCPT6507DC
Weight(CE/ANSI)500kg530kg610kg
