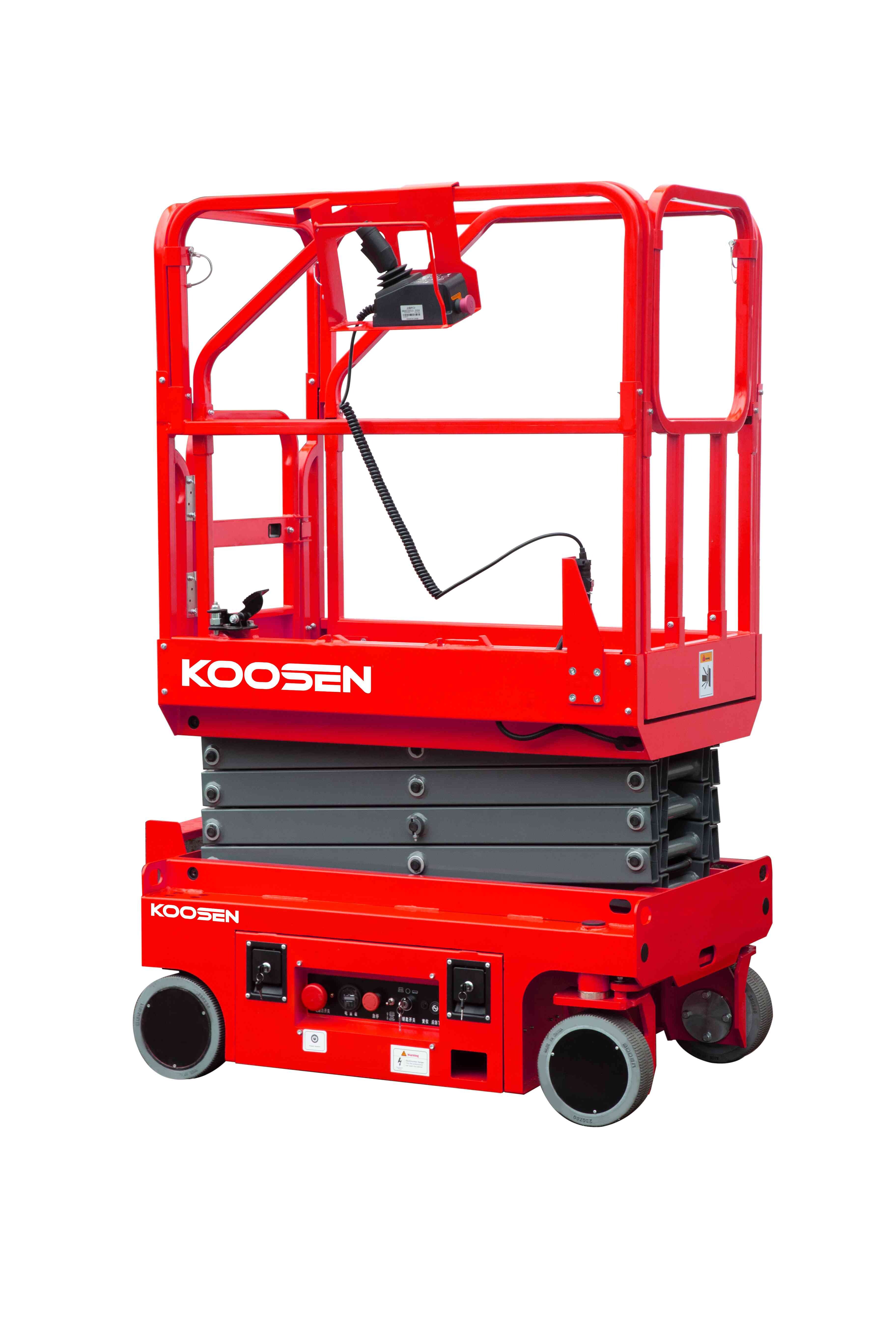

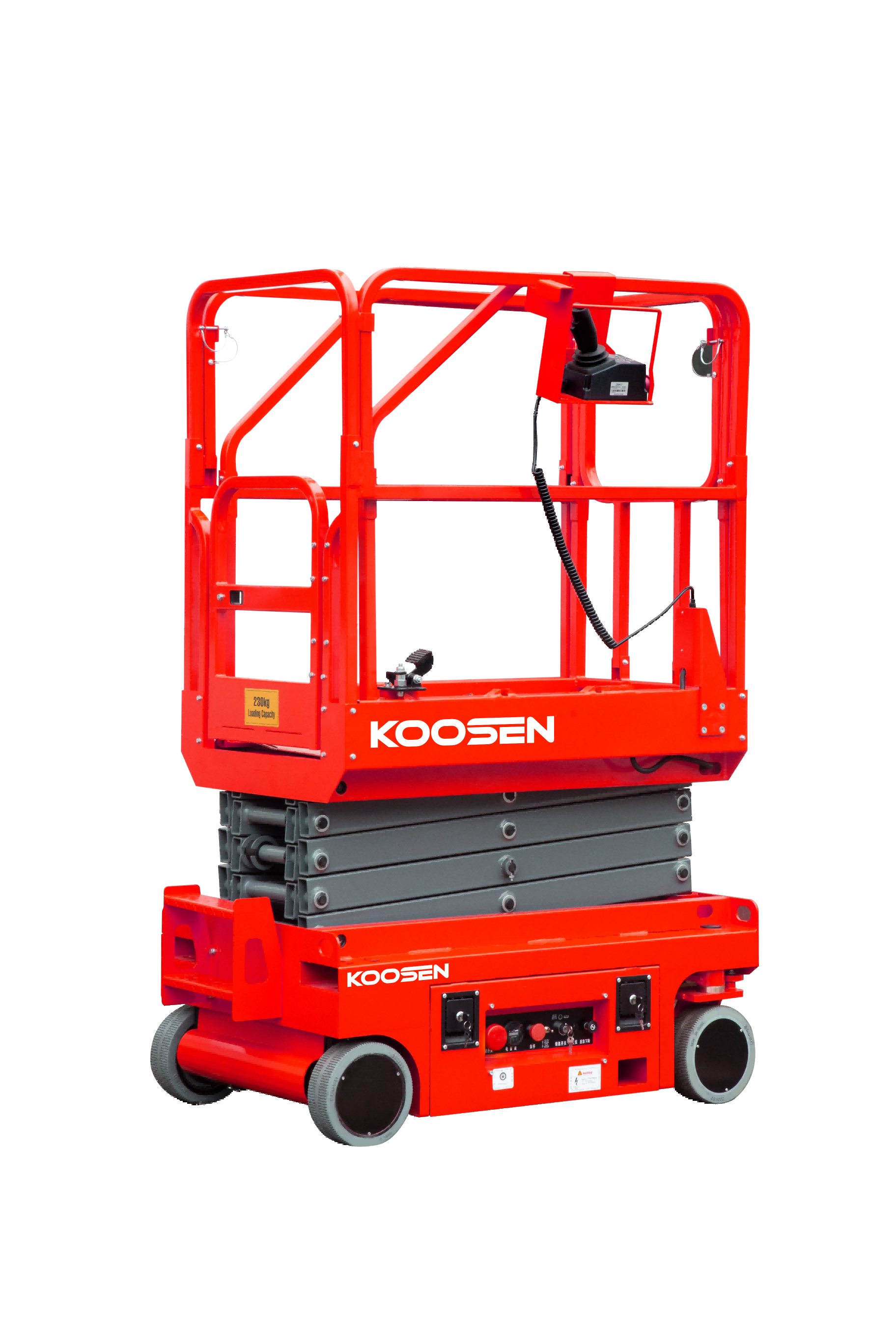

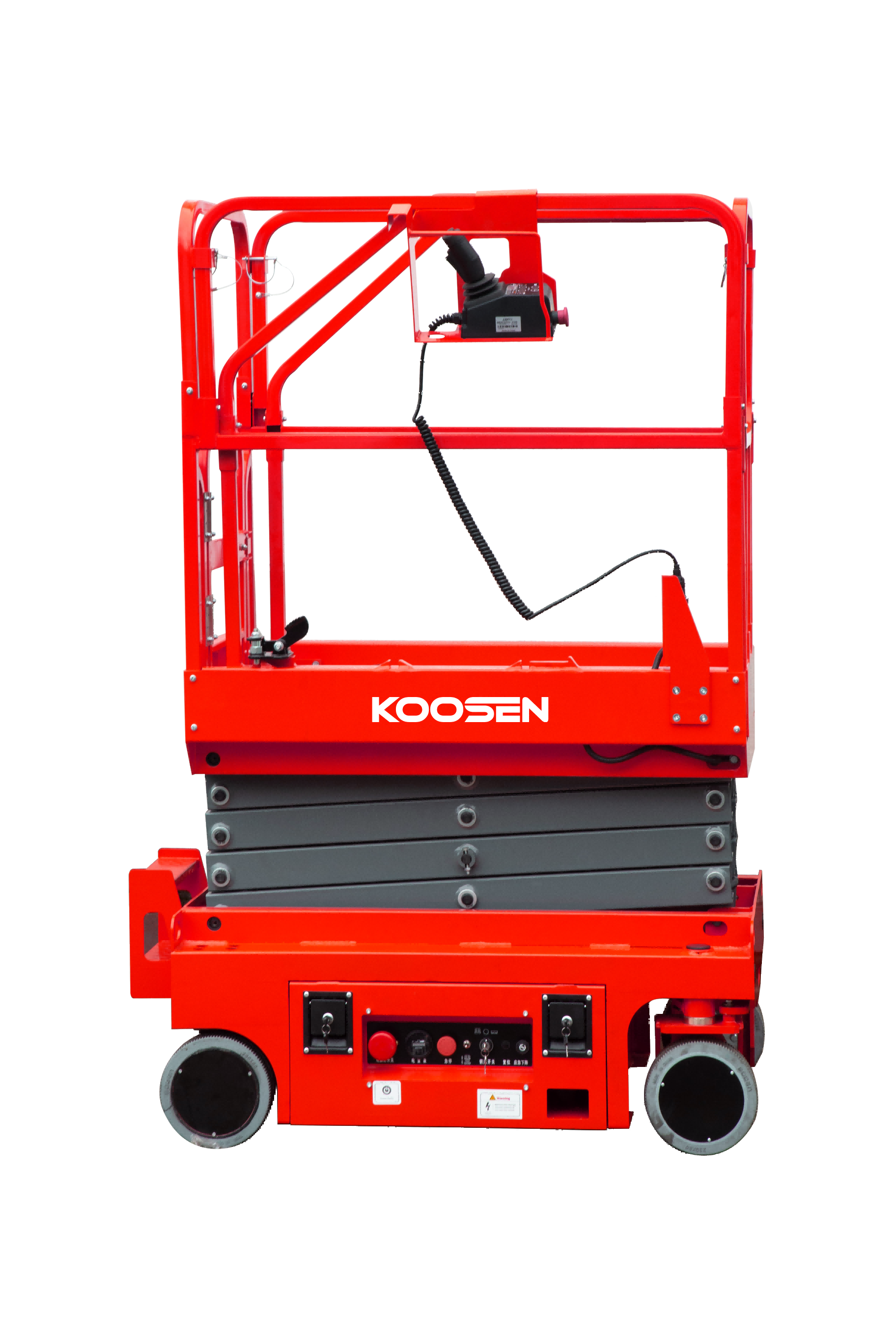

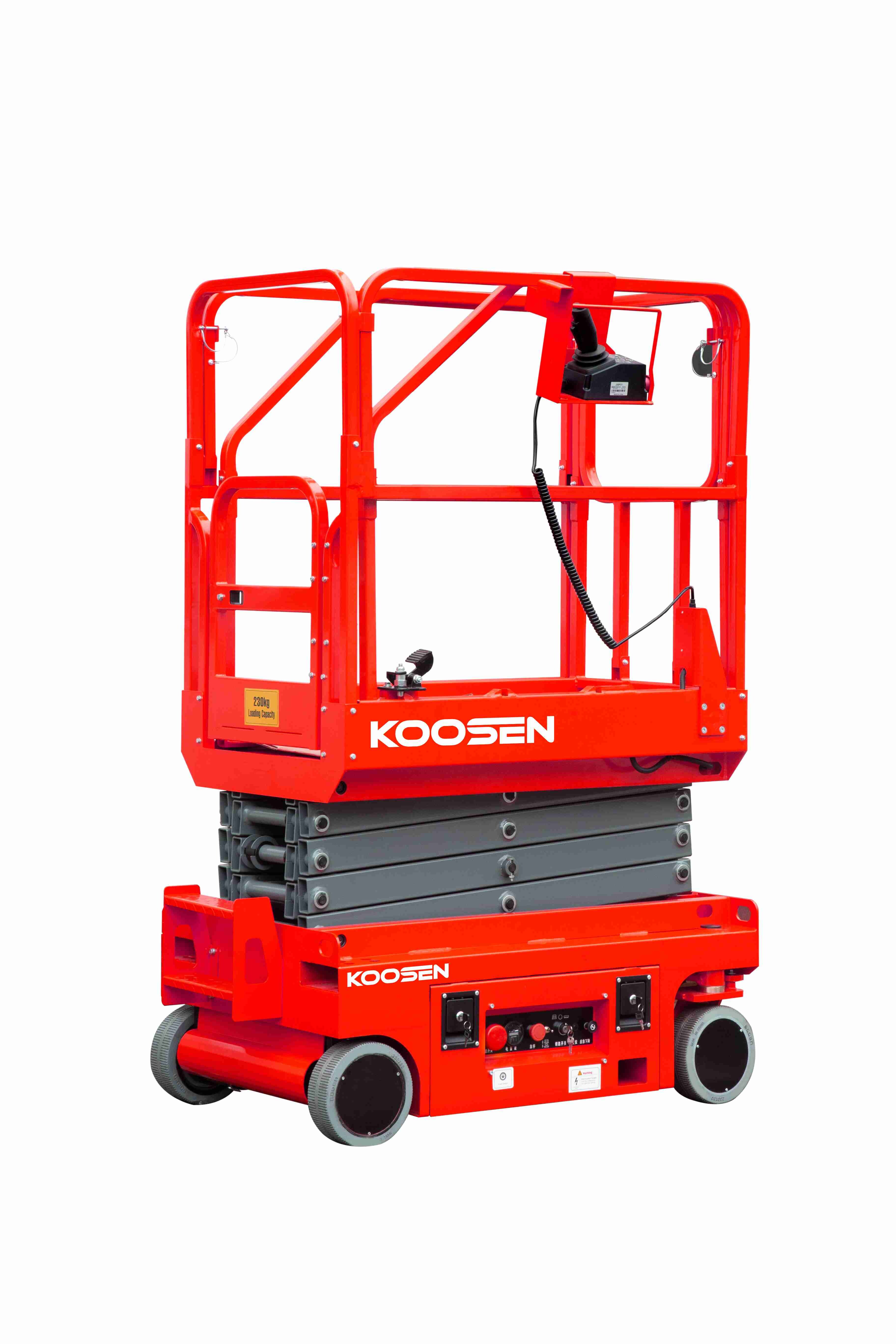

Mini Electric Scissor Lifts - Hydraulic Steering


The Mini Electric Scissor Lift with Hydraulic Steering is a versatile and efficient solution designed to provide easy access to elevated work areas. Perfect for both indoor and outdoor applications, this lift combines the power of electric operation with the precision of hydraulic steering, offering unmatched maneuverability and performance.


Key Features:


Compact and Efficient: The mini size allows for easy navigation in tight spaces, making it ideal for crowded environments and narrow aisles.

Electric Operation: Powered by an electric motor, this lift provides quiet, efficient, and eco-friendly performance, reducing noise and emissions.

Hydraulic Steering: Advanced hydraulic steering system ensures smooth and precise control, allowing for effortless maneuverability and positioning.

Stable and Safe: The lift features a robust platform with safety rails, ensuring a secure working area at various heights. Safety mechanisms like emergency stop buttons and overload protection enhance operator safety.

User-Friendly Controls: Intuitive control panels and ergonomic design make operation straightforward and comfortable for users, minimizing the learning curve.

Durable and Low Maintenance: Built with high-quality materials and designed for durability, this lift requires minimal maintenance, ensuring long-term reliability and cost-effectiveness.


Applications:


Indoor and Outdoor Maintenance

Electrical and Lighting Installations

Painting and Decorating

Facility Management

Warehousing and Inventory Management


The Mini Electric Scissor Lift with Hydraulic Steering combines compact design with powerful performance and precise control, making it an indispensable tool for a wide range of elevated tasks.



Specification



Size


ModelJCPT0507DCJCPT0607DCJCPT6507DC
Working Height(CE/ANSI)5.0m6.00m6.50m
Platform Floor Height(CE/ANSI)3.0m4.00m4.50m
Overall Length(With Ladder)1.32m1.32m1.46m
Overall Length(Without Ladder)1.29m1.29m1.43m
Overall Width0.76m0.76m0.80m
Overall Height(Rails Up)1.83m1.96m1.96m
Overall Height(Rails Down)1.46m1.56m1.59m
Platform Size(Length×Wiidth)1.15m×0.60m1.15m×0.60m1.30m×0.70m
Ground Clearance(Stowed)0.05m0.05m0.05m
Ground Clearance(Raised)0.0150.0150.015
Wheel Base0.99m0.99m1.15m
Performance


ModelJCPT0507DCJCPT0607DCJCPT6507DC
S.W.L240kg240kg240kg
Max. Occupants222
Turning Radius(Inside)1.2m1.20
Travel Speed(Stowed)4.0km/h4.0km/h4.0km/h
Travel Speed(Raised)0.50km/h0.50km/h0.50km/h
Up/Down Speed25/20sec30/20sec38/25sec
Gradeability25%25%25%
Maximum working Slope1.5°/2°1.5°/2°1.5°/2°
Driving WheelsФ230×80mmФ230×80mmФ230×80mm
Power


ModelJCPT0507DCJCPT0607DCJCPT6507DC
Lifting Motor24V/0.8kW24V/0.8kW24V/0.8kW
Betteries2×12V/80Ah2×12V/80Ah2×12V/80Ah
Integrated Charger24V/12A24V/12A24V/12A
Weight


ModelJCPT0507DCJCPT0607DCJCPT6507DC
Weight(CE/ANSI)550kg600kg700kg
